Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
7	7 54637070200 Closing cover 2003 As Required	54637070200	US $17.07
8	8 0770020200 O-ring 21,95x1,78 nbr As Required	0770020200	US $1.50
10	10 47037010000 Closing cover 85 sx 2003 As Required	47037010000	US $6.89
11	11 0770120020 O-Ring 12,00X2,00 Nbr 70 As Required	0770120020	US $2.60
12	12 0770008015 O-ring 8,00x1,5 As Required	0770008015	US $0.29
20	20 47037020000 Control flap 85 sx 03 As Required	47037020000	US $92.26
23	23 47037023000 Bearing sleeve 85 sx 2003 As Required	47037023000	US $10.57
25	25 0912050083 Ah screw din 912 m 5x8 As Required	0912050083	US $0.58
26	26 0912050163 Ah Screw Din0912-M 5X16 As Required	0912050163	US $0.58
28	28 0015050123 Hh collar screw m 5x12 ws=8 As Required	0015050123	—
	replacement
28	28 0025050126 Hh collar screw m5x12 tx30 As Required	0025050126	US $3.38
29	29 0015050203 Hh Collar Screw M5X20 Tx30 As Required	0015050203	—
	replacement
29	29 0025050206 Hh collar screw m5x20 tx30 As Required	0025050206	US $1.33
30	30 0349000050 Washer din7349-5x15x2 As Required	0349000050	US $0.65
36	36 47037036000 Driver sheet 85 sx 2003 As Required	47037036000	US $16.68
45	45 0471100010 Circlip As Required	0471100010	US $1.16
46	46 0625006087 Grooved Ball Bear. 608 2Rs C3 As Required	0625006087	US $19.19
48	48 0760082472 Shaft seal ring 8x24x7 a duo As Required	0760082472	US $8.33
49	49 54334015000 Washer 10x14x0,5 steel As Required	54334015000	US $0.39
50	50 47037050044 Centrifugal timer cpl. 03 As Required	47037050044	US $287.69
52	52 47035054026 Water pump gear 2003 As Required	47035054026	US $9.37
53	53 47035058000 Pin 2x22 As Required	47035058000	US $0.48
54	54 47035054000 Water pump shaft 85 sx 2003 As Required	47035054000	US $34.43
55	55 47035055000 Water pump wheel 85 sx 2003 As Required	47035055000	US $11.65
57	57 0603040801 Copper gasket din7603- a4x8x1 As Required	0603040801	US $0.80
58	58 47037058000 Lock screw control shaft 03 As Required	47037058000	US $1.77
59	59 47037057000 Control shaft 85 sx 03 As Required	47037057000	US $84.30
61	61 47035061000 Screw m6x8 As Required	47035061000	US $4.42
64	64 56509064100 Self Locking Nut M6 10.9 As Required	56509064100	US $1.04
65	65 47037065000 Control lever 85 sx 2003 As Required	47037065000	US $16.05
66	66 54637066000 Overload spring As Required	54637066000	US $5.20
67	67 47037067000 Spring sleeve 85 sx 2003 As Required	47037067000	US $5.56
68	68 47037068000 Bearing sleeve 85 sx 2003 As Required	47037068000	US $6.63
75	75 0007050180 Cylinder pin din 7-5x18(m6) As Required	0007050180	US $0.27
85	85 47037085000 Stop sheet 85 sx 2003 As Required	47037085000	US $2.67
92	92 47037092000 Gasket rubber top 85 sx As Required	47037092000	US $19.26
93	93 47037093000 Gasket rubber bottom 85 sx As Required	47037093000	US $5.63
95	95 47037095044 Connect. rod cpl. 85 sx 03 As Required	47037095044	US $26.74
98	98 54637098100 Ball bearing 626llbc3/5k As Required	54637098100	US $12.56

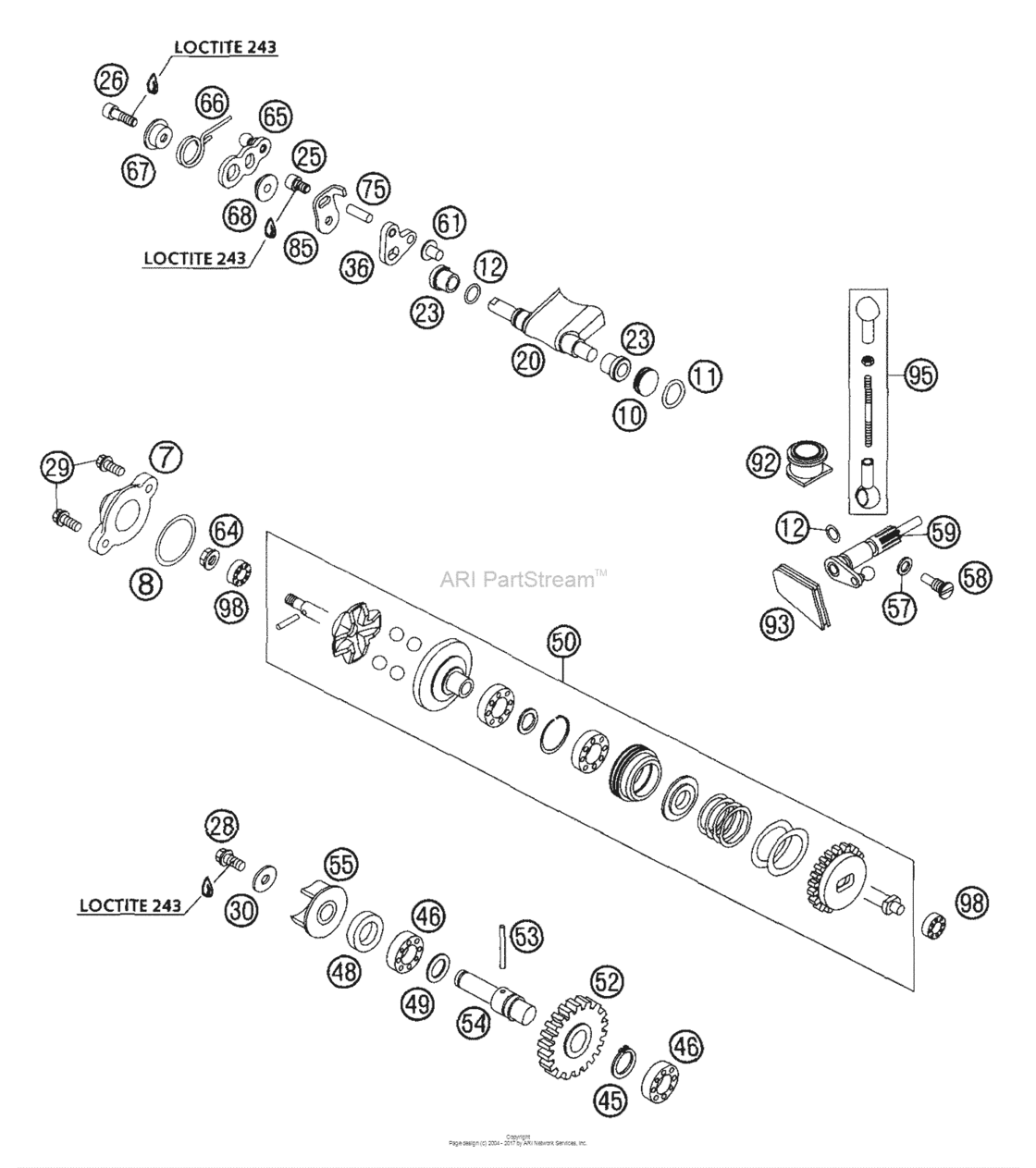

Exhaust Control Diagram KTM 85 85 SX US/EU 18108065-940771

Exhaust Control Diagram KTM 85 85 SX US/EU 18108065-940771
