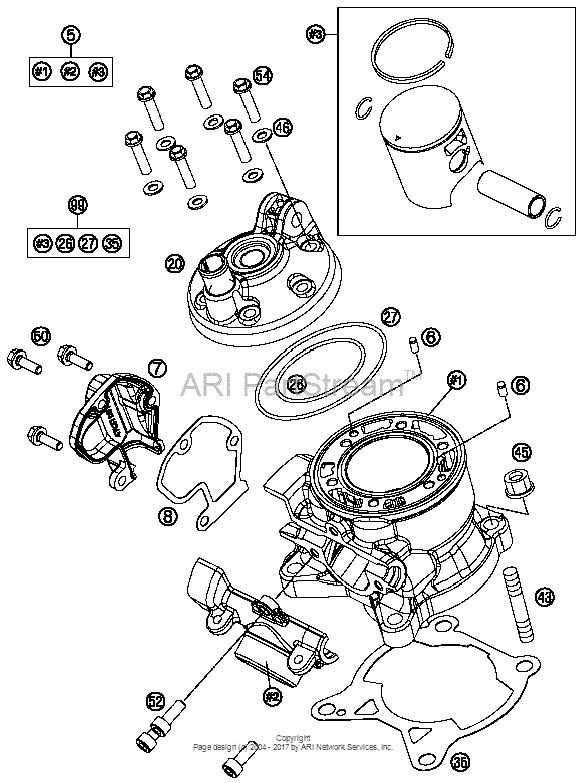

Cylinder Diagram KTM 85 85 SX
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
5
|
5
47130038000 Cylinder + Piston 85 SxAs Required |
47130038000 |
US $854.86 |
||
6
|
6
0402040980 Needle Rol.din5402 Nrb 4X9,8As Required |
0402040980 |
US $1.77 |
||
7
|
7
47137007000 Control CoverAs Required |
47137007000 |
US $19.84 |
||
8
|
8
47137008000 Gasket Control CoverAs Required |
47137008000 |
US $4.74 |
||
20
|
20
47130006000 Cylinder Head 85 SxAs Required |
47130006000 |
US $137.80 |
||
26
|
26
0770540020 O-ring 54x2 vitonAs Required |
0770540020 |
US $11.29 |
||
27
|
27
0770800021 O-Ring 80,00X2,00 VitonAs Required |
0770800021 |
US $7.48 |
||
35
|
35
47030035020 Cylinder base gasket 0,20mmAs Required |
47030035020 |
US $6.55 |
||
35
|
35
47030035030 Cylinder base gasket 0,30mmAs Required |
47030035030 |
US $8.19 |
||
35
|
35
47030035000 Cylinder base gasket 0,50mmAs Required |
47030035000 |
US $8.89 |
||
43
|
43
0835080240 Stud din 0835-m 8x24As Required |
0835080240 |
US $2.53 |
||
45
|
45
46030045000 Collar nut m8 ws=10As Required |
46030045000 |
US $6.94 |
||
46
|
46
0603061001 Cu-Seal Ring Din7603-6X10X1As Required |
0603061001 |
US $2.24 |
||
50
|
50
0015050123
Hh collar screw m 5x12 ws=8
As Required |
0015050123 |
— | ||
replacement | |||||
50
|
50
0025050126 Hh collar screw m5x12 tx30As Required |
0025050126 |
US $1.87 |
||
52
|
52
0012060164 Ah screw din6912 m6x16 slAs Required |
0012060164 |
US $0.92 |
||
54
|
54
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
99
|
99
00050000204 Piston Kit Gr.i 85 Sx 06-1506-14, As Required |
00050000204 |
US $251.86 |
||
99
|
99
00050000205 Piston Kit Gr.ii 85 Sx 03-1503-13, As Required |
00050000205 |
US $175.20 |
