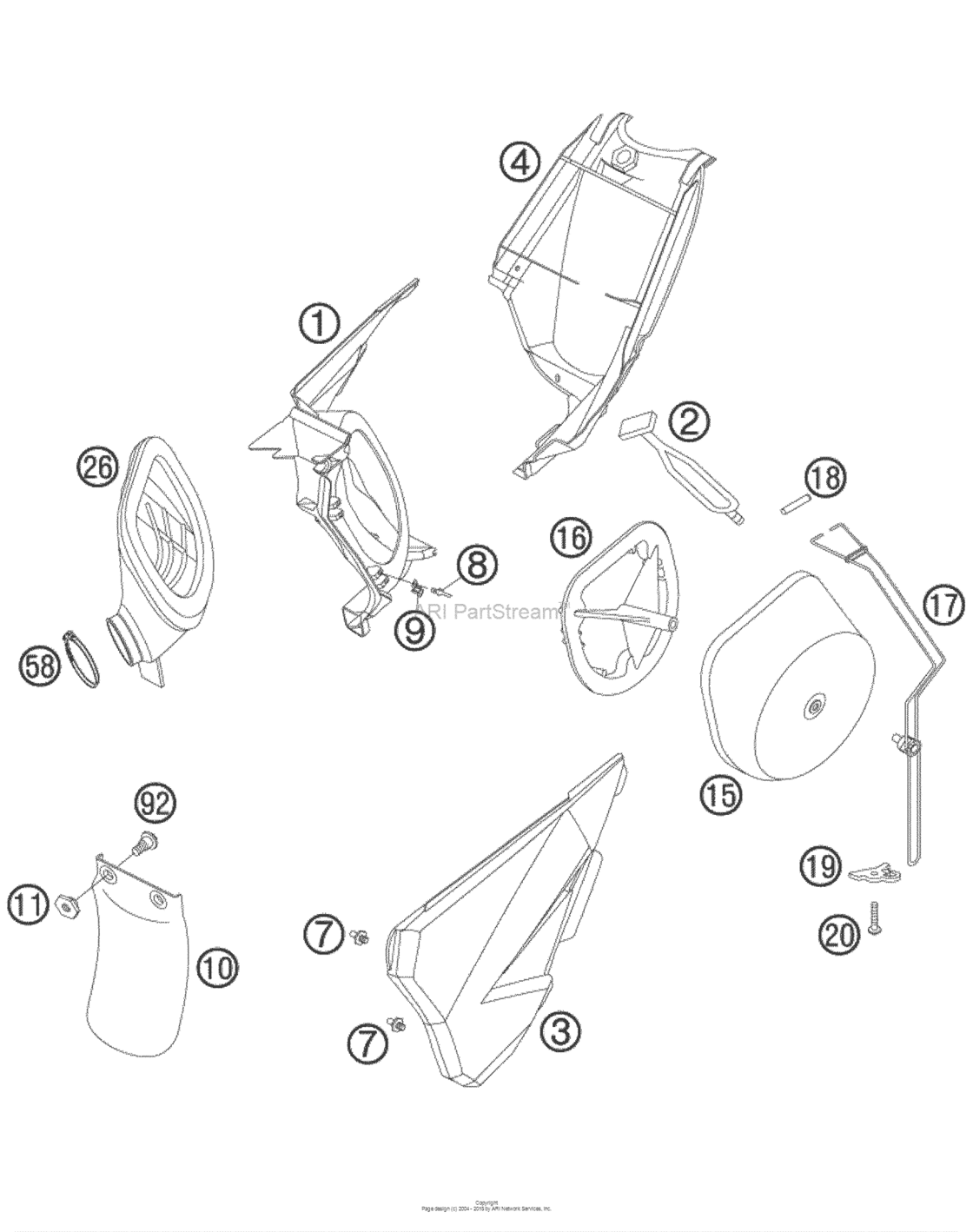

Air Filter Box Diagram KTM 85 85 XC
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47006001051G
Filter Wall 105 Sx
2009 |
47006001051G |
— | ||
|
2
|
2
50303018000 Rubber l=145mm2009 |
50303018000 |
US $6.14 |
||
|
3
|
3
47006003000G
Filter Box Cover 85 Xc
2009 |
47006003000G |
— | ||
|
4
|
4
47006001052 Rear part filter box 85 sx 0303 |
47006001052 |
US $30.65 |
||
|
7
|
7
54806008051 Quick release-nipple 0303 |
54806008051 |
US $2.04 |
||
|
8
|
8
54806108052 Blind rivet 3,3x9,7 grooved 0404 |
54806108052 |
US $1.21 |
||
|
9
|
9
54806008050 Quick release-spring hanger04 |
54806008050 |
US $1.33 |
||
|
10
|
10
46006010000 Splash protector 60/65 sx '98'98 |
46006010000 |
US $18.14 |
||
|
11
|
11
47006010050 Screw connection splash shield'98 |
47006010050 |
US $4.59 |
||
|
15
|
15
59006015000 Air filter racing 20012001 |
59006015000 |
US $40.80 |
||
|
16
|
16
54806016000 Filter carrier 2-stroke 0404 |
54806016000 |
US $33.98 |
||
|
17
|
17
50306017000 Filter support cpl.2-stroke'98'98 |
50306017000 |
US $28.54 |
||
|
18
|
18
50306018000 Filter support bush 125-380'98'98 |
50306018000 |
US $7.33 |
||
|
19
|
19
47006019000 Fasten. device filter support'98 |
47006019000 |
US $4.83 |
||
|
20
|
20
0017060303 Special screw t60 6x30 ws=6'98 |
0017060303 |
US $2.24 |
||
| replacement | |||||
|
20
|
20
0017060305 Special Screw K60X30 Ws=6'98 |
0017060305 |
US $2.24 |
||
|
26
|
26
47006026000 Carb. connecting boot 85 sx 0303 |
47006026000 |
US $72.93 |
||
|
58
|
58
78006027000 Hose Clamp 45-65Mm03 |
78006027000 |
US $3.52 |
||
|
92
|
92
59001092050 Special Screw M6X12,5 Ws=8WS=8 |
59001092050 |
US $2.35 |
||
