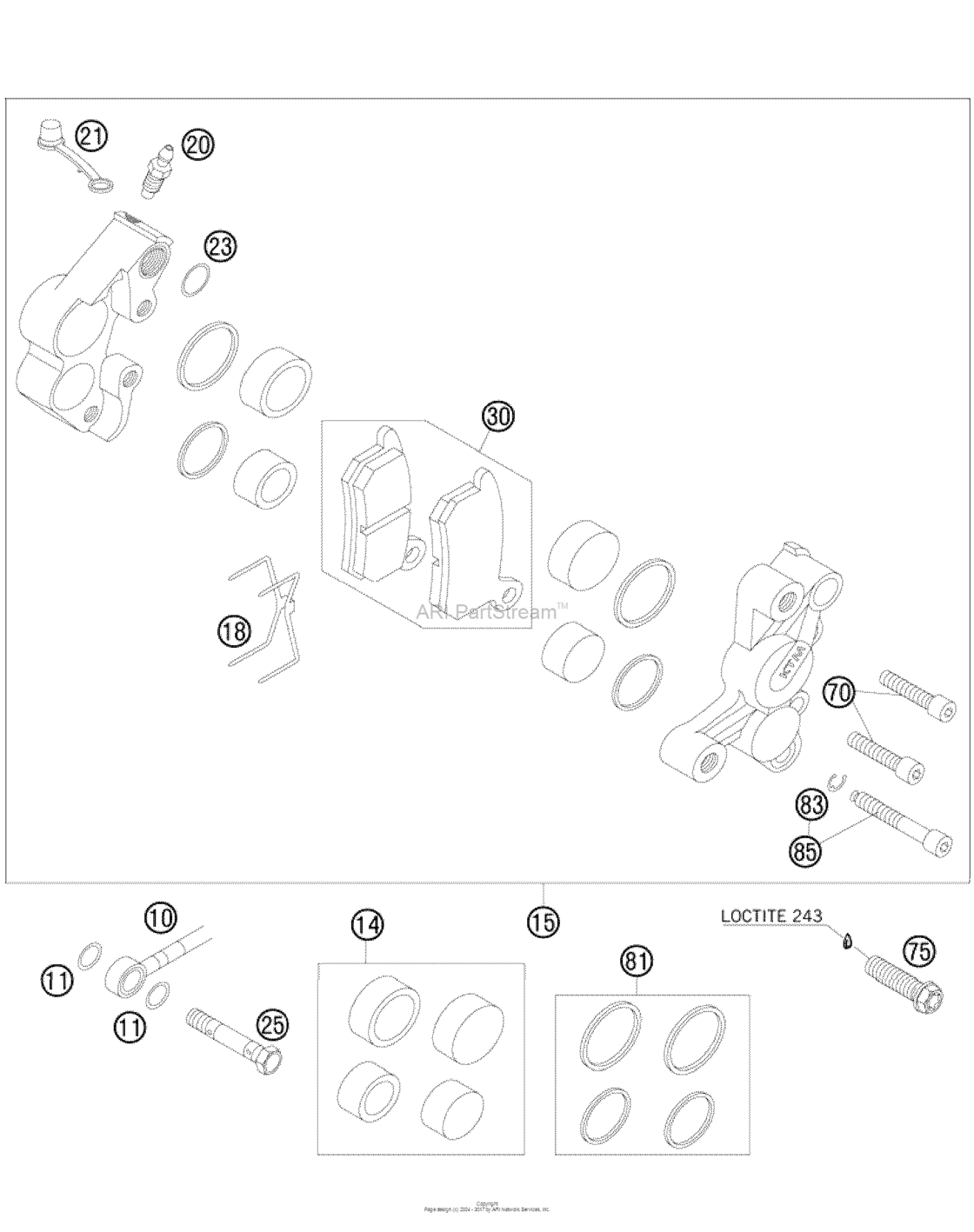

Brake Caliper Front Diagram KTM 85 85 XC
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10
|
10
47013010000
Brake hose front 85 sx 03
03 |
47013010000 |
— | ||
| replacement | |||||
|
10
|
10
47013010100 HOSE-BRAKE 85 SX 201203 |
47013010100 |
US $126.97 |
||
|
11
|
11
0770080019 O-ring 8,00x1,00 formula03 |
0770080019 |
US $2.64 |
||
|
14
|
14
46113019050 Repair kit brakepiston03 |
46113019050 |
US $23.22 |
||
|
15
|
15
47013015000
Brake caliper fr. cpl.85 sx 03
03 |
47013015000 |
— | ||
| replacement | |||||
|
15
|
15
47013025000 Hollow screw brake cylinder 0303 |
47013025000 |
US $12.46 |
||
|
18
|
18
46113018000 Retaining spring 65 sx03 |
46113018000 |
US $14.54 |
||
| replacement | |||||
|
18
|
18
46213018000 Retaining Spring 65 Sx03 |
46213018000 |
US $7.38 |
||
|
20
|
20
47013020000 Bleeder screw m603 |
47013020000 |
US $9.20 |
||
|
21
|
21
47013021000 Cap for bleeder screw03 |
47013021000 |
US $5.95 |
||
|
23
|
23
0770100019 O-ring 10x1 epdm03 |
0770100019 |
US $5.51 |
||
|
25
|
25
47013125000 Hollow screw m8x38,803 |
47013125000 |
US $15.11 |
||
|
30
|
30
46113030000 Brake pad set front 20022002 |
46113030000 |
US $39.22 |
||
|
70
|
70
0912060283 Ah screw din0912-m 6x282002 |
0912060283 |
US $1.19 |
||
|
75
|
75
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.89 |
||
|
81
|
81
46113019000 Repair kit seal ring 20022002 |
46113019000 |
US $20.84 |
||
|
83
|
83
0799040009 Tab washer din6799-ra 4,02002 |
0799040009 |
US $0.87 |
||
|
85
|
85
46113125000 Ah screw + circlip 20022002 |
46113125000 |
US $14.01 |
||
