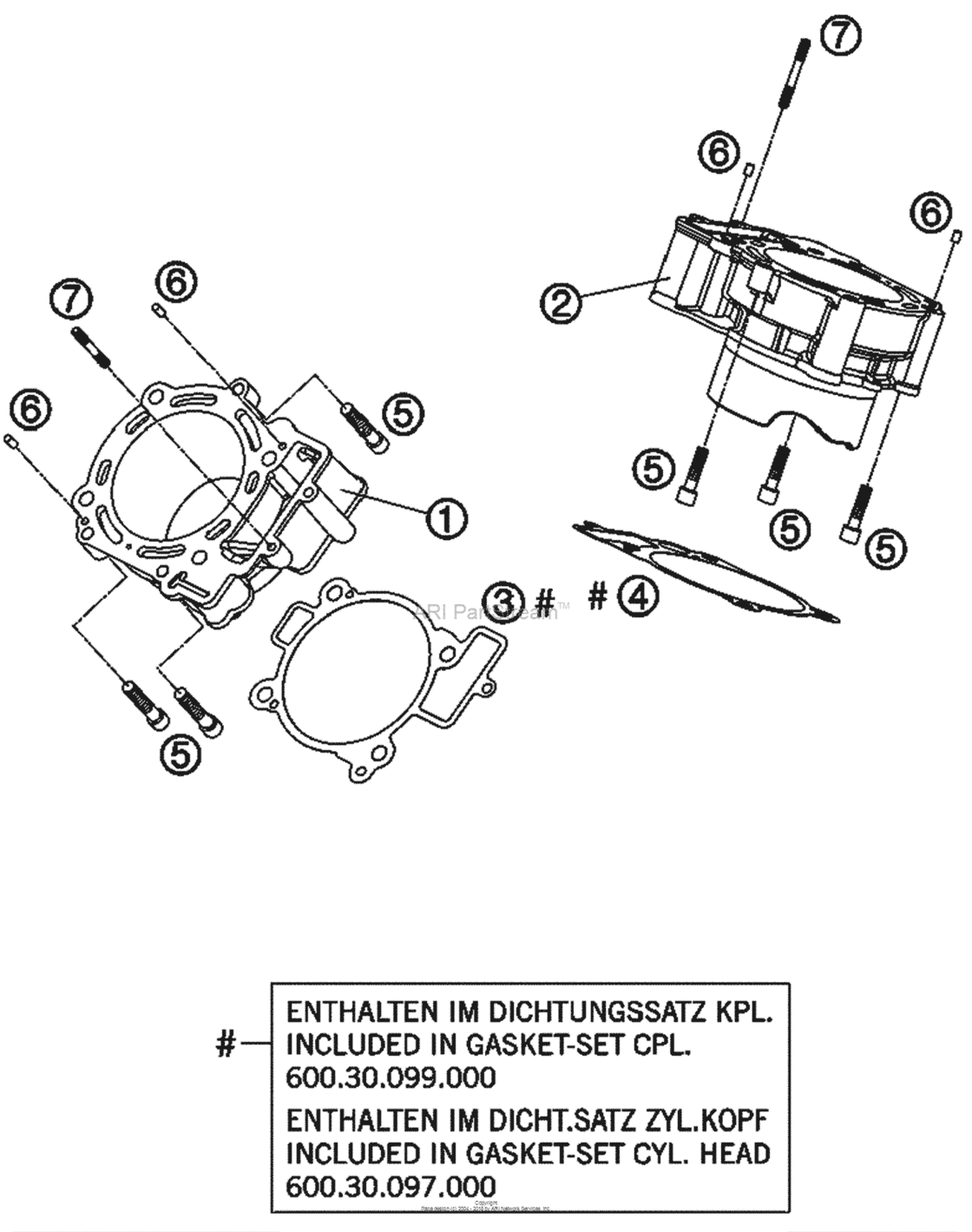

Cylinder Diagram KTM 950 950 Adventure
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 950
- Model
- 950 Adventure
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60030005200
Cylinder And Piston Cpl. Front
As Required |
60030005200 |
— | ||
| replacement | |||||
|
1
|
1
6003003830023 Cylinder and piston cpl. frontAs Required |
6003003830023 |
US $1,048.10 |
||
|
2
|
2
60030105200 Cylinder rear d=100 05As Required |
60030105200 |
US $519.57 |
||
|
3
|
3
60030035000 Cylinder-base gasket fr 0,35mmAs Required |
60030035000 |
US $25.91 |
||
|
4
|
4
60030135000 Cylinder-base gasket rr 0,35mmAs Required |
60030135000 |
US $25.14 |
||
|
5
|
5
0912080353 Ah screw din0912-m 8x35As Required |
0912080353 |
US $1.65 |
||
|
6
|
6
0474050100 Grooved pin din1474 5x10As Required |
0474050100 |
US $2.60 |
||
|
7
|
7
60030043020 Stud m6x47 03As Required |
60030043020 |
US $3.33 |
||
