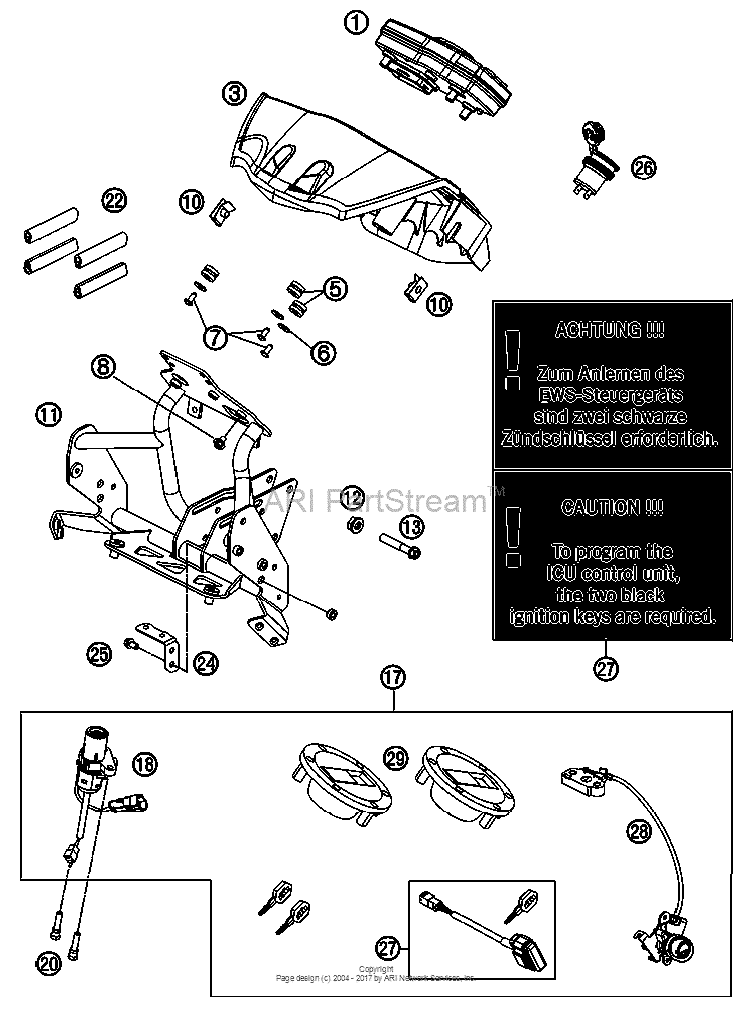

Instruments, Lock System Diagram KTM 990 990 Adventure Dakar
- Year
- 2011
- Sales region
- US/EU
- Model
- 990 Adventure Dakar
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60114169200
Speedometer 10
10 |
60114169200 |
— | ||
| replacement | |||||
|
1
|
1
60114169300 Speedometer10 |
60114169300 |
US $482.95 |
||
|
3
|
3
60114070200 Instruments cover abs 0909 |
60114070200 |
US $62.32 |
||
|
5
|
5
58214069051 Rubber Grommet 16X10,8X3 0202 |
58214069051 |
US $4.52 |
||
|
6
|
6
0021050003 Washer din9021-a 5,302 |
0021050003 |
US $1.29 |
||
|
7
|
7
0081050121 Screw for plastic k50x12 t20T20 |
0081050121 |
US $1.19 |
||
|
8
|
8
0024060106 Hh collar screw m6x10 tx30TX30 |
0024060106 |
US $4.35 |
||
|
10
|
10
54603048100 Range Change Metal Nut M6TX30 |
54603048100 |
US $5.27 |
||
|
11
|
11
60114010000 Cockpit support 0606 |
60114010000 |
US $428.09 |
||
|
12
|
12
54310086200 Self Locking Nut M8 10.910.9 |
54310086200 |
US $1.56 |
||
|
13
|
13
0025080456 Hh collar screw m8x45 tx40TX40 |
0025080456 |
US $3.04 |
||
|
17
|
17
60111066044 Lock system 990 adv. 0909 |
60111066044 |
US $759.29 |
||
|
18
|
18
60111066000 Ignition Lock09 |
60111066000 |
US $572.17 |
||
|
20
|
20
60011064000 Tamperproof screw f. ign. lock09 |
60011064000 |
US $3.67 |
||
|
22
|
22
60114010070 Edge protector 14x9,5x66 mm 0606 |
60114010070 |
US $2.65 |
||
|
24
|
24
60103001166 Support rollover sensor 0606 |
60103001166 |
US $22.76 |
||
|
25
|
25
0025060106 Hh collar screw m6x10 tx30TX30 |
0025060106 |
US $1.58 |
||
|
26
|
26
60111042100 SocketTX30 |
60111042100 |
US $36.62 |
||
|
27
|
27
62611021000
Immobilizer 990 sm 08
TX30 |
62611021000 |
— | ||
|
28
|
28
60107050000 Seat LockTX30 |
60107050000 |
US $263.01 |
||
|
29
|
29
60007108000 Tank PlugTX30 |
60007108000 |
US $369.55 |
||
