Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 6013602014423 Cylinder head front cpl. 09 09	6013602014423	US $1,248.11
2	2 60030036000 Cylinder head gasket 0,5 101mm 09	60030036000	US $55.79
3	3 0835080165 Stud m 8x16 10.9 10.9	0835080165	US $2.16
4	4 51010086100 Self locking nut m 8 cu 10.9	51010086100	US $1.51
5	5 61005005000 Exhaust gasket 05 05	61005005000	US $8.52
6	6 61230045000 Cap Nut M6 Stainless Steel 05	61230045000	US $0.90
7	7 0125060003 Washer Din0125-A 6,4 05	0125060003	US $0.37
8	8 61036023100 Vacuum conection 2006 2006	61036023100	US $10.10
9	9 0025060106 Hh collar screw m6x10 tx30 TX30	0025060106	US $1.58
10	10 0603061001 Cu-Seal Ring Din7603-6X10X1 TX30	0603061001	US $2.64
11	11 60036026101 Valve giude exhaust TX30	60036026101	US $25.26
12	12 60036025101 Valve giude intake TX30	60036025101	US $9.69
13	13 60036078200 Collar nut m 10 ws=13 05 WS=13 05	60036078200	US $2.41
14	14 0402050980 Needle roller din5402 5x9,8 WS=13 05	0402050980	US $0.80
15	15 60036078050 Shim 10,2x19x1,5mm 05 05	60036078050	US $3.89
16	16 0912060255 Ah screw din0912-m 6x25 10.9 10.9	0912060255	US $0.65
17	17 0984080305 Ah screw din7984-m 8x30 10.9 10.9	0984080305	US $0.58
18	18 58030010200 Screw In Nozzle M20X1,5 10.9	58030010200	US $8.82
19	19 0908120153 Plug din0908-m12x1,5 10.9	0908120153	US $3.81
20	20 58038022000 Cu-Seal Ring Din7603-12X18X1,5 10.9	58038022000	US $1.97
21	21 61036044000 Rubbersleeve intake flange 05 05	61036044000	US $37.57
22	22 61036048000 Hose clamp gemi 66mm 05 05	61036048000	—
	replacement
22	22 61236048000 Hose clamp gemi 66 / 1 05	61236048000	US $9.47
23	23 61036047000 Hose clamp gemi 63mm 05 05	61036047000	US $7.46
24	24 0770298178 O-ring 29,87x1,78 viton 05	0770298178	US $1.46
25	25 60136075100 Insert spark-plug shaft 05	60136075100	US $25.26
26	26 60036099000 Valve cover gasket set fr+rr 05	60036099000	US $41.04
28	28 6003605210023 Valve cover front 05	6003605210023	US $65.89
29	29 60036052020 Collar screw m 6 ws=10 03 WS=10 03	60036052020	US $2.09
31	31 60038082000 Angle connector lc8 03 03	60038082000	US $16.81
32	32 0770080020 O-ring 8x2 silicone 03	0770080020	US $0.66
33	33 60038091100 Oil-pressure switch lc8 04 04	60038091100	US $11.10
34	34 0603100141 Copper Gasket Din7603-10X14X1 04	0603100141	US $2.24
35	35 0125080003 Washer din0125-a 8,4 04	0125080003	US $2.02
36	36 60038082050 Bracket F. Efi-Plug 04	60038082050	—
	replacement
36	36 69006015050 Bracket f. efi-plug 04	69006015050	US $6.04
37	37 0009050106 Ejot Spiral Screw Sf M5X10-K 04	0009050106	US $2.60
40	40 60036023100 Vacuum conection m6/0,5mm 04	60036023100	US $28.76
99	99 60030097000 Gasket set cyl. head kpl. 03 03	60030097000	US $274.89

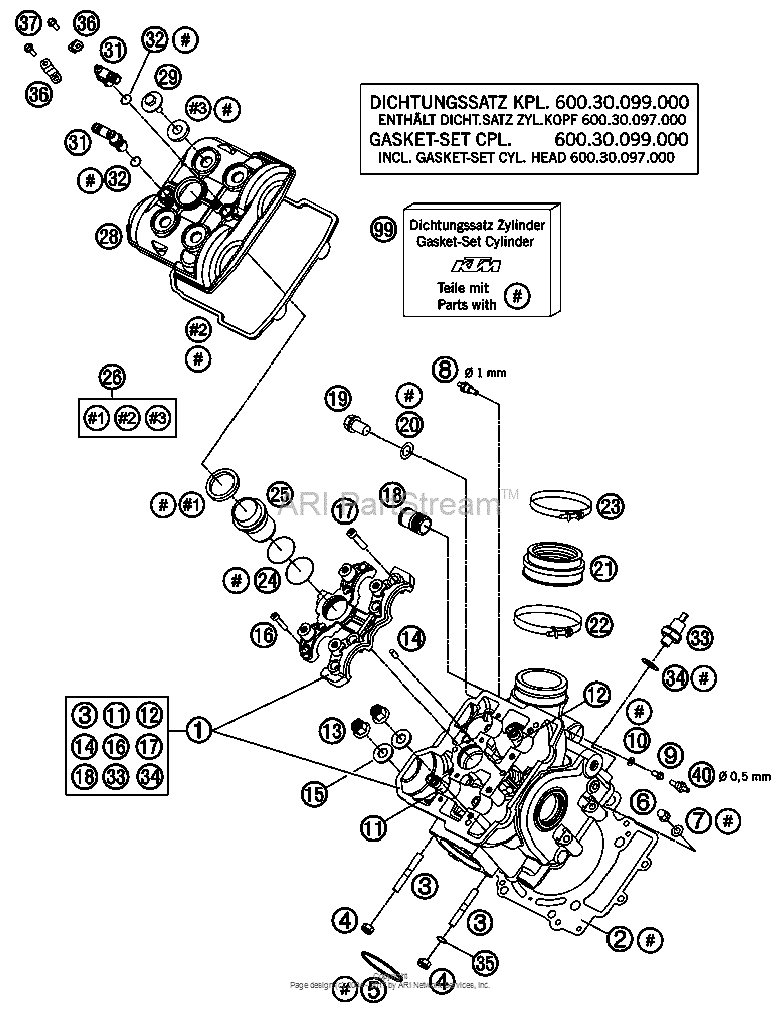

Cylinder Head Front Diagram KTM 990 990 Adventure US/EU 18109559-940842

Cylinder Head Front Diagram KTM 990 990 Adventure US/EU 18109559-940842
