	Description	OEM Part #	Price
1	1 14187E2101 Fork ktm 990 sm-r 2009 2009	14187E2101	US $2,820.86
3	3 5900103830001S Handlebar clamp 28mm 07 07	5900103830001S	US $24.51
4	4 0912080303 Ah Screw Din0912-M 8X30 07	0912080303	US $1.50
5	5 0035080306 Ah-collar screw m8x30 isa45 07	0035080306	US $2.57
6	6 0035080356 Ah-collar screw m8x35 isa45 07	0035080356	US $2.92
7	7 5900103920001S Handlebar support 28mm 07 07	5900103920001S	US $68.12
8	8 56401042000 Washer 10,5x32x2 07	56401042000	US $4.71
9	9 56401040000 Rubber bushing 07	56401040000	US $6.73
10	10 56401041100 Spacer tube 10,2x12x44 07	56401041100	US $5.25
11	11 0982100003 Self lock.nut din0982-m10 high 07	0982100003	US $2.35
12	12 54801036200 Steer.head screw m20x1,5 sw=27 07	54801036200	US $12.72
13	13 6250103402633S Top triple clamp 07	6250103402633S	US $249.65
14	14 61001086000 Steering head cover 05 05	61001086000	US $14.04
15	15 54601184000 Stearing head gasket top 05	54601184000	US $7.74
16	16 54201081100 Tapered Roller Bearing Cpl. 06 06	54201081100	US $53.18
17	17 54601084100 O-Ring Support W. Sealing Lip 06	54601084100	US $21.28
	replacement
17	17 77701084000 O-Ring Support W. Sealing Lip 06	77701084000	US $21.15
18	18 6250103202633S Bottom triple clamp cpl. 06	6250103202633S	US $330.77
19	19 60001033000 Fork tube lc8 adv 03 03	60001033000	US $60.45
20	20 0934080003 Hexagon Nut Din0934-M 8 03	0934080003	US $3.26
21	21 0933080303 Hh screw din0933-m 8x30 03	0933080303	US $1.19
27	27 0984100703 Ah screw din6912-m10x70 03	0984100703	US $6.92
99	99 00050000922 Handlebar Support Kit AS REQUIRED	00050000922	US $128.06

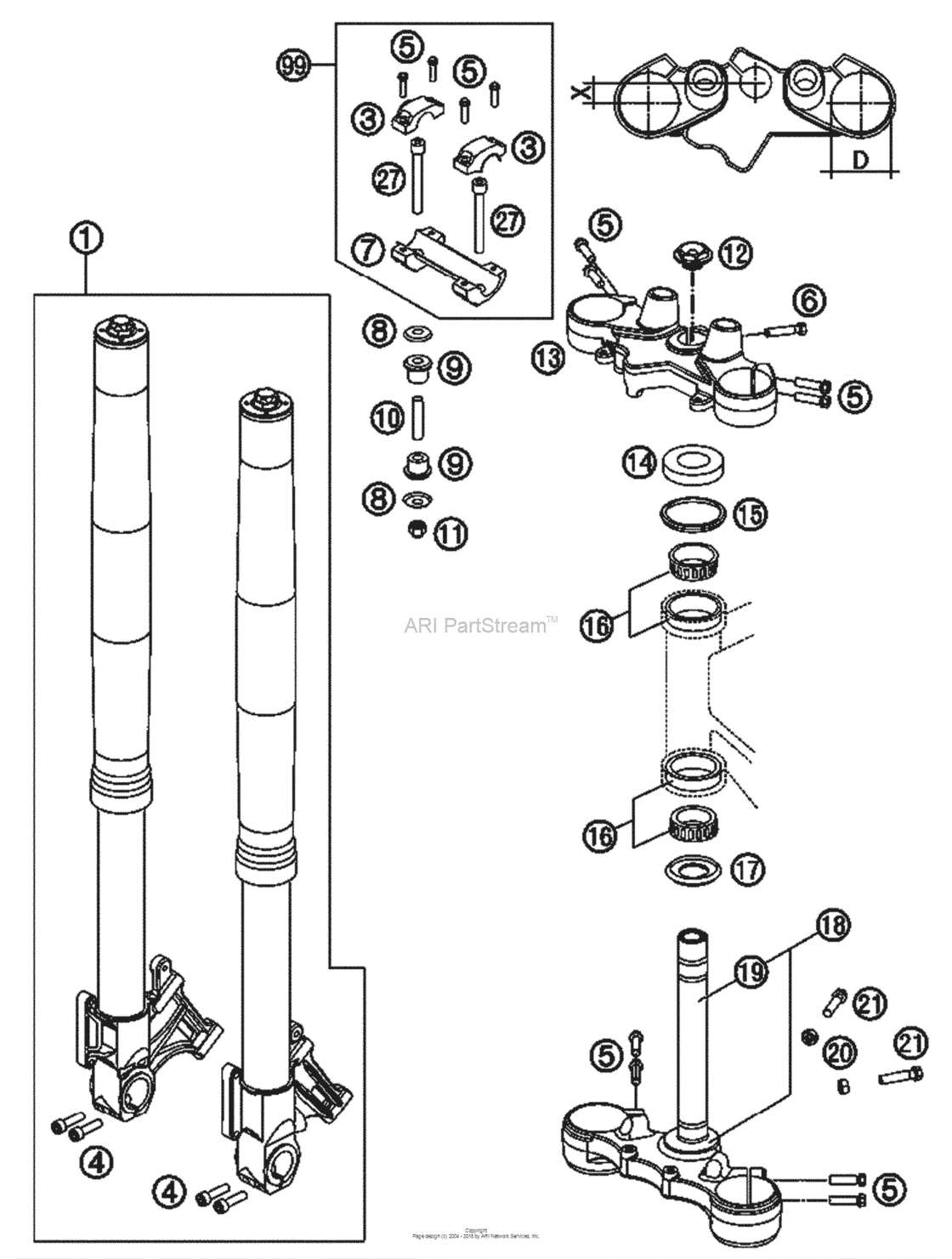

Front Fork Diagram KTM 990 990 SMR US/EU 18109864-940854

Front Fork Diagram KTM 990 990 SMR US/EU 18109864-940854
