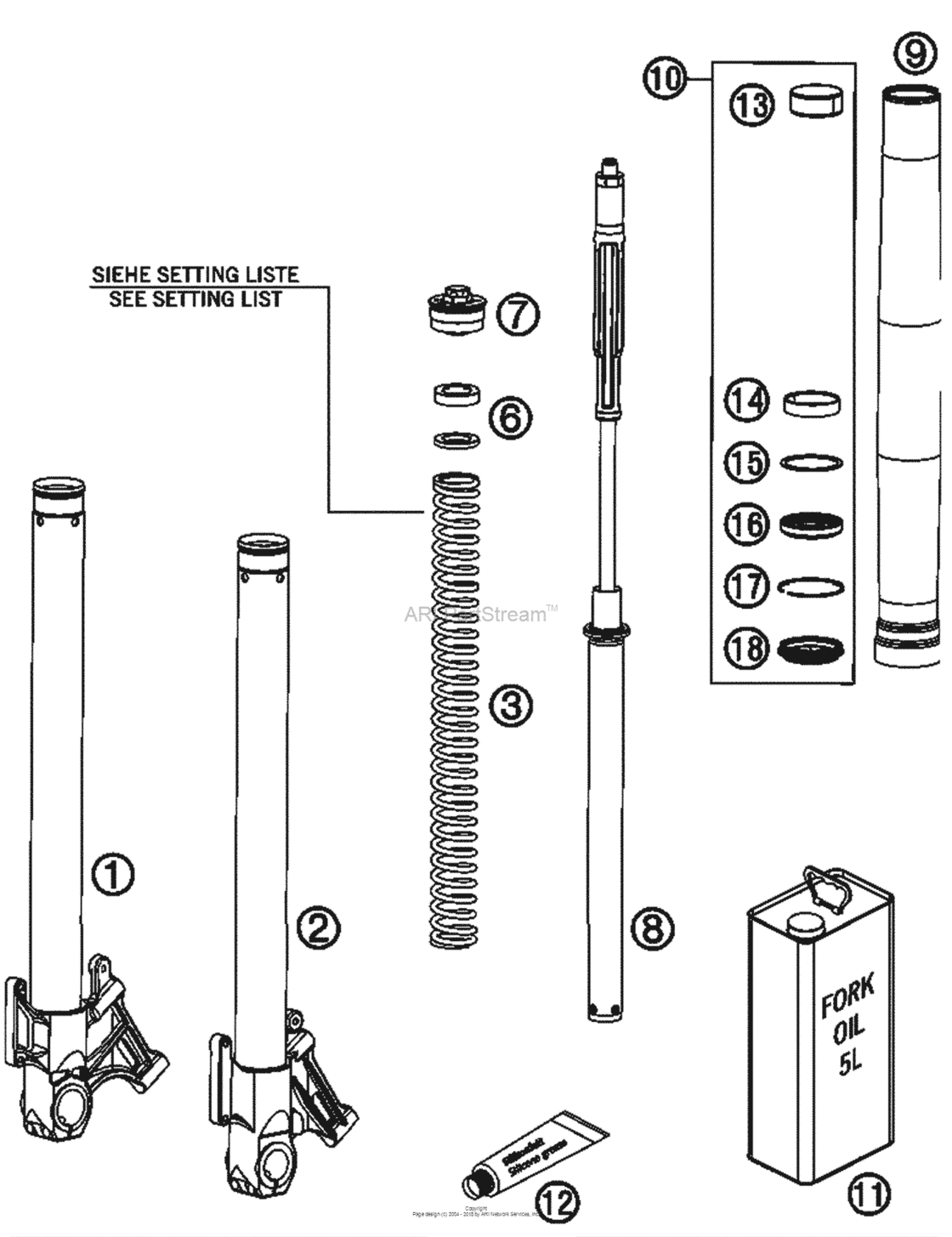

Front Fork, Disassembled Diagram KTM 990 990 SMR
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600685S3 Axle clamp r/s cpl. 0707 |
48600685S3 |
US $1,558.85 |
||
|
2
|
2
48600686S3 Axle clamp l/s cpl. 0707 |
48600686S3 |
US $1,558.85 |
||
|
3
|
3
91410076S Spring d43,7 l375 7,5n/mm set07 |
91410076S |
US $217.69 |
||
|
6
|
6
48600036 Spacer 42x26,5x2,507 |
48600036 |
US $6.48 |
||
|
6
|
6
48600037 Spacer 42x26,5x507 |
48600037 |
US $6.41 |
||
|
6
|
6
48600053 Spacer 42X26,5X1,507 |
48600053 |
US $7.09 |
||
|
7
|
7
48600431S Pre-load adj. cpl. m51x1,5 0505 |
48600431S |
US $148.36 |
||
|
8
|
8
48600839S Cartridge cpl. 990 sm-r 20092009 |
48600839S |
US $718.71 |
||
|
9
|
9
48600712 Outer tube l610 d54/d60 2l roa2009 |
48600712 |
US $482.97 |
||
|
10
|
10
R14017 Repair-kit gasket 0909 |
R14017 |
US $95.59 |
||
|
11
|
11
48600765S1
Fork Oil Sae5 5L
2008 |
48600765S1 |
— | ||
| replacement | |||||
|
11
|
11
48601166S1 Fork Oil Sae4 5L2008 |
48601166S1 |
US $218.08 |
||
|
12
|
12
T511 Silicone grease f. dust stri2008 |
T511 |
US $132.91 |
||
|
13
|
13
48600428 Guiding Bush 47X49X20 R112008 |
48600428 |
US $36.48 |
||
| replacement | |||||
|
13
|
13
48601008 Guiding Bush 47X49X20 R112008 |
48601008 |
US $13.23 |
||
|
14
|
14
48600429 Du-bush d48xd52x12ddl022008 |
48600429 |
US $36.48 |
||
| replacement | |||||
|
14
|
14
48601009 Guiding Bush 48X52X12 R112008 |
48601009 |
US $13.23 |
||
|
15
|
15
48600013 Support ring 50 x 57,6 x 1,52008 |
48600013 |
US $11.37 |
||
|
16
|
16
48600399
Oil seal ring 48x57,8x9,5
2008 |
48600399 |
— | ||
|
17
|
17
48600070 Lock washer sb582008 |
48600070 |
US $2.35 |
||
|
18
|
18
48600816 Dust sealAS REQUIRED |
48600816 |
US $27.03 |
||
