	Description	OEM Part #	Price
1	1 62635010000 Radiator 990 sm TX40	62635010000	—
	replacement
1	1 62635010100 Radiator TX40	62635010100	—
2	2 62535009000 Radiator cap 1,4 bar TX40	62535009000	US $29.22
3	3 0025060106 Hh collar screw m6x10 tx30 TX30	0025060106	US $1.58
4	4 60035048000 Alu-gasket 6x10x1.5 TX30	60035048000	US $3.89
5	5 62635065000 Expansion reservoir cpl. 08 08	62635065000	US $32.39
6	6 60035066000 Plug f. expansion tank 08	60035066000	—
	replacement
6	6 60335066044 Plug F. Expansion Tank 08	60335066044	US $8.50
9	9 0024060156 Hh collar screw m6x15 tx30 TX30	0024060156	US $3.96
10	10 60035067001 Hose 6x10 epdm 03 AS REQUIRED, 03	60035067001	US $7.62
12	12 58007117000 Ydnac-clamp 10107 10mm AS REQUIRED, 03	58007117000	US $2.16
14	14 60038039000 Distance holder 10/10 black AS REQUIRED, 03	60038039000	US $1.04
20	20 63035031000 Radiator hose therm./distr. 05 05	63035031000	—
21	21 60035030000 Radiator hose therm./pump 03 03	60035030000	US $15.13
22	22 60035017000 Thermostat 75 cpl. w. case 03 03	60035017000	—
23	23 62535025000 Radiator hose therm./distr. 05 05	62535025000	US $8.48
24	24 60035019000 Distributor r/s 18/18/18mm 03 03	60035019000	—
25	25 60035026000 Radiator hose cyl./distr. 03 03	60035026000	US $8.86
26	26 60035027000 Radiator hose distr./distr. 03 03	60035027000	US $16.32
27	27 60035028000 Distributor l/s 18/18/25mm 03 03	60035028000	US $16.42
28	28 62635024000 Radiator hose ┤08 08	62635024000	—
29	29 00050271708 Variable one-ear clamp 27,1mm 08	00050271708	US $3.89
30	30 00049320121 Clamp std dn32 08	00049320121	—
	replacement
30	30 00050325706 Variable One-Ear Clamp 32,5Mm 08	00050325706	US $2.41
31	31 00050346706 Variable one-ear clamp 34,6mm 08	00050346706	US $2.75
32	32 00050331706 Variable one-ear clamp 33,1mm 08	00050331706	US $8.06
40	40 41001052000 Rubber Sleeve D=12Mm 08	41001052000	US $5.46
41	41 57013072100 Wiring holder 16mm 08	57013072100	US $0.53
42	42 60035001000 Special screw m6x21 ws=8 WS=8	60035001000	US $6.15
45	45 58435045098 Thermoswitch 98 ░c for fan 03 03	58435045098	US $37.77
46	46 0770017015 O-ring 17x1,5 nb75 03	0770017015	US $1.29
49	49 62635044060 Fan cap 08 08	62635044060	US $5.42
51	51 62635044000 Fan cowl supermoto efi 08 08	62635044000	US $15.91
53	53 62635044050 Fan clack rubber 08 08	62635044050	US $10.17
54	54 62635041000 Ventilator 08	62635041000	US $128.27
56	56 0081050161 Ejot pt screw k50x16 1451 08	0081050161	US $0.66
76	76 58111076000 Cable support khs nr.150-47610 08	58111076000	US $2.98

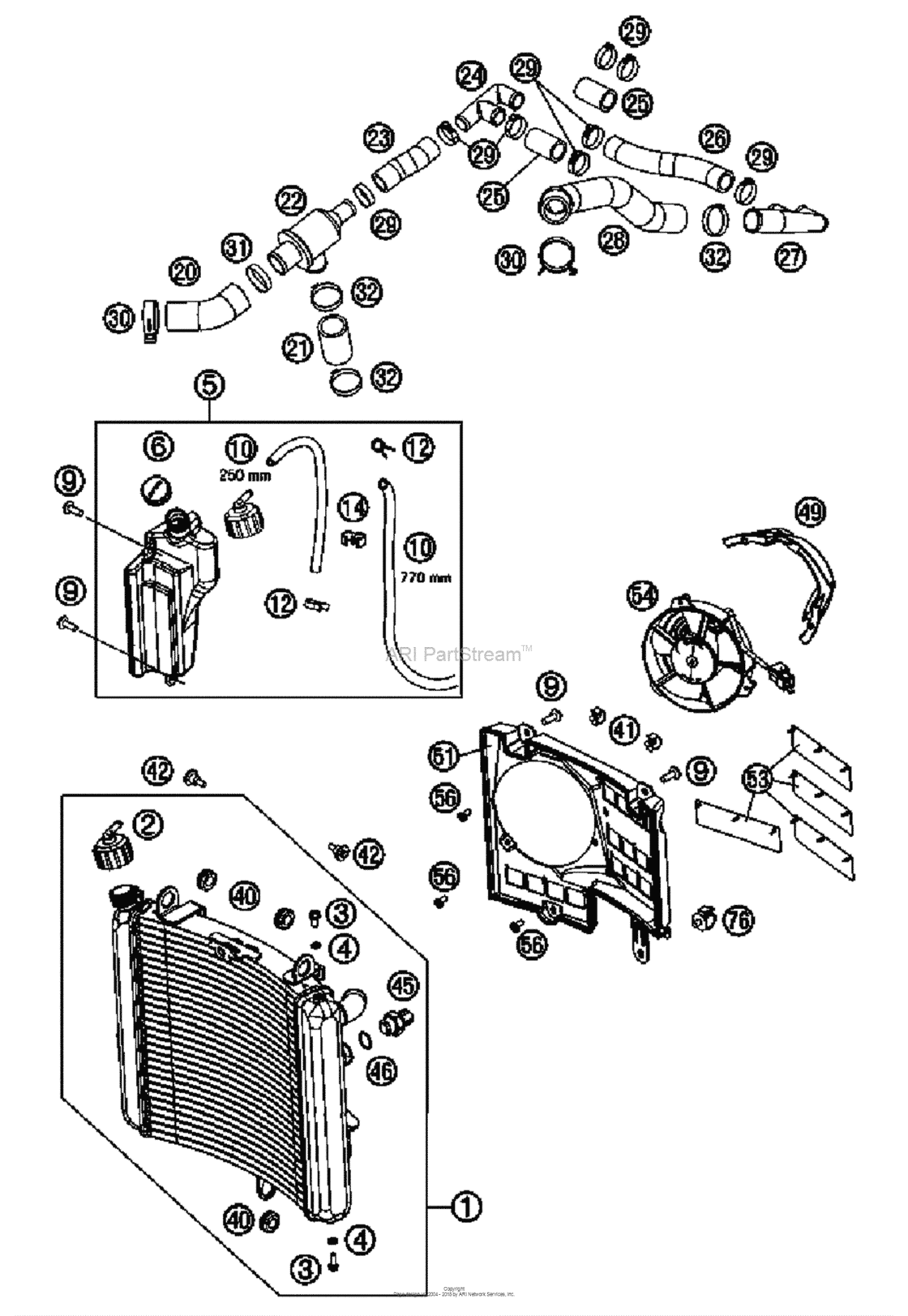

Cooling System Diagram KTM 990 990 SMR US/EU 18109884-940855

Cooling System Diagram KTM 990 990 SMR US/EU 18109884-940855
