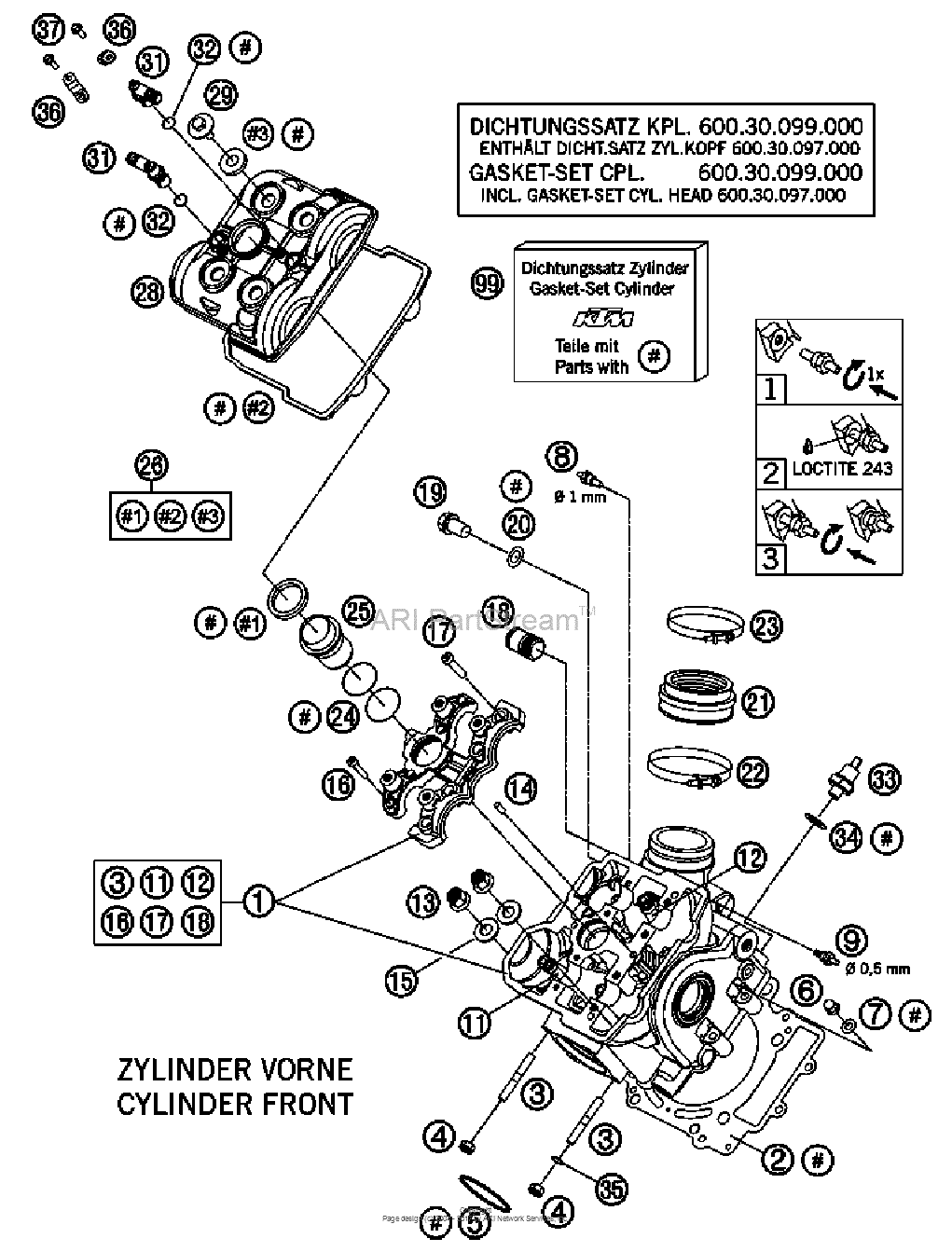

Cylinder Head Front Diagram KTM 990 990 SMR
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6113602004423 Cylinder head cpl. front 0707 |
6113602004423 |
US $927.86 |
||
|
2
|
2
60030036000 Cylinder head gasket 0,5 101mm07 |
60030036000 |
US $55.79 |
||
|
3
|
3
0835080256 Stud din0835-m 8x25 10.910.9 |
0835080256 |
US $2.72 |
||
|
4
|
4
51010086100 Self locking nut m 8 cu10.9 |
51010086100 |
US $1.51 |
||
|
5
|
5
61005005000 Exhaust gasket 0505 |
61005005000 |
US $8.52 |
||
|
6
|
6
61230045000 Cap Nut M6 Stainless Steel05 |
61230045000 |
US $0.90 |
||
|
7
|
7
0125060003 Washer Din0125-A 6,405 |
0125060003 |
US $0.37 |
||
|
8
|
8
61036023100 Vacuum conection 20062006 |
61036023100 |
US $10.10 |
||
|
9
|
9
60036023100 Vacuum conection m6/0,5mm2006 |
60036023100 |
US $28.76 |
||
|
11
|
11
60036026101 Valve giude exhaust2006 |
60036026101 |
US $25.26 |
||
|
12
|
12
60036025101 Valve giude intake2006 |
60036025101 |
US $9.69 |
||
|
13
|
13
60036078200 Collar nut m 10 ws=13 05WS=13 05 |
60036078200 |
US $2.41 |
||
|
14
|
14
0402050980 Needle roller din5402 5x9,8WS=13 05 |
0402050980 |
US $0.80 |
||
|
15
|
15
60036078050 Shim 10,2x19x1,5mm 0505 |
60036078050 |
US $3.89 |
||
|
16
|
16
0912060255 Ah screw din0912-m 6x25 10.910.9 |
0912060255 |
US $0.65 |
||
|
17
|
17
0984080305 Ah screw din7984-m 8x30 10.910.9 |
0984080305 |
US $0.58 |
||
|
18
|
18
58030010200 Screw In Nozzle M20X1,510.9 |
58030010200 |
US $8.82 |
||
|
19
|
19
0908120153 Plug din0908-m12x1,510.9 |
0908120153 |
US $3.81 |
||
|
20
|
20
58038022000 Cu-Seal Ring Din7603-12X18X1,510.9 |
58038022000 |
US $1.97 |
||
|
21
|
21
61036044000 Rubbersleeve intake flange 0505 |
61036044000 |
US $37.57 |
||
|
22
|
22
61036048000
Hose clamp gemi 66mm 05
05 |
61036048000 |
— | ||
| replacement | |||||
|
22
|
22
61236048000 Hose clamp gemi 66 / 105 |
61236048000 |
US $9.47 |
||
|
23
|
23
61036047000 Hose clamp gemi 63mm 0505 |
61036047000 |
US $7.46 |
||
|
24
|
24
0770298178 O-ring 29,87x1,78 viton05 |
0770298178 |
US $1.46 |
||
|
25
|
25
61136075000 Insert spark-plug shaft 0808 |
61136075000 |
US $15.56 |
||
|
26
|
26
60036099000 Valve cover gasket set fr+rr08 |
60036099000 |
US $41.04 |
||
|
28
|
28
6003625210023 Valve cover front08 |
6003625210023 |
US $55.08 |
||
|
29
|
29
60036052020 Collar screw m 6 ws=10 03WS=10 03 |
60036052020 |
US $2.09 |
||
|
31
|
31
60038082000 Angle connector lc8 0303 |
60038082000 |
US $16.81 |
||
|
32
|
32
0770080020 O-ring 8x2 silicone03 |
0770080020 |
US $0.66 |
||
|
33
|
33
60038091100 Oil-pressure switch lc8 0404 |
60038091100 |
US $11.10 |
||
|
34
|
34
0603100141 Copper Gasket Din7603-10X14X104 |
0603100141 |
US $2.24 |
||
|
35
|
35
61005009000 Spacer bush. 8,5x15x7,5 0505 |
61005009000 |
US $4.66 |
||
|
36
|
36
60038082050
Bracket F. Efi-Plug
05 |
60038082050 |
— | ||
| replacement | |||||
|
36
|
36
69006015050 Bracket f. efi-plug05 |
69006015050 |
US $6.04 |
||
|
37
|
37
0009050106 Ejot Spiral Screw Sf M5X10-K05 |
0009050106 |
US $2.60 |
||
|
99
|
99
60030097000 Gasket set cyl. head kpl. 0303 |
60030097000 |
US $274.89 |
||
