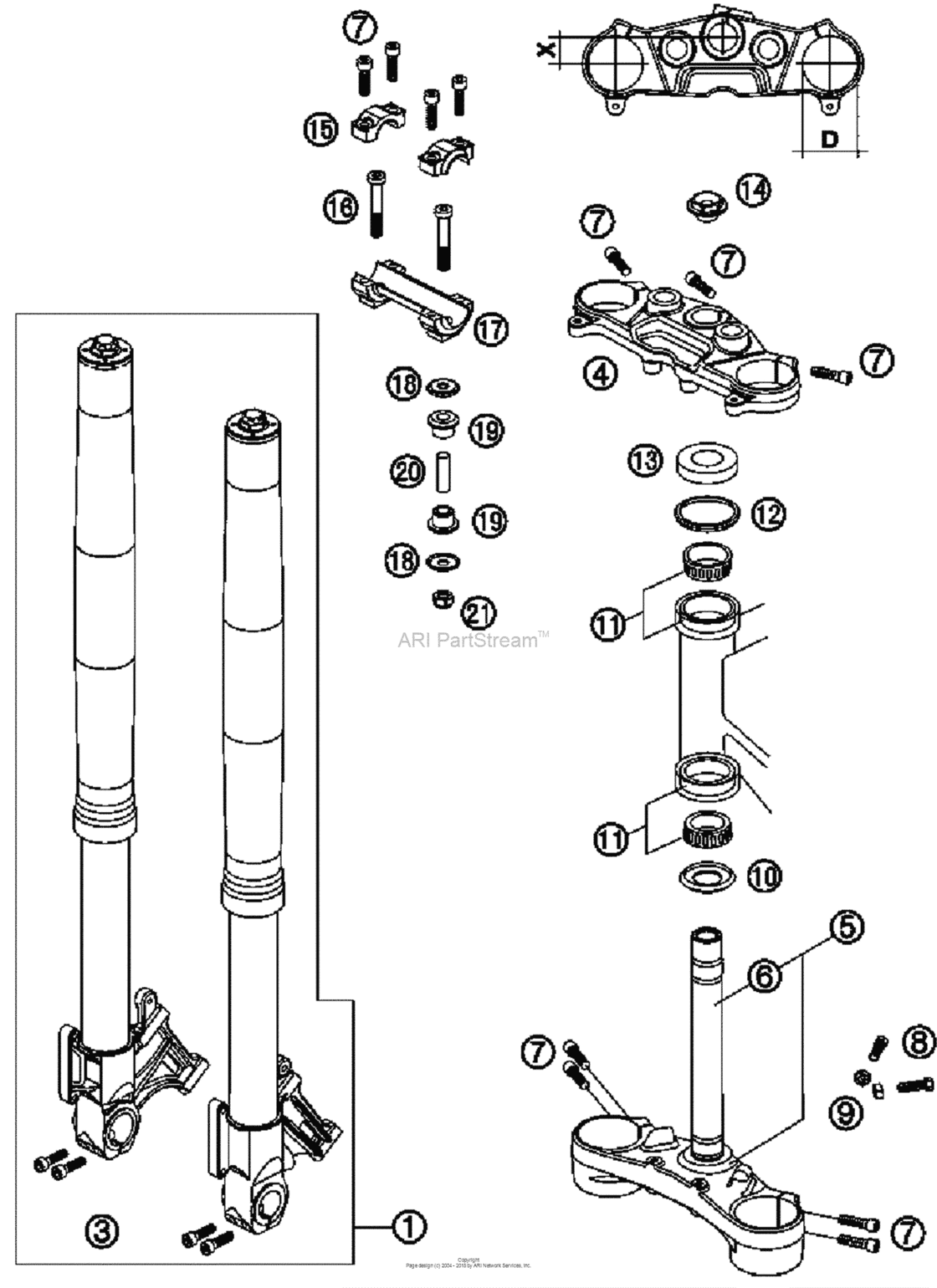

Front Fork Diagram KTM 990 990 Super Duke
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 Super Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14187D13
Front fork wp 990 duke '08
'08 |
14187D13 |
— | ||
| replacement | |||||
|
1
|
1
14187E1301 Front fork wp 990 duke '09'08 |
14187E1301 |
US $2,820.86 |
||
|
3
|
3
0912080303 Ah Screw Din0912-M 8X30'08 |
0912080303 |
US $1.50 |
||
|
4
|
4
6110103402901S Top triple clamp 0707 |
6110103402901S |
US $173.64 |
||
|
5
|
5
6110103202901S
Bot.triple clamp cpl. 07
07 |
6110103202901S |
— | ||
|
6
|
6
60001033000 Fork tube lc8 adv 0303 |
60001033000 |
US $60.45 |
||
|
7
|
7
0012080303 Ah screw din6912-m 8x3003 |
0012080303 |
US $1.22 |
||
|
8
|
8
59001037000 Special screw m8x26 ws=1003 |
59001037000 |
US $2.09 |
||
|
9
|
9
0934080003 Hexagon Nut Din0934-M 803 |
0934080003 |
US $3.26 |
||
|
10
|
10
54601084100 O-Ring Support W. Sealing Lip03 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
10
|
10
77701084000 O-Ring Support W. Sealing Lip03 |
77701084000 |
US $21.15 |
||
|
11
|
11
54201081100 Tapered Roller Bearing Cpl. 0606 |
54201081100 |
US $53.18 |
||
|
12
|
12
54601184000 Stearing head gasket top06 |
54601184000 |
US $7.74 |
||
|
13
|
13
61001086000 Steering head cover 0505 |
61001086000 |
US $14.04 |
||
|
14
|
14
54801036200 Steer.head screw m20x1,5 sw=2705 |
54801036200 |
US $12.72 |
||
|
15
|
15
5900103830001S Handlebar clamp 28mm 0707 |
5900103830001S |
US $24.51 |
||
|
16
|
16
0012100603 Ah screw din6912-m10x6007 |
0012100603 |
US $1.41 |
||
|
17
|
17
5900103920001S Handlebar support 28mm 0707 |
5900103920001S |
US $68.12 |
||
|
18
|
18
56401042000 Washer 10,5x32x207 |
56401042000 |
US $4.71 |
||
|
19
|
19
56401040000 Rubber bushing07 |
56401040000 |
US $6.73 |
||
|
20
|
20
61001041000 Spacer tube 10,2x12x38 0505 |
61001041000 |
US $3.40 |
||
|
21
|
21
0982100003 Self lock.nut din0982-m10 high05 |
0982100003 |
US $2.35 |
||
