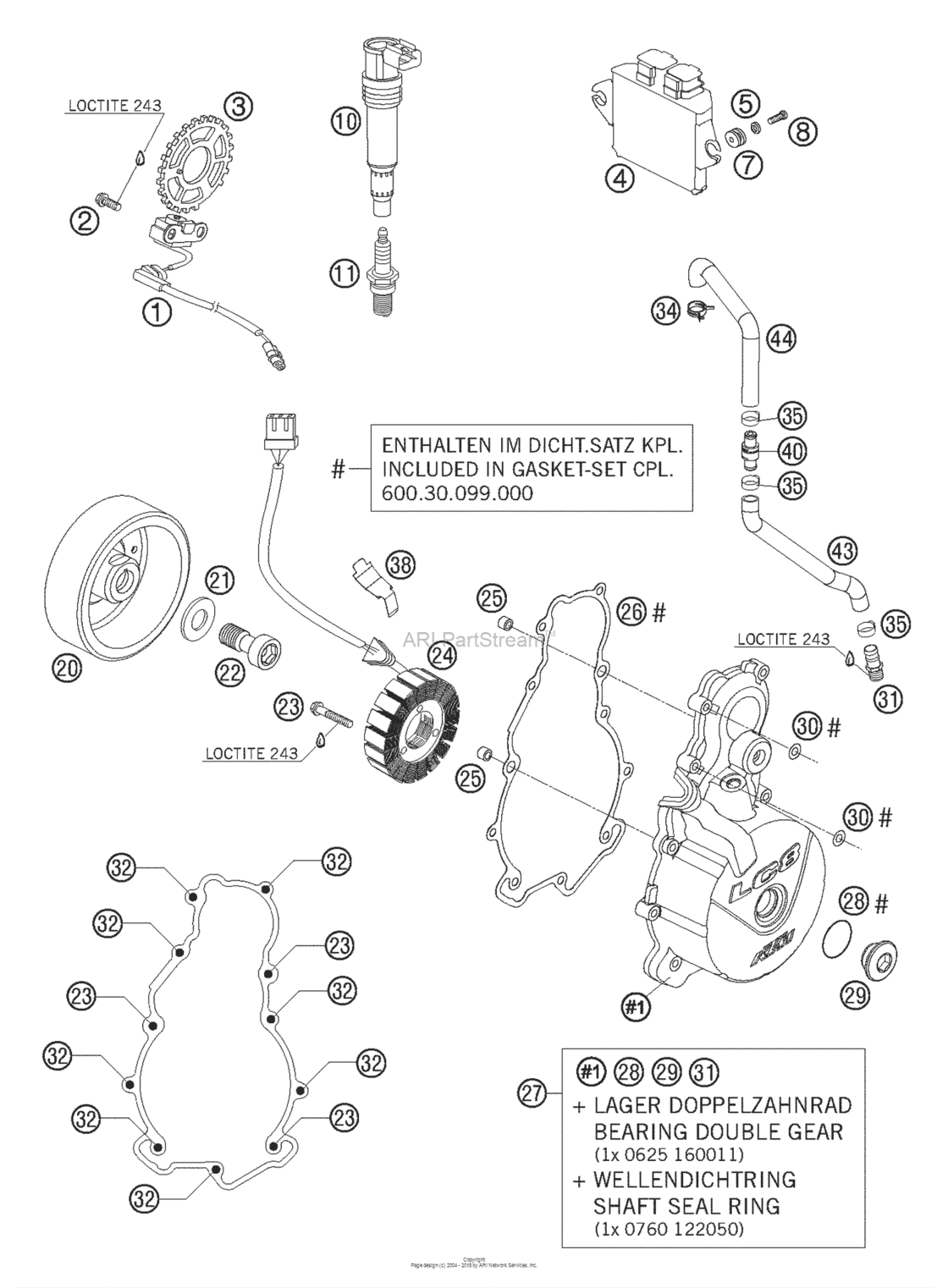

Ignition System Denso Diagram KTM 990 990 Super Duke
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 Super Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60039034100 Pulse generator lc8 04FOR BEARING INSERT 05 |
60039034100 |
US $118.68 |
||
|
2
|
2
0015060163 Hh Collar Screw M 6X16 Ws=8FOR BEARING INSERT 05 |
0015060163 |
US $2.23 |
||
|
3
|
3
61039020000 Coil sproket 22z o. cyl. pinFOR BEARING INSERT 05 |
61039020000 |
US $4.32 |
||
|
4
|
4
61041031000
Timing Charger Efi 05
FOR BEARING INSERT 05 |
61041031000 |
— | ||
|
5
|
5
60008045000 Special washer d=16,5mm 03FOR BEARING INSERT 05 |
60008045000 |
US $3.38 |
||
|
7
|
7
60039030000 Vibration damper digitalbox 03FOR BEARING INSERT 05 |
60039030000 |
US $2.43 |
||
|
8
|
8
0012060123 Ah screw din6912 m6x12FOR BEARING INSERT 05 |
0012060123 |
US $2.24 |
||
|
10
|
10
60039006000 Stick coil 03FOR BEARING INSERT 05 |
60039006000 |
US $83.13 |
||
|
11
|
11
61039093000 Spark plug m12x1,25 dcpr8e/m4FOR BEARING INSERT 05 |
61039093000 |
US $22.24 |
||
|
20
|
20
60039005100 Ignition rotor 04INCL. FREEWHEEL |
60039005100 |
US $800.22 |
||
|
21
|
21
60039040010 Washer 17x32x4 03INCL. FREEWHEEL |
60039040010 |
US $4.37 |
||
|
22
|
22
60039003100 Ah expand. screw m16x1,5 05INCL. FREEWHEEL |
60039003100 |
US $8.26 |
||
|
23
|
23
0015060353
Hh collar screw m 6x35 ws=8
INCL. FREEWHEEL |
0015060353 |
— | ||
| replacement | |||||
|
23
|
23
0025060356 Hh collar screw m6x35 tx30INCL. FREEWHEEL |
0025060356 |
US $6.15 |
||
|
24
|
24
60039004000
Stator 03
INCL. FREEWHEEL |
60039004000 |
— | ||
|
25
|
25
49030090000 Dowel 9,8 x 7 x 10INCL. FREEWHEEL |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
25
|
25
49030090100 Dowel 9,8 X7X10INCL. FREEWHEEL |
49030090100 |
US $2.60 |
||
|
26
|
26
60030040100 Ignit.cover gask.matri.cs0,5mmINCL. FREEWHEEL |
60030040100 |
US $40.19 |
||
|
27
|
27
60030002044 Ignition Cover Cpl. 06INCL. FREEWHEEL |
60030002044 |
US $194.12 |
||
| replacement | |||||
|
27
|
27
6003000214423 Ignition cover cpl. 06INCL. FREEWHEEL |
6003000214423 |
US $180.05 |
||
|
28
|
28
0770024025
O-ring 24x2,5 nbr
INCL. FREEWHEEL |
0770024025 |
— | ||
| replacement | |||||
|
28
|
28
07700240251 O-ring 24x2,5 vitonINCL. FREEWHEEL |
07700240251 |
US $3.96 |
||
|
29
|
29
60030094000 Screw Plug M24X1,5 Pa 6.6INCL. FREEWHEEL |
60030094000 |
US $2.96 |
||
| replacement | |||||
|
29
|
29
6003009400023 Screw plug m24x1,5 pa 6.6INCL. FREEWHEEL |
6003009400023 |
US $1.94 |
||
|
30
|
30
0603061001 Cu-Seal Ring Din7603-6X10X1INCL. FREEWHEEL |
0603061001 |
US $2.64 |
||
|
31
|
31
60030022000 Ventilation connector m16x1,5INCL. FREEWHEEL |
60030022000 |
US $7.28 |
||
|
32
|
32
0015060303
Hh Collar Screw M6X30 Tx30
INCL. FREEWHEEL |
0015060303 |
— | ||
| replacement | |||||
|
32
|
32
0025060306 Hh collar screw m6x30 tx30INCL. FREEWHEEL |
0025060306 |
US $3.96 |
||
|
34
|
34
00049220121 Clamp std dn22INCL. FREEWHEEL |
00049220121 |
US $1.04 |
||
|
35
|
35
00050226706 Variable one-ear clamp 22,6mmINCL. FREEWHEEL |
00050226706 |
US $2.09 |
||
|
38
|
38
60039040020 Cable support generator 03INCL. FREEWHEEL |
60039040020 |
US $2.62 |
||
|
40
|
40
60030090000
Back-Pressure Valve Cpl
INCL. FREEWHEEL |
60030090000 |
— | ||
| replacement | |||||
|
40
|
40
60030090300 Back-Pressure Valve CplINCL. FREEWHEEL |
60030090300 |
US $38.34 |
||
|
43
|
43
60030087101 Engine breather hose bottomINCL. FREEWHEEL |
60030087101 |
US $52.68 |
||
|
44
|
44
60030087102 Engine breather hose topINCL. FREEWHEEL |
60030087102 |
US $24.84 |
||
