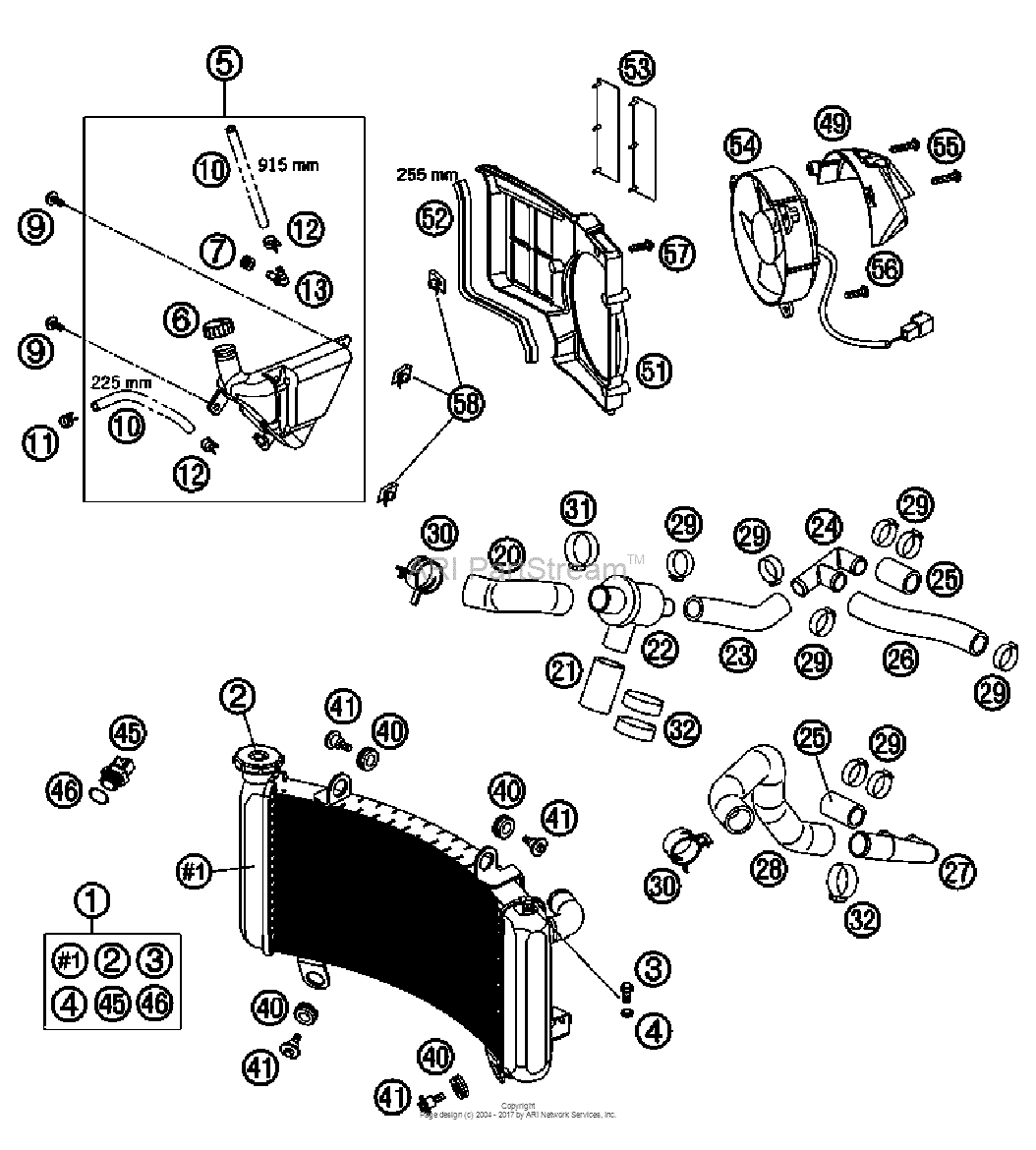

Cooling System Diagram KTM 990 990 Super Duke
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 Super Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61035010000
Radiator 990 duke 05
05 |
61035010000 |
— | ||
| replacement | |||||
|
1
|
1
61035110100 Radiator05 |
61035110100 |
US $881.01 |
||
|
2
|
2
61035016000 Radiator cap 990 duke 0505 |
61035016000 |
US $18.90 |
||
|
3
|
3
0015060103
Hh collar screw m 6x10 ws=8
05 |
0015060103 |
— | ||
| replacement | |||||
|
3
|
3
0025060106 Hh collar screw m6x10 tx3005 |
0025060106 |
US $1.58 |
||
|
4
|
4
0125060003 Washer Din0125-A 6,405 |
0125060003 |
US $0.37 |
||
|
5
|
5
61035065000 Expansion tank cpl. 0505 |
61035065000 |
US $39.88 |
||
|
6
|
6
60035066000
Plug f. expansion tank
05 |
60035066000 |
— | ||
| replacement | |||||
|
6
|
6
60335066044 Plug F. Expansion Tank05 |
60335066044 |
US $8.50 |
||
|
7
|
7
58214069051 Rubber Grommet 16X10,8X3 0202 |
58214069051 |
US $4.52 |
||
|
9
|
9
0014060153
Hh Collar Screw M6X15 Tx30
02 |
0014060153 |
— | ||
| replacement | |||||
|
9
|
9
0024060156 Hh collar screw m6x15 tx3002 |
0024060156 |
US $3.96 |
||
|
10
|
10
60035067001 Hose 6x10 epdm 0303, As Required |
60035067001 |
US $7.62 |
||
|
11
|
11
50231005000 Hose clamp ydnac 10119 11mm03, As Required |
50231005000 |
US $1.68 |
||
|
12
|
12
58007117000 Ydnac-clamp 10107 10mm03, As Required |
58007117000 |
US $2.16 |
||
|
13
|
13
60035068000 Angle connection expans. tank03, As Required |
60035068000 |
US $1.92 |
||
|
20
|
20
60035031000 Radiator hose therm./rad.03, As Required |
60035031000 |
US $24.60 |
||
|
21
|
21
60035030000 Radiator hose therm./pump 0303 |
60035030000 |
US $15.13 |
||
|
22
|
22
60035017000
Thermostat 75 cpl. w. case 03
03 |
60035017000 |
— | ||
|
23
|
23
60035025000 Radiator hose therm./distr. 0303 |
60035025000 |
US $17.83 |
||
|
24
|
24
60035019000
Distributor r/s 18/18/18mm 03
03 |
60035019000 |
— | ||
|
25
|
25
60035026000 Radiator hose cyl./distr. 0303 |
60035026000 |
US $8.86 |
||
|
26
|
26
60035027000 Radiator hose distr./distr. 0303 |
60035027000 |
US $16.32 |
||
|
27
|
27
60035028000 Distributor l/s 18/18/25mm 0303 |
60035028000 |
US $16.42 |
||
|
28
|
28
60035024000 Radiator hose radiator l/s 0303 |
60035024000 |
US $45.31 |
||
|
29
|
29
00050271708 Variable one-ear clamp 27,1mm03 |
00050271708 |
US $3.89 |
||
|
30
|
30
00049320121
Clamp std dn32
03 |
00049320121 |
— | ||
| replacement | |||||
|
30
|
30
00050325706 Variable One-Ear Clamp 32,5Mm03 |
00050325706 |
US $2.41 |
||
|
31
|
31
00050346706 Variable one-ear clamp 34,6mm03 |
00050346706 |
US $2.75 |
||
|
32
|
32
00050331706 Variable one-ear clamp 33,1mm03 |
00050331706 |
US $8.06 |
||
|
40
|
40
41001052000 Rubber Sleeve D=12Mm03 |
41001052000 |
US $5.46 |
||
|
41
|
41
60035001000 Special screw m6x21 ws=803 |
60035001000 |
US $6.15 |
||
|
45
|
45
60035045000 Thermoswitch lc8 102dg '0303 |
60035045000 |
US $52.14 |
||
|
46
|
46
0770017015 O-ring 17x1,5 nb7503 |
0770017015 |
US $1.29 |
||
|
49
|
49
61035044050 Fan cap 0505 |
61035044050 |
US $29.92 |
||
|
51
|
51
60035044000 Fan cowl l/s 0303 |
60035044000 |
US $31.84 |
||
|
52
|
52
58312085100 Edge protector per meterAs Required |
58312085100 |
US $22.98 |
||
|
53
|
53
58435044050
Fan Clack Rubber 08
2000 |
58435044050 |
— | ||
| replacement | |||||
|
53
|
53
62635044050 Fan clack rubber 082000 |
62635044050 |
US $10.17 |
||
|
54
|
54
60035041000 Fan l/s 0303 |
60035041000 |
US $146.15 |
||
|
55
|
55
0017060303 Special screw t60 6x30 ws=603 |
0017060303 |
US $2.24 |
||
| replacement | |||||
|
55
|
55
0017060305 Special Screw K60X30 Ws=603 |
0017060305 |
US $2.24 |
||
|
56
|
56
0017060203
Screw For Plastic K60X20 Sw6
03 |
0017060203 |
— | ||
| replacement | |||||
|
56
|
56
0017060205 Screw For Plastic K60X20 Sw603 |
0017060205 |
US $2.24 |
||
|
57
|
57
0014060203 Hh Collar Screw M 6X20 Ws=803 |
0014060203 |
US $3.26 |
||
|
58
|
58
54603048100 Range Change Metal Nut M603 |
54603048100 |
US $5.27 |
||
