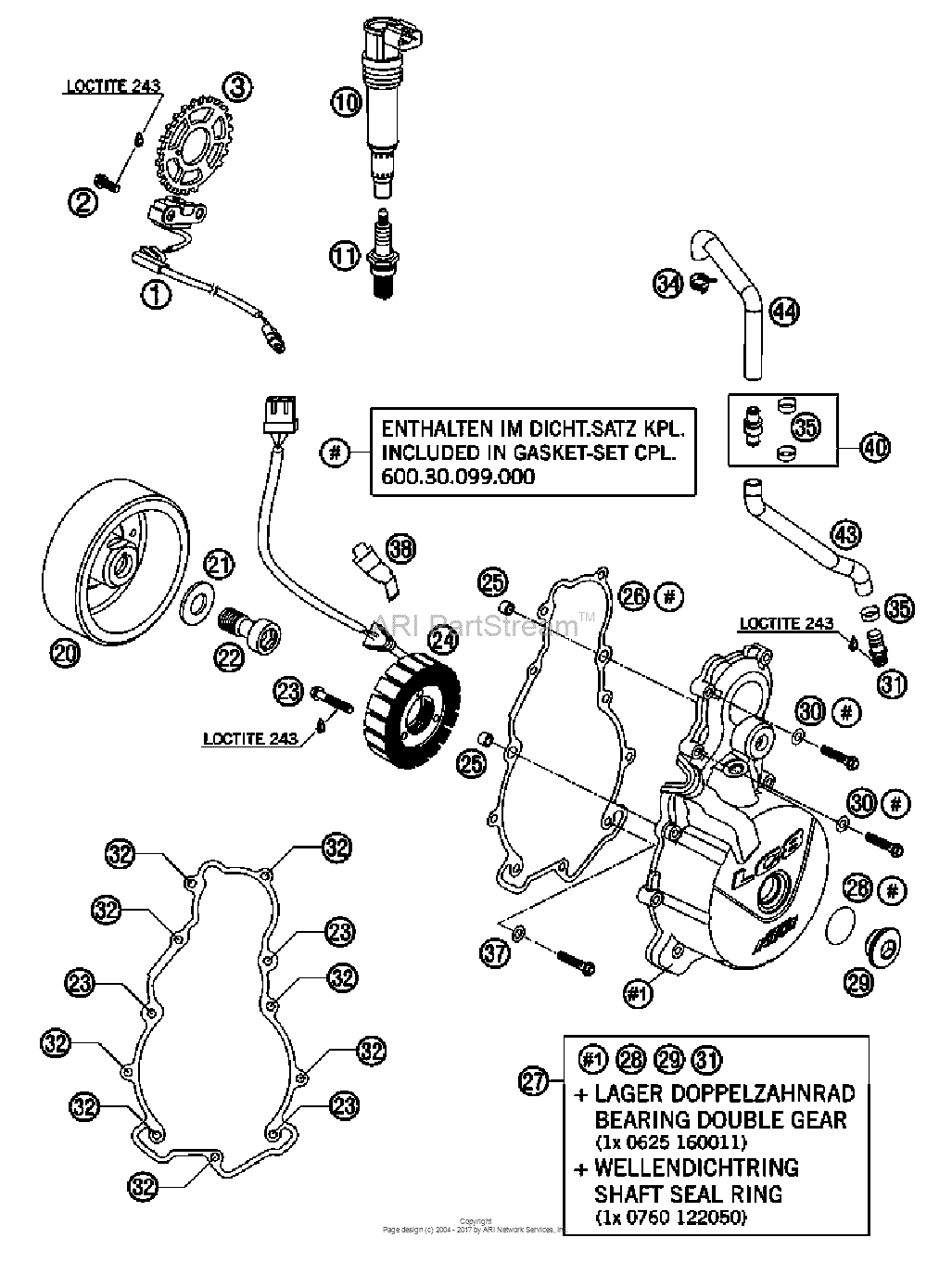

Ignition System Diagram KTM 990 990 Super Duke
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 Super Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60039034100 Pulse generator lc8 0404 |
60039034100 |
US $118.68 |
||
|
2
|
2
0015060163 Hh Collar Screw M 6X16 Ws=804 |
0015060163 |
US $2.23 |
||
|
3
|
3
61039020000 Coil sproket 22z o. cyl. pin04 |
61039020000 |
US $4.32 |
||
|
10
|
10
60039006000 Stick coil 0303 |
60039006000 |
US $83.13 |
||
|
11
|
11
61139093000 Spark plug kr8di03 |
61139093000 |
US $29.43 |
||
|
20
|
20
60039005100 Ignition rotor 0404 |
60039005100 |
US $800.22 |
||
|
21
|
21
60039040010 Washer 17x32x4 0304 |
60039040010 |
US $4.37 |
||
|
22
|
22
60039003100 Ah expand. screw m16x1,5 0503 |
60039003100 |
US $8.26 |
||
|
23
|
23
0015060353
Hh collar screw m 6x35 ws=8
05 |
0015060353 |
— | ||
| replacement | |||||
|
23
|
23
0025060356 Hh collar screw m6x35 tx3005 |
0025060356 |
US $6.15 |
||
|
24
|
24
60039004000
Stator 03
05 |
60039004000 |
— | ||
|
25
|
25
49030090000 Dowel 9,8 x 7 x 1003 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
25
|
25
49030090100 Dowel 9,8 X7X1003 |
49030090100 |
US $2.60 |
||
|
26
|
26
60030040100 Ignit.cover gask.matri.cs0,5mm10 |
60030040100 |
US $40.19 |
||
|
27
|
27
60030002144
Ignition Cover Cpl
10 |
60030002144 |
— | ||
| replacement | |||||
|
27
|
27
6003000214423 Ignition cover cpl. 0610 |
6003000214423 |
US $180.05 |
||
|
28
|
28
0770024025
O-ring 24x2,5 nbr
06 |
0770024025 |
— | ||
| replacement | |||||
|
28
|
28
07700240251 O-ring 24x2,5 viton06 |
07700240251 |
US $3.96 |
||
|
29
|
29
6003009400023 Screw plug m24x1,5 pa 6.606 |
6003009400023 |
US $1.94 |
||
|
30
|
30
0603061001 Cu-Seal Ring Din7603-6X10X106 |
0603061001 |
US $2.64 |
||
|
31
|
31
60030022000 Ventilation connector m16x1,506 |
60030022000 |
US $7.28 |
||
|
32
|
32
0015060303
Hh Collar Screw M6X30 Tx30
06 |
0015060303 |
— | ||
| replacement | |||||
|
32
|
32
0025060306 Hh collar screw m6x30 tx3006 |
0025060306 |
US $3.96 |
||
|
34
|
34
00049220121 Clamp std dn2206 |
00049220121 |
US $1.04 |
||
|
35
|
35
00050226706 Variable one-ear clamp 22,6mm06 |
00050226706 |
US $2.09 |
||
|
37
|
37
0125060003 Washer Din0125-A 6,406 |
0125060003 |
US $0.37 |
||
|
38
|
38
60039040020 Cable support generator 0306 |
60039040020 |
US $2.62 |
||
|
40
|
40
60030090344 Back-Pressure Valve Cpl03 |
60030090344 |
US $28.05 |
||
|
43
|
43
60030087101 Engine breather hose bottom03 |
60030087101 |
US $52.68 |
||
|
44
|
44
60030087102 Engine breather hose top03 |
60030087102 |
US $24.84 |
||
