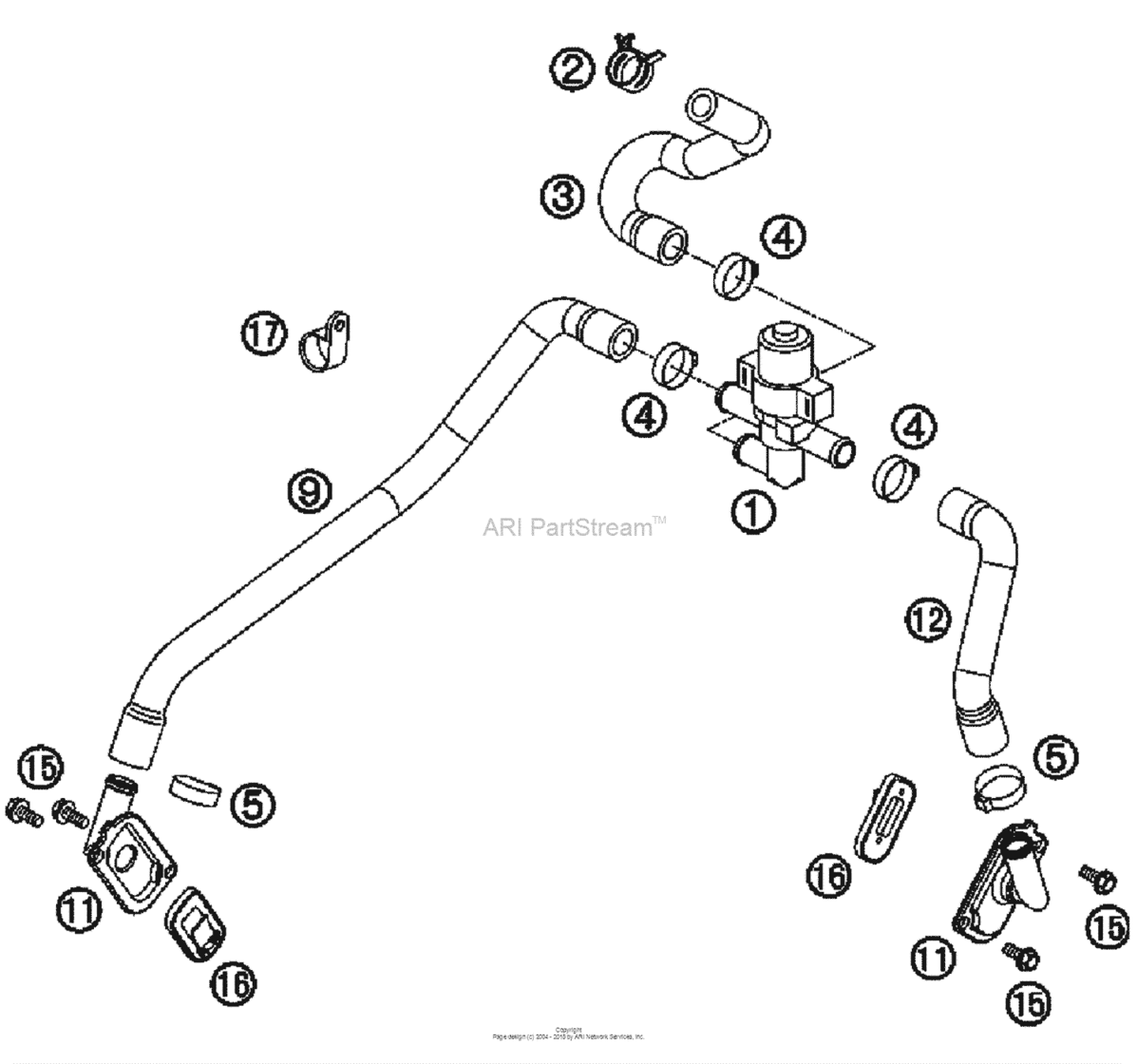

Secondary Air System Diagram KTM 990 990 Super Duke
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 990
- Model
- 990 Super Duke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61005026000 Control valve sas 0505 |
61005026000 |
US $139.20 |
||
|
2
|
2
00049190121 Clamp std dn1905 |
00049190121 |
US $1 |
||
|
3
|
3
61005035023 Sas hose airbox 0505 |
61005035023 |
US $22.15 |
||
|
4
|
4
00050226706 Variable one-ear clamp 22,6mm05 |
00050226706 |
US $2.09 |
||
|
5
|
5
00050210706 Variable one-ear clamp 21,0mm05 |
00050210706 |
US $1.96 |
||
|
9
|
9
61005035021 Sas hose cylinder front 0505 |
61005035021 |
US $41.19 |
||
|
11
|
11
60005022000 Sas flange 0303 |
60005022000 |
US $13.35 |
||
|
12
|
12
61005035022 Sas hose cylinder rear 0505 |
61005035022 |
US $26.13 |
||
|
15
|
15
0015060123
Hh Collar Screw M 6X12 Ws=8
05 |
0015060123 |
— | ||
| replacement | |||||
|
15
|
15
0025060126 Hh collar screw m6x12 tx3005 |
0025060126 |
US $3.96 |
||
|
16
|
16
60005026000 Sls-valve 0303 |
60005026000 |
US $20.60 |
||
|
17
|
17
57013070400 Pvc clamp 17,4mm heyco 338103 |
57013070400 |
US $0.90 |
||
