Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 309098 Silicon gasket three-bond 07	309098	US $208.86
	replacement
1	1 58429059200 Loctite 5910 50Ml 07	58429059200	US $40.61
2	2 0113080802 Engine blocking screw 07	0113080802	US $11.14
3	3 15112017000 Bushing extractor 07	15112017000	US $144.77
4	4 45129075000 Revmeter 07	45129075000	—
5	5 50329050000 Vent Injektion Hydr. Clutch 07	50329050000	US $50.78
6	6 56012001000 Assy support (without holder) 07	56012001000	US $983.89
7	7 58429059000 Loctite 648 Green 20Ml 07	58429059000	—
8	8 58529005000 Mount.sleeve f. sh.s.ring wapu 07	58529005000	US $27.69
9	9 59029019000 Valve spring lever 07	59029019000	US $374.58
10	10 59029021044 Extractor Prim. Gear Cpl 07	59029021044	US $14.37
11	11 59029026006 Limit plug gauge f.valve guide 07	59029026006	US $24.43
12	12 59029041000 Feeler gauge set10,12,15,20,25 07	59029041000	US $12.48
13	13 6899785 Loctite 243 Blue 6Ccm As Required	6899785	US $40.61
14	14 60029002000 Engine bracket for lc8 03 03, As Required	60029002000	US $67.56
15	15 60029003000 Bracket for clutch 03, As Required	60029003000	US $28.03
16	16 60029005000 Mount.sleeve f. sh. seal ring 03, As Required	60029005000	US $20.93
17	17 60029006000 Adaptor f.oil pressure gauge 03, As Required	60029006000	US $44.18
18	18 60029009000 Flywheel extractor 03, As Required	60029009000	US $16.39
19	19 60029009010 Push screw f. flywh. extractor 03, As Required	60029009010	US $20.03
19	19 60029009110 Push screw f. flywh. extractor 03, As Required	60029009110	US $20.03
20	20 60029010000 Degree disk 360deg - 1/2 inch 03, As Required	60029010000	US $481.07
21	21 60029011000 Synchronizer cpl. 2-cylinder 03, As Required	60029011000	US $283.39
22	22 60029012000 Plastigauge - measuring strip 03, As Required	60029012000	US $18.75
23	23 60029015000 Piston ring compressor cpl. 03 03	60029015000	US $88.83
24	24 60029016000 Setting gage f. float level 03	60029016000	US $24.36
25	25 60029018000 Intern.bear.puller 28 mm 03	60029018000	US $153.17
26	26 60029031000 Pressure punch f. crankshaft 03	60029031000	US $20.83
27	27 60029033000 Extractor prim. gear 03	60029033000	US $208.61
28	28 60029041000 Insert for valve spring lever 03	60029041000	US $25.72
29	29 60029043010 Seal.ring press punch push rod 03	60029043010	US $20.72
30	30 60029043020 Seal.ring press punch count.sh 03	60029043020	US $26.66
31	31 60029043030 Press punch seal.ring/bearing 03	60029043030	US $22.22
32	32 60029043040 Seal.ring press punch wat.pump 03	60029043040	US $17.92
33	33 60029043050 Seal.ring press punch ba.shaft 03	60029043050	US $14.37
33	33 60029043060 Press punch wapu-bearing 03	60029043060	US $18.58
34	34 60029044050 Press tool for main bearing 03	60029044050	US $78.59
35	35 60029046028 Press tool f. support bearing 03	60029046028	—
	replacement
35	35 60029046128 Press tool dm28 03	60029046128	US $59.91
36	36 60029050000 Bottom part pretensioning tool 03	60029050000	US $42.87
37	37 60029051000 Hook wrench pretens.tool cpl. 03	60029051000	US $41.34
38	38 60029058000 Scissor gear puller 03	60029058000	US $40.85
39	39 60029073000 Spark plug wrench 16mm 1/2inch 03	60029073000	US $80.90
40	40 60029075000 Special socket f.cyl.-head nut 03	60029075000	US $58.38
41	41 60029081000 Wrench for cylinder-head screw 03	60029081000	US $41.24
42	42 60029082000 Holder for water pump wheel 03	60029082000	US $29.99
43	43 60029083000 Special socket f. cylinder nut 03	60029083000	US $46.02
44	44 61029094000 Efi pressure tester 03	61029094000	US $411.09
45	45 62529093000 Ignitionwire adaptor 03	62529093000	US $68.83

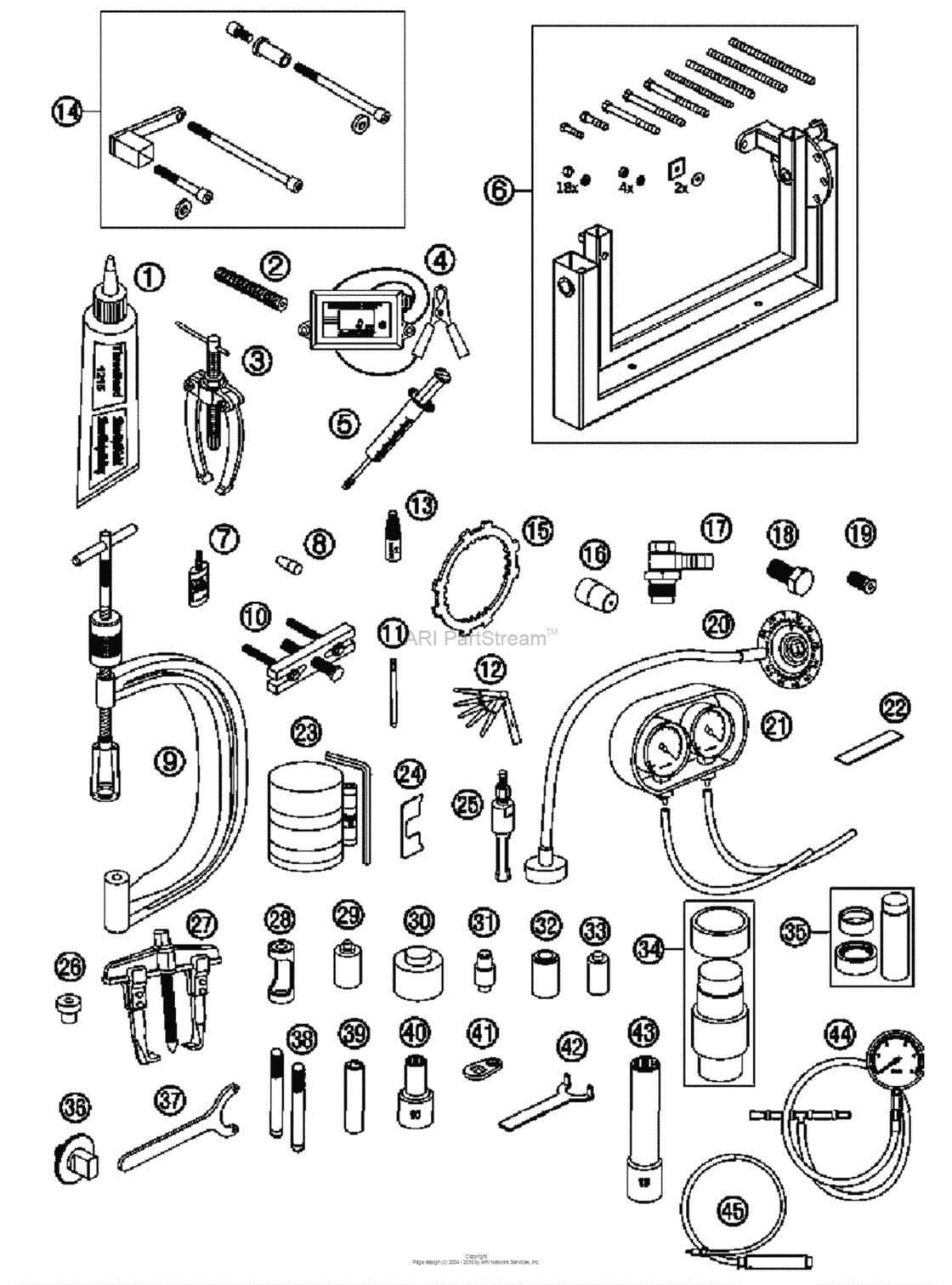

Special Tools Diagram KTM 990 990 Super Duke US/EU 18110062-940862

Special Tools Diagram KTM 990 990 Super Duke US/EU 18110062-940862
