Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 48600996 Adjustment Tube L486 Od3 As Required	48600996	US $9.42
2	2 48601054 Piston Rod D8 L497 As Required	48601054	US $86.85
3	3 48600998S Adj - Needle Cpl As Required	48600998S	US $10.74
4	4 48600298 O-ring 2x1,5 nbr As Required	48600298	US $4.28
5	5 48601048 Guide Shim Rebound Spring As Required	48601048	US $1.50
6	6 48601049 Rebound Spring L25 As Required	48601049	US $4.51
7	7 48600986 Tap Rebound M8 As Required	48600986	US $25.55
8	8 48600382 Shuttle valve spring c=0,4 As Required	48600382	US $2.67
9	9 48600985 Piston Rebound D20 As Required	48600985	—
	replacement
9	9 48600985E PISTON REBOUND D20 As Required	48600985E	US $30.19
10	10 48601171 Z-Cut Ring D18 Plastic As Required	48601171	US $9.88
11	11 48601128 O-Ring 15X1 As Required	48601128	US $0.90
12	12 48601033 Pusher D=5,5 Follow Repair Manual As Required	48601033	US $3.52
13	13 48600999 Needle D14 White As Required	48600999	US $18.80
13	13 48601123 Needle D14 Red As Required	48601123	US $19.16
14	14 48601061 Spring Guidance Below As Required	48601061	US $3.03
15	15 48601184 Shim 29X44X0,3 As Required	48601184	US $3.37
16	16 48601022S Screw Sleeve M23,5 Cpl As Required	48601022S	US $53.24
17	17 48601130 O-Ring 40X3 As Required	48601130	US $2.24
18	18 48600954 Gasket D8 As Required	48600954	US $6.95
19	19 48601025S Check Valve D21 Cpl As Required	48601025S	—
	replacement
19	19 48601025S1 Check Valve D21 Cpl As Required	48601025S1	US $42.14
20	20 48600953 Guiding Bush 8X10X10 As Required	48600953	US $6.95
21	21 48601021S Pressure Tank L74,5 D36 S Cpl As Required	48601021S	US $85.53
22	22 48601127 O-Ring 24X2 As Required	48601127	US $4.66
23	23 48601111 Quad Ring 29,74X3,53 As Required	48601111	US $5.80
24	24 48601124 Bushing Do=36 Di=32 B5 As Required	48601124	US $10.52
25	25 48601110 Quad Ring 24,99X3,53 As Required	48601110	US $3.94
26	26 48601109 Slide Bearing As Required	48601109	US $3.67
27	27 48601031 Tube D20 L403 As Required	48601031	US $88.69
28	28 48601019 Screw Sleeve D20/28 As Required	48601019	US $52.90
29	29 48601030S Stop L75 Not Available As Required	48601030S	US $45.63
30	30 48601180 Bushing As Required	48601180	US $2.24
31	31 48601083 Nut M6X0,5 As Required	48601083	US $3.50
32	32 48600984S Piston Compression D=28 Cpl As Required	48600984S	US $35.33
33	33 48601133 O-Ring 24X1,5 As Required	48601133	US $1.24
34	34 48601020 Screw Cap M30 As Required	48601020	—
	replacement
34	34 48601247 SCREW CAP M30 As Required	48601247	US $34.36
35	35 48601132 O-Ring 26X2 As Required	48601132	US $1.50
36	36 50180222 O-ring nbr 4x1,5 As Required	50180222	US $1.02
37	37 48600527 Ah screw m4x6 As Required	48600527	US $0.87
38	38 48601117 Dial Compression White As Required	48601117	US $0.90
38	38 48601118 Dial Rebound Red As Required	48601118	US $2.77
39	39 48600481 Vent screw m4x8 As Required	48600481	US $2.33
40	40 48601050S Screw Cap M51X1,5 Reb. Kpl As Required	48601050S	—
	replacement
40	40 48601050E Screw Cap M51X1,5 Reb. Kpl As Required	48601050E	US $122.38
40	40 48601116S Screw Cap M51X1,5 Cpl As Required	48601116S	US $118.66
	replacement
40	40 48601116E Screw Cap M51X1,5 Cpl As Required	48601116E	US $118.66
41	41 48600048 O-ring nbr 46 x 2 As Required	48600048	US $1.94
42	42 48601034 Counternut M8 As Required	48601034	US $9.35
43	43 48601035 Spring Guidance D23 As Required	48601035	US $5.20
44	44 91410082S Spring D43,8 L465 3,8N/mm Set As Required	91410082S	US $223.13
44	44 91410083S Spring D43,8 L465 4,0N/mm Set As Required	91410083S	US $223.13
44	44 91410084S Spring D43,8 L465 4,2N/mm Set As Required	91410084S	US $223.13
44	44 91410085S Spring D43,8 L465 4,4N/mm Set As Required	91410085S	US $223.13
44	44 91410086S Spring D43,8 L465 4,6N/mm Set As Required	91410086S	US $223.13
44	44 91410092S Spring D43,8 L465 4,8N/mm Set As Required	91410092S	US $223.13
45	45 48600736 Outer tube l577 d54/60mm 2l As Required	48600736	US $435.66
46	46 48601008 Guiding Bush 47X49X20 R11 As Required	48601008	US $13.23
47	47 48601009 Guiding Bush 48X52X12 R11 As Required	48601009	US $13.23
48	48 48600013 Support ring 50 x 57,6 x 1,5 As Required	48600013	US $11.37
49	49 48601179 Oil Seal Ring 48X57,9X11,4 As Required	48601179	US $23.60
50	50 48600070 Lock washer sb58 As Required	48600070	US $2.35
51	51 48601178 Dust Seal Dl48X58,4X5,7 Red As Required	48601178	US $23.05
52	52 48601028S1 Axle Clamp L/s With Inner Tube As Required	48601028S1	US $600.12
53	53 48601029S1 Axle Clamp R/s With Inner Tube As Required	48601029S1	US $572.99
54	54 0025080256 Hh Collar Screw M8X25 Tx40 TX40	0025080256	US $4.10
55	55 48600456 Spacer 43x35x2,5 As Required	48600456	US $28.70
55	55 48600457 Spacer 43x35x5 As Required	48600457	US $28.70
55	55 48600458 Spacer 43x35x1,5 As Required	48600458	US $28.70
83	83 48601166S1 Fork Oil Sae4 5L As Required	48601166S1	US $218.08
98	98 T511 Silicone grease f. dust stri As Required	T511	US $132.91
99	99 R24001 Repair - Kit As Required	R24001	US $219.61

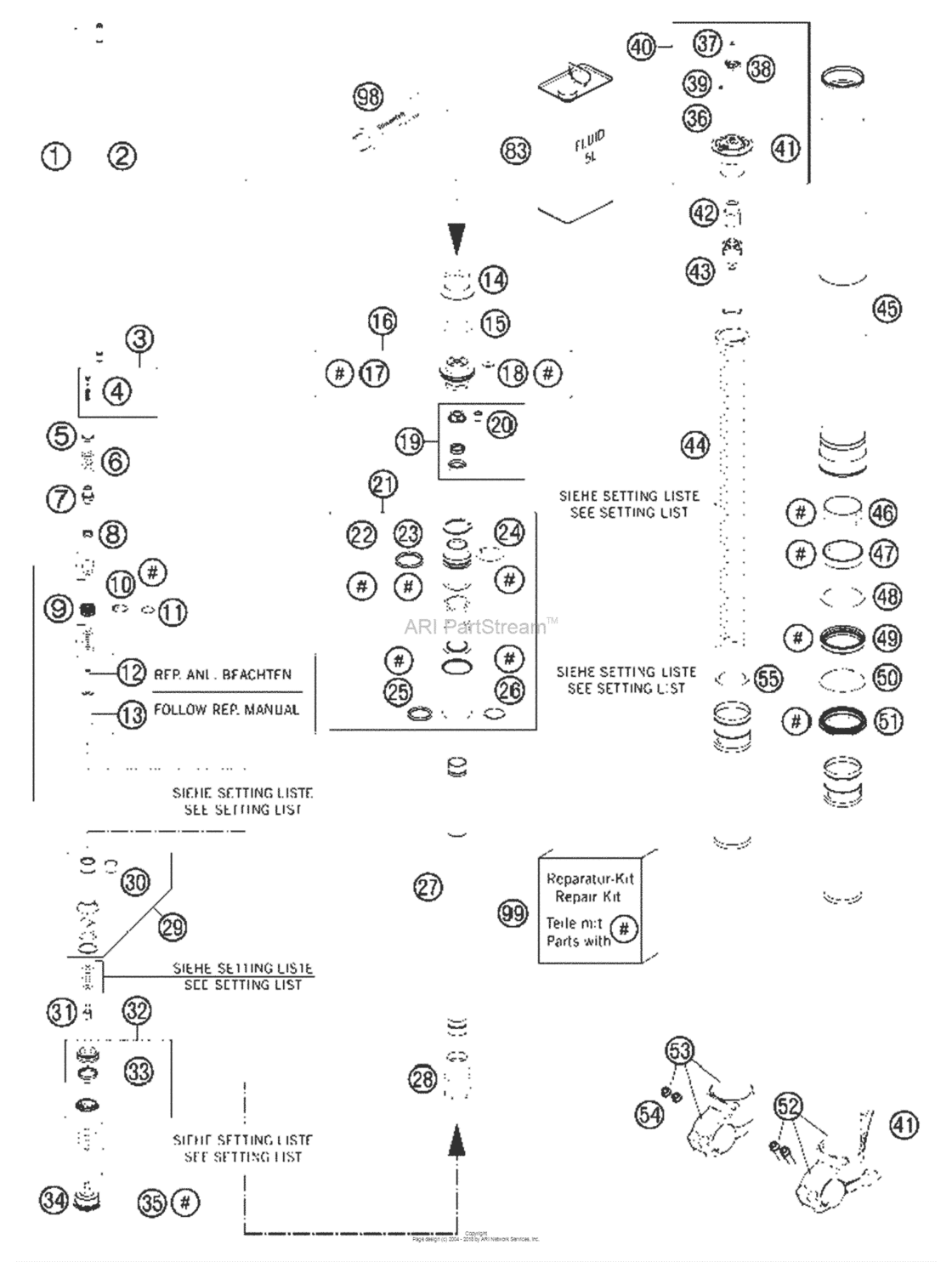

Front Fork Disassembled Diagram KTM HUSABERG FE 350 US/EU 18110413-940877

Front Fork Disassembled Diagram KTM HUSABERG FE 350 US/EU 18110413-940877
