Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 77136020144 Cylinder Head Cpl TX30	77136020144	US $626.08
2	2 77030036000 Cylinder head gasket 05 05	77030036000	US $39.46
3	3 77036052100 Valve cover 06 06	77036052100	US $37.38
4	4 77036053000 Valve cover gasket 05 05	77036053000	US $9.20
5	5 77036055100 Valve cover scr. m6x12 ws10 07 07	77036055100	US $2.48
6	6 77036054050 Rubber gasket for screw 05 05	77036054050	US $9.33
7	7 77036052050 Cover plate breather 05 05	77036052050	US $16.97
8	8 0009050106 Ejot Spiral Screw Sf M5X10-K 05	0009050106	US $2.60
9	9 60038082000 Angle connector lc8 03 03	60038082000	US $16.81
10	10 0770080020 O-ring 8x2 silicone 03	0770080020	US $0.66
11	11 77036081000 Special screw m7x73 ws 10 03	77036081000	US $2.81
12	12 77036080000 Special screw m7x40 ws10 03	77036080000	US $4.39
13	13 61036047000 Hose clamp gemi 63mm 05 05	61036047000	US $7.46
14	14 77036024000 Collar nut 7x1 05 05	77036024000	US $4.18
15	15 77036023000 Stud 7x1 05 05	77036023000	US $4.85
16	16 77036020150 Bush support a.bridge cpl '05 '05	77036020150	—
17	17 0402050980 Needle roller din5402 5x9,8 '05	0402050980	US $0.80
18	18 60030063050 Oil jet 50 05 05	60030063050	US $7.92
19	19 77036090000 Dowel(bush bridge)7/9/8 05 05	77036090000	US $4
20	20 77136025001 Valve Guide Intake 05	77136025001	US $26.69
21	21 77136026001 Valve Guide Outlet 05	77136026001	US $35.22
22	22 77036079000 Cylinder head screw 05 05	77036079000	US $9.20
23	23 59036090000 Washer 10,8x18,8x1,5 05	59036090000	US $0.54
24	24 77036041000 Gasket exhaust flange 06 06	77036041000	US $6.26
25	25 77036039100 Exhaust Flange Cpl. 07 07	77036039100	US $54.55
26	26 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
27	27 0025060256 Hh collar screw m6x25 tx30 TX30	0025060256	US $2.45
28	28 77236044000 Connection Rubber Efi TX30	77236044000	US $38.22
29	29 77236048000 Hose Clamp Gemi 58Mm TX30	77236048000	US $12.09
30	30 0770100020 O-ring 10,00x2,00 silcone TX30	0770100020	US $2.02
31	31 60011252000 Temperat.-sensor water lc8 02 02	60011252000	US $38.01
32	32 77438087000 Engine Breather Hose 02	77438087000	US $10.68
33	33 00049160121 Clamp std dn16 02	00049160121	US $1.05
34	34 58030010200 Screw In Nozzle M20X1,5 02	58030010200	US $8.82

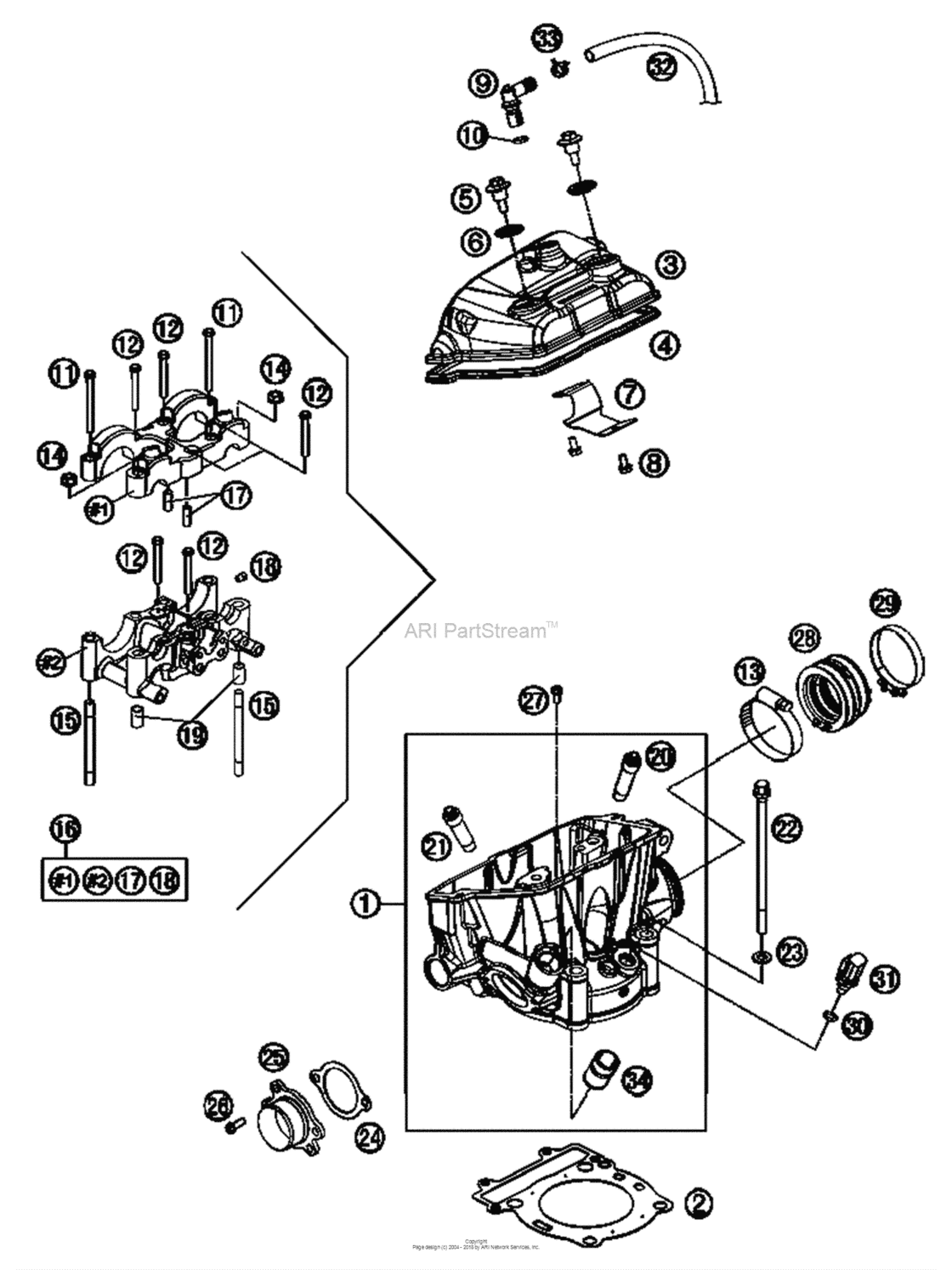

Cylinder Head Diagram KTM HUSABERG FE 250 US/EU 18110474-940881

Cylinder Head Diagram KTM HUSABERG FE 250 US/EU 18110474-940881
