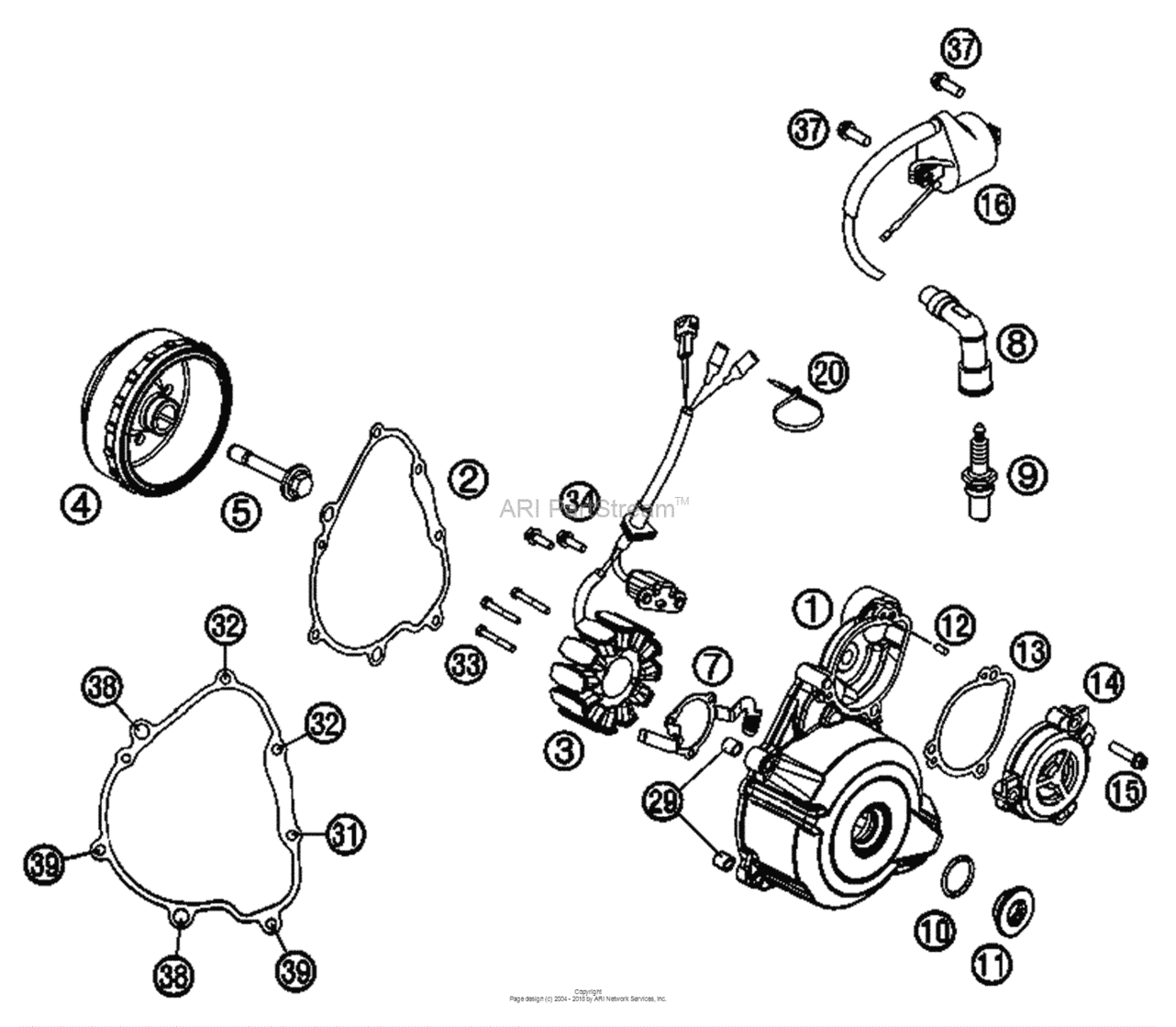

Ignition System Diagram KTM HUSABERG FE 250
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- FE 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7743000200015 Ignition Cover05-11 Not Available |
7743000200015 |
US $146.66 |
||
|
2
|
2
77130040000 Ignition Cover Gasket05-11 Not Available |
77130040000 |
US $22.51 |
||
|
3
|
3
77439004000 Stator05-11 Not Available |
77439004000 |
US $238.32 |
||
|
4
|
4
77539005000 Rotor05-11 Not Available |
77539005000 |
US $463.15 |
||
|
5
|
5
77339010100 Flywheel screw05-11 Not Available |
77339010100 |
US $4.66 |
||
|
7
|
7
77430002050 Retaining Plate05-11 Not Available |
77430002050 |
US $23.63 |
||
|
8
|
8
77139090000 Spark Plug Connector05-11 Not Available |
77139090000 |
US $56.17 |
||
|
9
|
9
77039093000 Spark plug (NGK CR9EKB) -05'05 |
77039093000 |
US $22.08 |
||
|
10
|
10
07700240251 O-ring 24x2,5 viton'05 |
07700240251 |
US $3.96 |
||
|
11
|
11
7723000206030
Screw Plug M24X1,5
'05 |
7723000206030 |
— | ||
| replacement | |||||
|
11
|
11
7723000216030 Screw Plug M24X1,5'05 |
7723000216030 |
US $39.24 |
||
|
12
|
12
0402040980 Needle Rol.din5402 Nrb 4X9,8'05 |
0402040980 |
US $1.77 |
||
|
13
|
13
77240043000 Gasket torque limiter'05 |
77240043000 |
US $2.84 |
||
|
14
|
14
7723000201015 Cover Torque Limiter'05 |
7723000201015 |
US $32.57 |
||
|
15
|
15
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
16
|
16
58439006000 Ignitioncoil ig3826 kokusan'96'96 |
58439006000 |
US $83.22 |
||
|
20
|
20
44011076140 Cable tie 140/2,5mm blackAs Required |
44011076140 |
US $0.29 |
||
|
29
|
29
49030090000 Dowel 9,8 x 7 x 10As Required |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
29
|
29
49030090100 Dowel 9,8 X7X10As Required |
49030090100 |
US $2.60 |
||
|
31
|
31
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
32
|
32
0025060506 Hh collar screw m6x50 tx30TX30 |
0025060506 |
US $3.30 |
||
|
33
|
33
0912050303 Ah Screw Din0912-M 5X30TX30 |
0912050303 |
US $0.66 |
||
|
34
|
34
0025050126 Hh collar screw m5x12 tx30TX30 |
0025050126 |
US $3.38 |
||
|
37
|
37
0026060186 Collar Screw M6X18 Isa30TX30 |
0026060186 |
US $0.58 |
||
|
38
|
38
0025060356 Hh collar screw m6x35 tx30TX30 |
0025060356 |
US $6.15 |
||
|
39
|
39
0025060906 Hh collar screw m6x90 tx30TX30 |
0025060906 |
US $2.53 |
||
