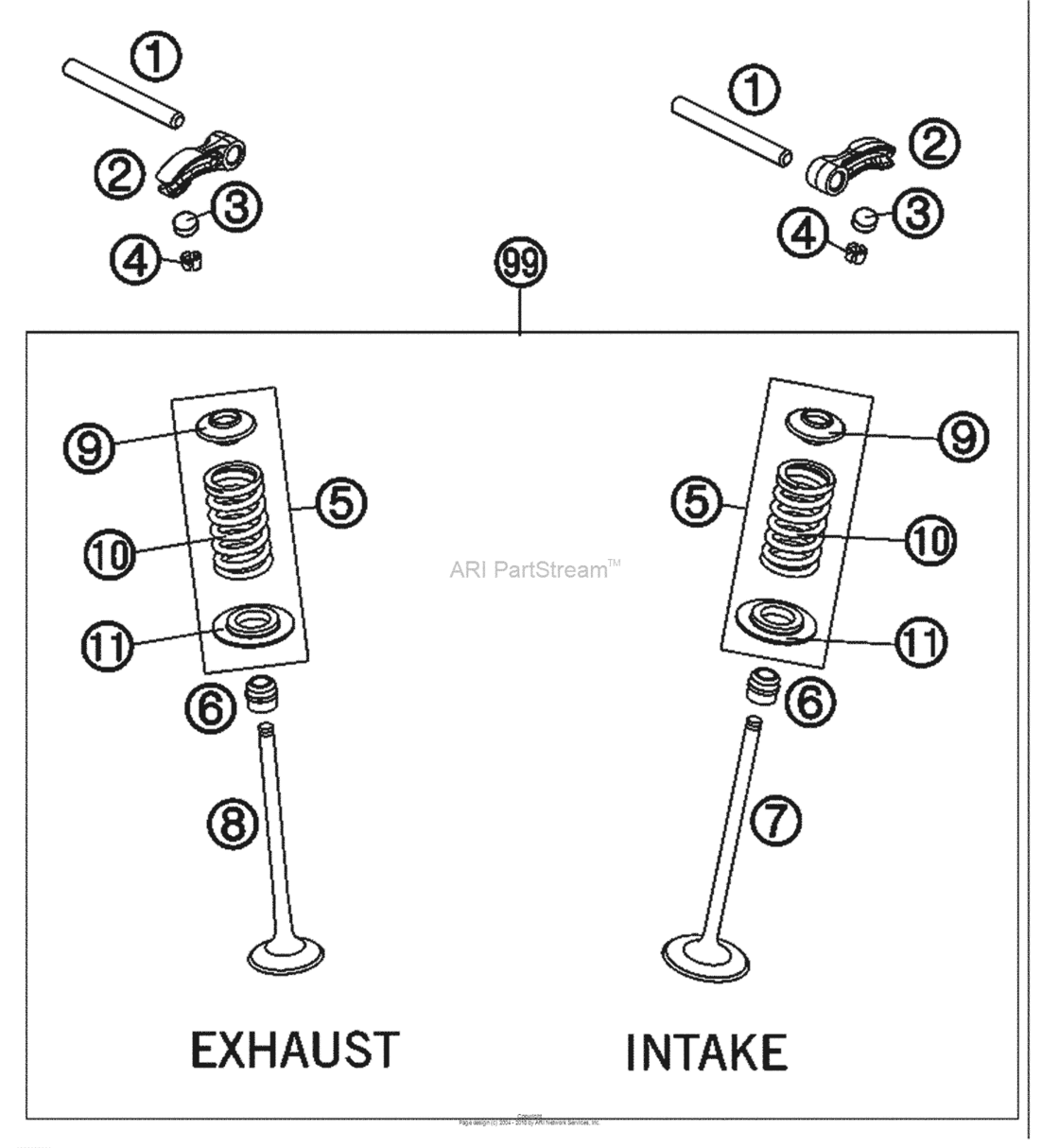

Valve Drive Diagram KTM HUSABERG FE 250
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- FE 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77036056000 Valve lever shaft 0505 |
77036056000 |
US $6.58 |
||
|
2
|
2
77036060100 Valve lever05 |
77036060100 |
US $84.49 |
||
|
3
|
3
77036035172 Shim d=8,9/1,72As Required |
77036035172 |
US $5.71 |
||
|
3
|
3
77036035176 Shim d=8,9/1,76As Required |
77036035176 |
US $5.71 |
||
|
3
|
3
77036035180 Shim d=8,9/1,80As Required |
77036035180 |
US $5.71 |
||
|
3
|
3
77036035184 Shim d=8,9/1,84As Required |
77036035184 |
US $5.71 |
||
|
3
|
3
77036035188 Shim d=8,9/1,88As Required |
77036035188 |
US $5.71 |
||
|
3
|
3
77036035192 Shim d=8,9/1,92As Required |
77036035192 |
US $5.71 |
||
|
3
|
3
77036035196 Shim d=8,9/1,96As Required |
77036035196 |
US $5.71 |
||
|
3
|
3
77036035200 Shim d=8,9/2,00As Required |
77036035200 |
US $5.71 |
||
|
3
|
3
77036035204 Shim d=8,9/2,04As Required |
77036035204 |
US $5.71 |
||
|
3
|
3
77036035208 Shim d=8,9/2,08As Required |
77036035208 |
US $5.71 |
||
|
3
|
3
77036035212 Shim d=8,9/2,12As Required |
77036035212 |
US $5.71 |
||
|
3
|
3
77036035216 Shim d=8,9/2,16As Required |
77036035216 |
US $5.71 |
||
|
3
|
3
77036035220 Shim d=8,9/2,20As Required |
77036035220 |
US $5.71 |
||
|
3
|
3
77036035224 Shim d=8,9/2,24As Required |
77036035224 |
US $5.71 |
||
|
3
|
3
77036035228 Shim d=8,9/2,28As Required |
77036035228 |
US $5.71 |
||
|
3
|
3
77036035232 Shim d=8,9/2,32As Required |
77036035232 |
US $5.71 |
||
|
3
|
3
77036035236 Shim d=8,9/2,36As Required |
77036035236 |
US $5.71 |
||
|
3
|
3
77036035240 Shim d=8,9/2,40As Required |
77036035240 |
US $5.71 |
||
|
3
|
3
77036035244 Shim d=8,9/2,44As Required |
77036035244 |
US $5.71 |
||
|
3
|
3
77036035248 Shim d=8,9/2,48As Required |
77036035248 |
US $5.71 |
||
|
3
|
3
77036035252 Shim d=8,9/2,52As Required |
77036035252 |
US $5.71 |
||
|
3
|
3
77036035256 Shim d=8,9/2,56As Required |
77036035256 |
US $5.71 |
||
|
3
|
3
77036035260 Shim d=8,9/2,60As Required |
77036035260 |
US $5.71 |
||
|
4
|
4
77036033000 Valve collet 0505 |
77036033000 |
US $7.89 |
||
|
5
|
5
77036028344 Valve spring kit 0808 |
77036028344 |
US $36.21 |
||
|
6
|
6
77036027000 Valve-stem sealing 0505 |
77036027000 |
US $6.55 |
||
|
7
|
7
77136030100 Intake Valve05 |
77136030100 |
US $186.90 |
||
|
8
|
8
77136031000 Exhaust valve titan 0505 |
77136031000 |
US $189.67 |
||
|
9
|
9
77036032300 Valve spring retainer05 |
77036032300 |
US $13.14 |
||
|
10
|
10
77036028300 Valve spring inside05 |
77036028300 |
US $10.61 |
||
|
11
|
11
77036036300 Valve spring holder05 |
77036036300 |
US $5.34 |
||
|
99
|
99
77036030110 Valve kit 08-108-12 |
77036030110 |
US $618.38 |
