Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 90535065033 Expansion Tank Cpl As Required	90535065033	US $18.07
2	2 90135066000 Plug F. Expansion Tank As Required	90135066000	US $2.43
3	3 90507013008 Tube Drain As Required	90507013008	US $1.36
4	4 90107018011 Clamp 10Mm As Required	90107018011	US $0.99
5	5 90135067050 Hose 6X10X154 Mm As Required	90135067050	US $1.68
6	6 90102055000 Expansion Tank O-Ring As Required	90102055000	US $0.58
7	7 90135074000 Special Screw M6X12 Flanged As Required	90135074000	US $1.02
8	8 90135065050 Grommet Expansion Tank As Required	90135065050	US $0.65
9	9 90135016100 Radiator Cap As Required	90135016100	US $14.91
10	10 90835010133 Radiator Cpl. With Fan As Required	90835010133	US $321.37
11	11 90235001001 Silent Bush M6 As Required	90235001001	US $3.98
12	12 J127060003 Washer Spring B6 As Required	J127060003	US $0.58
13	13 J926060000 Flanged Nut M6 Ws10 Self Lock As Required	J926060000	US $0.92
14	14 J026060083 Hh Collar Screw M6X8 Sw10 As Required	J026060083	US $0.58
15	15 J025060103 Hh Collar Screw M6X10 Sw10 As Required	J025060103	US $0.73
16	16 90803001183 Bracket Radiator L/s As Required	90803001183	US $1.63
17	17 90803001083 Bracket Radiator R/s As Required	90803001083	US $1.87
18	18 90835041033 Fan Cpl As Required	90835041033	US $180.69
	replacement
18	18 93235041033 FAN CPL. As Required	93235041033	US $180.69
19	19 90135026000 Cooling Pipe T Cpl As Required	90135026000	US $15.86
20	20 90135099000 Collar Screw M6X12 As Required	90135099000	US $0.58
21	21 90135020001 Hose Clamp D26 As Required	90135020001	US $6.15
22	22 90135020003 Hose Clamp D28 As Required	90135020003	US $6.15
23	23 90135020002 Hose Clamp D24 As Required	90135020002	US $6.15
24	24 90135017000 Thermostat As Required	90135017000	US $29.27
25	25 90835024030 Cooling Hose Radiator-Pipe T As Required	90835024030	US $6.49
26	26 90235024010 Hose Coolant Therm. To T-Pipe As Required	90235024010	US $27.47
27	27 90835024020 Cooling Hose Thermostat As Required	90835024020	US $7.16
28	28 90235025000 Hose Coolant Engine - Therm As Required	90235025000	US $21.68
30	30 J770018530 O-Ring 18,5X3 As Required	J770018530	US $1.46

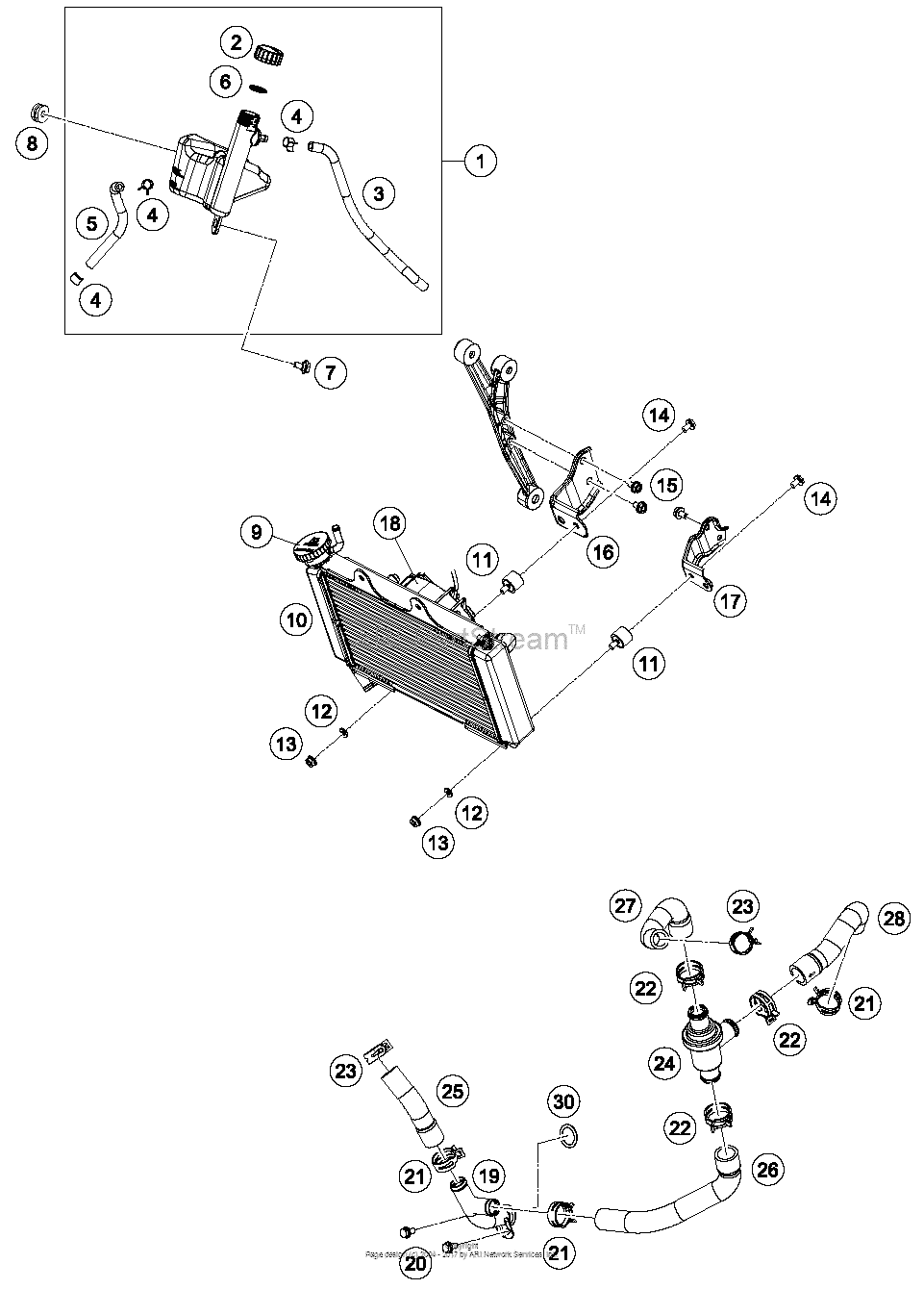

Cooling System Diagram KTM RC 390 RC 390 US/EU 18110656-940891

Cooling System Diagram KTM RC 390 RC 390 US/EU 18110656-940891
