	Description	OEM Part #	Price
1	1 90230018100 Crankshaft Cpl As Required	90230018100	—
2	2 90230055000 Gear Balancer Drive As Required	90230055000	US $26.84
3	3 90230069000 Conical Washer 28,35X38X1,75 As Required	90230069000	US $0.92
4	4 90130018008 Nut For Drive Wheel Agw As Required	90130018008	US $5.27
6	6 90239005050 Rotor Screw Cpl As Required	90239005050	US $4.81
7	7 90232023030 Primary Gear 30T As Required	90232023030	US $35.80
8	8 90236014000 Sprocket Crankshaft As Required	90236014000	US $15.40
9	9 90236015000 Washer Plain As Required	90236015000	US $1.46
10	10 90236015001 Special Washer As Required	90236015001	US $0.43
11	11 90230029000 Nut M16X1,5 As Required	90230029000	US $3.81
12	12 J888040050 Woodruff Key 4X5X13 As Required	J888040050	US $1.22
13	13 90230015000 Con Rod Cpl As Required	90230015000	US $67.93
14	14 90630015002 Parallel Pin As Required	90630015002	US $0.90
15	15 90230015013 Con Rod Screw As Required	90230015013	US $4.37
16	16 90230015010 Conrod Bearing Shell As Required	90230015010	US $15.67
16	16 90230015011 Conrod Bearing Shell (Green) As Required	90230015011	US $14.16
16	16 90230015012 Conrod Bearing Shell (Blue) As Required	90230015012	US $14.09
17	17 90230007000 Piston D89 As Required	90230007000	—
	replacement
17	17 90230007200 PISTON D89 As Required	90230007200	US $324.41
18	18 90230030010 Piston Rings Cpl As Required	90230030010	US $124.75
19	19 90230074000 Ring Snap As Required	90230074000	US $3.04
20	20 90230033000 Piston Pin As Required	90230033000	US $22.51
21	21 90230068000 Plain Washer 28,2X39X1,5 As Required	90230068000	US $0.75
22	22 90134013000 Parallel Pin As Required	90134013000	US $0.58
99	99 90230007010 Piston Kit 390 Duke 2013 2013	90230007010	US $428.15

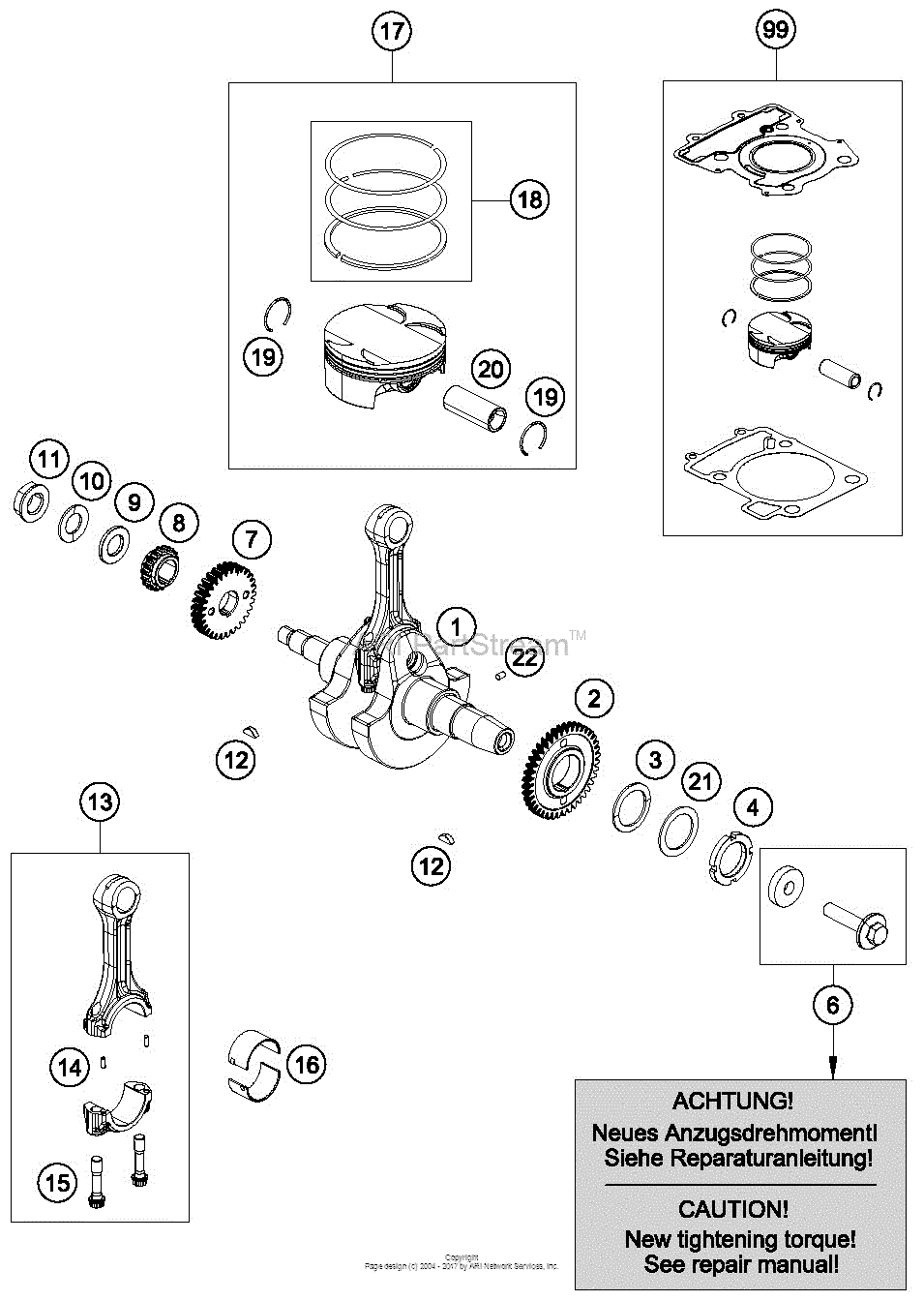

Crankshaft, Piston Diagram KTM RC 390 RC 390 US/EU 18110657-940891

Crankshaft, Piston Diagram KTM RC 390 RC 390 US/EU 18110657-940891
