	Description	OEM Part #	Price
1	1 90230002133 Ignition Cover With Plug As Required	90230002133	US $78.95
2	2 90230040000 Gasket Ignition Cover As Required	90230040000	—
	replacement
2	2 93730040000 Gasket Ignition Cover As Required	93730040000	US $7.45
3	3 90839004000 Stator Cpl As Required	90839004000	US $87.31
4	4 90239005000 Rotor Cpl As Required	90239005000	US $230.45
5	5 90139010000 Plug As Required	90139010000	US $3.13
6	6 J770015824 O-Ring 15,8X2,4 As Required	J770015824	US $2.18
7	7 90130024000 Pin Dowel 8X6,4X14Mm As Required	90130024000	US $0.58
8	8 J025060083S Hh Collar Screw M6X8 As Required	J025060083S	US $0.58
9	9 90230062000 Bracket Harness Magneto As Required	90230062000	US $0.99
10	10 90239006044 Ignition Coil Cpl As Required	90239006044	US $41.99
11	11 90239090001 Rubber Gasket Spark Plug As Required	90239090001	US $1.50
12	12 90139093001 Rubber Gasket Spark Plug As Required	90139093001	US $1.22
13	13 90139093100 Spark Plug Vr5Ne As Required	90139093100	US $14.50
14	14 90230060002 Chain Sprocket Guard As Required	90230060002	US $11.05
15	15 J025060500 Flanged Bolt M6X50 Ws8 As Required	J025060500	US $1.05
16	16 J025060350 Flanged Bolt M6X35 Ws8 As Required	J025060350	US $0.58
17	17 J770024015 O-Ring 24X2,5 As Required	J770024015	US $4.35
18	18 90230094000 Plug Screw M24X1,5 As Required	90230094000	US $2.60
19	19 90240018000 Bush Starter Shaft As Required	90240018000	US $2.75
20	20 90230066200 Oil Nozzle As Required	90230066200	US $0.71
21	21 90239005050 Rotor Screw Cpl As Required	90239005050	US $4.81
23	23 90530002010 Socket Head Bolt M5X0,8X40 As Required	90530002010	US $0.58
24	24 90230058000 Plate Harness Magneto As Required	90230058000	US $2.19
26	26 90130001001 Socket Head Screw M6X20 As Required	90130001001	US $0.58
27	27 90130001002 Toothed Lock Washer As Required	90130001002	US $0.58
28	28 90130059000 Hh Collar Screw M6X16 As Required	90130059000	US $0.58
29	29 90240020002 Retainer Gear Starter As Required	90240020002	US $0.58
30	30 J025060209 Hh Collar Screw M6X20 As Required	J025060209	US $0.58
31	31 90130001000 Support Freewheel Clutch As Required	90130001000	US $39.49
32	32 90140026000 Freewheel Clutch As Required	90140026000	US $86.82

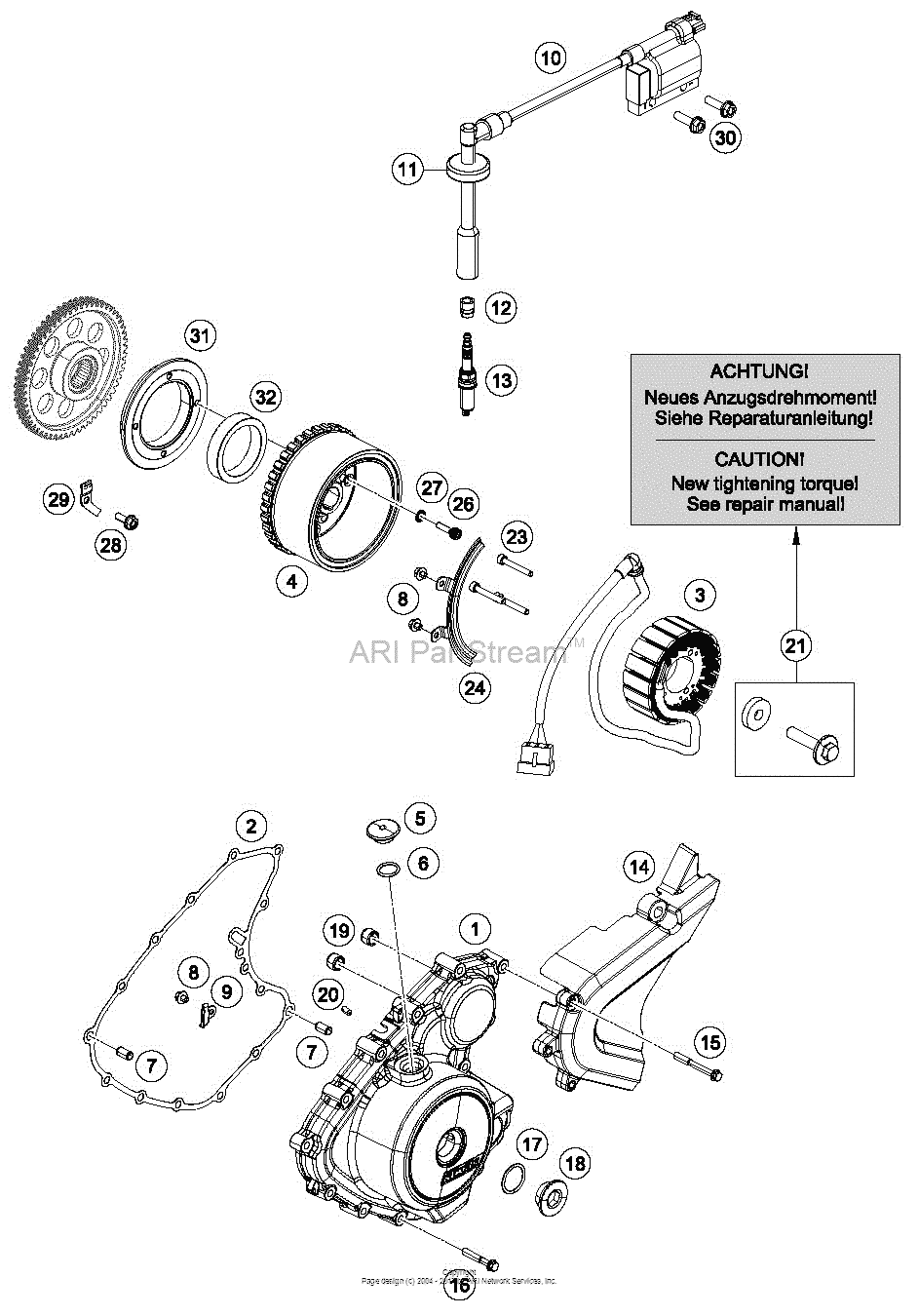

Ignition System Diagram KTM RC 390 RC 390 US/EU 18110662-940891

Ignition System Diagram KTM RC 390 RC 390 US/EU 18110662-940891
