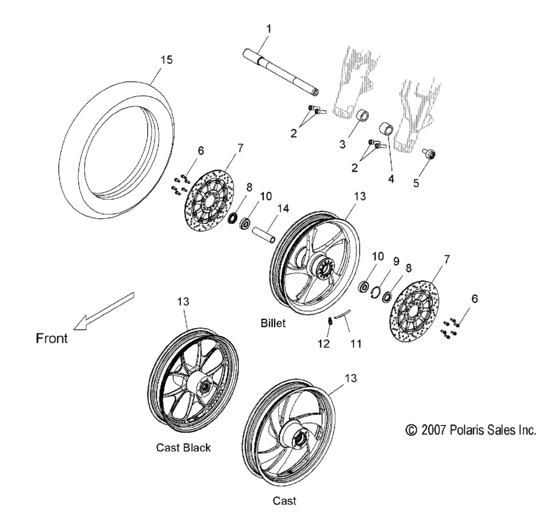

Wheels, front (V08HB26/HS26 ALL OPTIONS) Diagram Polaris HAMMER ALL OPTIONS
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5133593
Axle-front
|
5133593 |
— | ||
|
2
|
2
7517361 Screw |
7517361 |
US $15.26 |
||
|
3
|
3
5631479 Spacer-brg,rr wheel,lh,pm |
5631479 |
US $2.98 |
||
|
4
|
4
5631481 Spacer-brg,frt wheel,left,pm |
5631481 |
US $3.75 |
||
|
5
|
5
7517936
Scr-m10 x 1,5 x 20,shcp
|
7517936 |
— | ||
|
6
|
6
7518661
Scr-hxflghd,m8x25,rotor bolt
|
7518661 |
— | ||
|
7
|
7
1910959-385
Rotor, brake, silver
Hammer; |
1910959-385 |
— | ||
|
7
|
7
1910959-266
Rotor, brake, black
Hammer S; |
1910959-266 |
— | ||
| replacement | |||||
|
7
|
7
1911624-266 Rotor,brake,5mm,blkHammer S; |
1911624-266 |
US $399.81 |
||
|
8
|
8
3610094 Seal-30x52x7 |
3610094 |
US $19.69 |
||
|
9
|
9
7710526 Ring-rtng,int,52x2,0 |
7710526 |
US $8.66 |
||
|
10
|
10
3514405 Bearing-ball,20mmx52mmx15mm |
3514405 |
US $54.18 |
||
|
11
|
11
1520618
Weight-balance,1/4 oz,slv (10)
|
1520618 |
— | ||
|
12
|
12
1520995
Valve-rim,chr,8mm (ness)
|
1520995 |
— | ||
|
12
|
12
1520232 Valve,rim |
1520232 |
US $2.66 |
||
|
13
|
13
1521034-405 Asm-whl,ft,18x3,blt,dual,polIncl. 6,7,8,11,14; |
1521034-405 |
US $1,811.50 |
||
|
13
|
13
1521027-266 Asm-whl,ft,18x3,dual,blkCast;Incl. 6,7,8,11,14; |
1521027-266 |
US $706.60 |
||
|
13
|
13
1520726-409 Asm-whl,cast,fr,18x3,dl,clrIncl. 6,7,8,11,14; |
1520726-409 |
US $827.19 |
||
|
14
|
14
5334135 Spacer-brg,frt wheel,mid |
5334135 |
US $17.24 |
||
|
15
|
15
5412521 Tire-front,3,0x18,radial |
5412521 |
US $341.50 |
||
