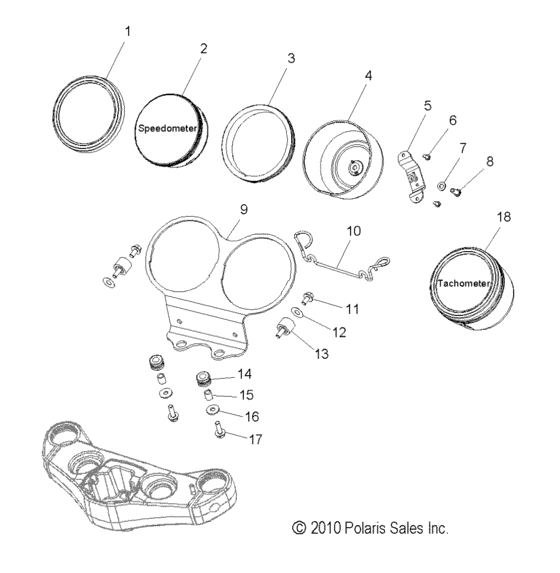

Electrical, speedometer (V11HA36/HB36/HS36 ALL OPTIONS) Diagram Polaris HAMMER ALL OPTIONS
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5438428-156 Cvr-speedo bezel,cpi,a3,chr |
5438428-156 |
US $44.52 |
||
|
2
|
2
3280541
Speedo-victory,cpi a3
|
3280541 |
— | ||
|
3
|
3
5438389 Grommet-gauge,vic |
5438389 |
US $1.77 |
||
|
4
|
4
5438621-156 Cover-speedo,cpi,chr |
5438621-156 |
US $88.60 |
||
|
5
|
5
1016677 Bracket, gauge cup |
1016677 |
US $22.73 |
||
|
6
|
6
7518864 Scr-txph-m4x1,79x10 8,8 zy3 |
7518864 |
US $2.98 |
||
|
7
|
7
7556088 Washer,flat |
7556088 |
US $2.45 |
||
|
8
|
8
7519025 Scr-sh-m6x1,0x16 a2 ep d204 |
7519025 |
US $9.85 |
||
|
9
|
9
5254044-156 Brkt-tach mnt,cpi,crsr,chr |
5254044-156 |
US $194.97 |
||
|
10
|
10
5336359-266 Loom-wire,bar cbls,dual,xl,blk |
5336359-266 |
US $91.60 |
||
|
11
|
11
7517704
Screw
|
7517704 |
— | ||
|
12
|
12
7556379 Wshr-m8x19x5,600 grit,adhesiv |
7556379 |
US $2.45 |
||
|
13
|
13
5412297 Mount-isolator,60 duro,m6 |
5412297 |
US $22.45 |
||
|
14
|
14
5412201 Grommet-,38"idx,75"odx,5"thk |
5412201 |
US $4.94 |
||
|
15
|
15
5133550 Sleeve-,38"odx,25"idx,48"l |
5133550 |
US $7.18 |
||
|
16
|
16
7556064
Washer
|
7556064 |
— | ||
|
17
|
17
7518141 Scr-hxflghd,m6x20,zpc |
7518141 |
US $12.79 |
||
|
18
|
18
3280542
Tach-victory,6000 rpm,cpi a2
|
3280542 |
— |
