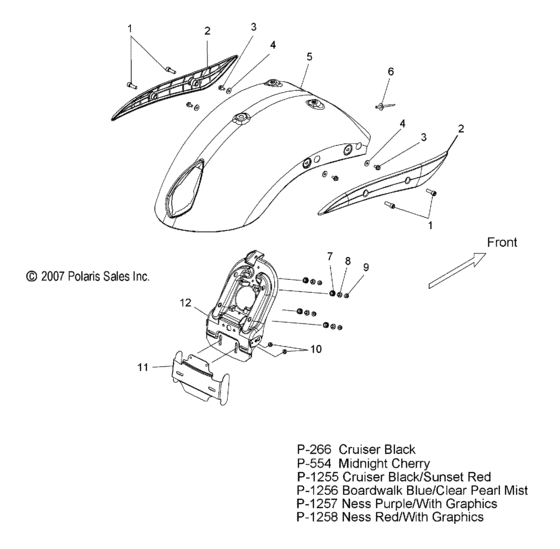

Body, fender, rear (V08BC26/XB26 ALL OPTIONS) Diagram Polaris JACKPOT ALL OPTIONS
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518084 Scr-sochd,m8x25 |
7518084 |
US $5.22 |
||
|
2
|
2
5631840-156 Cvr-strut,250,rh,cast,chr |
5631840-156 |
US $193.01 |
||
|
2
|
2
5631839-156 Cvr-strut,250,lh,cast,chr |
5631839-156 |
US $208.08 |
||
|
3
|
3
7517704
Screw
|
7517704 |
— | ||
|
4
|
4
7556064
Washer
|
7556064 |
— | ||
|
5
|
5
1014978-1258
Weld-fender,rear,jp,ness red
|
1014978-1258 |
— | ||
|
5
|
5
1014978-1255 Weld-fender,rear,jp,blk/red |
1014978-1255 |
US $1,199.45 |
||
|
5
|
5
1014978-554
Weld-fender,rear,jp,cherry
|
1014978-554 |
— | ||
|
5
|
5
1014978-266 Weld-fender,rear,vx,blk |
1014978-266 |
US $1,454.51 |
||
|
5
|
5
1014978-1257 Weld-fender,rear,jp,ness prpl |
1014978-1257 |
US $1,295.96 |
||
|
5
|
5
1014978-1256 Weld-fender,rear,jp,bwb |
1014978-1256 |
US $1,199.45 |
||
|
6
|
6
7081040 Rivet-plastic,r-lock,,197 dia ( |
7081040 |
US $5.69 |
||
|
7
|
7
5412265
Grommet-,38"idx,62"odx,28"thk
|
5412265 |
— | ||
|
8
|
8
5134889 Spacer-top hat |
5134889 |
US $3.75 |
||
|
9
|
9
7710495
Nut
|
7710495 |
— | ||
|
10
|
10
7670054
Nut, push-on (10)
|
7670054 |
— | ||
|
11
|
11
1015165-463 Weld-brkt,lp mod,lwr,jp,fblk |
1015165-463 |
US $76.81 |
||
|
12
|
12
5435956 Brkt-lp module,upper,vx |
5435956 |
US $38.61 |
