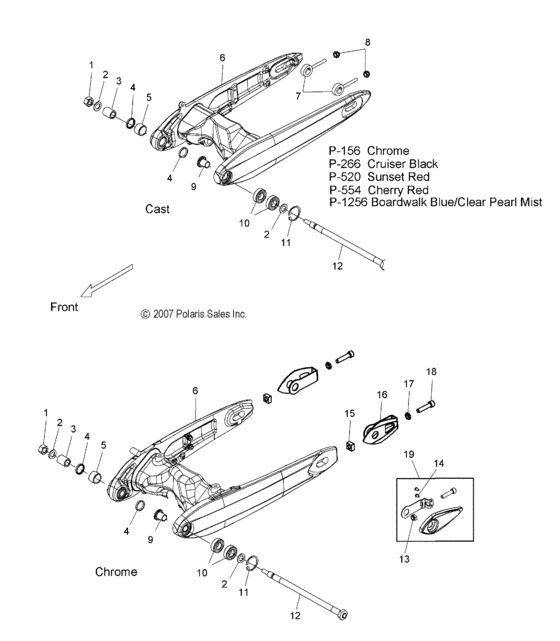

Suspension, swing arm (V08BC26/XB26 ALL OPTIONS) Diagram Polaris JACKPOT ALL OPTIONS
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7540001 Nut-m16x1,5 |
7540001 |
US $3.26 |
||
|
2
|
2
7556236 Wshr-fl,17x2,5 |
7556236 |
US $5.22 |
||
|
3
|
3
5133475
Bushing-swingarm needle brg
|
5133475 |
— | ||
|
4
|
4
3610096 Seal |
3610096 |
from US $15.75 |
||
|
5
|
5
3514413 Bearing-needle roller |
3514413 |
US $17.73 |
||
|
6
|
6
1015380-554 Asm-sarm w/brgs,cast,250,chrryIncl. 4,5,10,11; |
1015380-554 |
US $772.07 |
||
|
6
|
6
1015380-1256 Asm-sarm w/brgs,cast,250,bwbIncl. 4,5,10,11; |
1015380-1256 |
US $275.75 |
||
|
6
|
6
1015323-156 Asm-swingarm w/brgs,250,chrIncl. 4,5,10,11; |
1015323-156 |
US $1,282.17 |
||
|
6
|
6
1015380-266 Asm-sarm w/brgs,cast,250,blkIncl. 4,5,10,11; |
1015380-266 |
US $841 |
||
|
6
|
6
1015380-520 Asm-sarm w/brgs,cast,250,redIncl. 4,5,10,11; |
1015380-520 |
US $827.19 |
||
|
7
|
7
1014895
Adjuster-axle,06
|
1014895 |
— | ||
|
8
|
8
7547144 Nut,nylok m8x1,25(10) * |
7547144 |
US $0.79 |
||
|
9
|
9
5631478 Bushing-swingarm ball brg,pm |
5631478 |
US $4.43 |
||
|
10
|
10
3514414 Bearing-ball |
3514414 |
US $18.76 |
||
|
11
|
11
7670149 Ring-rtng,int,42x1,72 |
7670149 |
US $5.43 |
||
|
12
|
12
1014610
Shaft,swingarm pivot
|
1014610 |
— | ||
|
13
|
13
7547268 Nut-nyloc m10x1,5,ref |
7547268 |
US $1.49 |
||
|
14
|
14
7517406 Screw |
7517406 |
US $3.26 |
||
|
15
|
15
5134437 Nut-axle adjuster |
5134437 |
US $10.36 |
||
|
16
|
16
5247599 Brkt-axle adjust |
5247599 |
US $15.26 |
||
|
17
|
17
7547284 Nut-hexhd,jam,m10,0600092 |
7547284 |
US $1.49 |
||
|
18
|
18
7518485
Scr-sochd-m10x50,0600084
|
7518485 |
— | ||
|
19
|
19
2875300-156
Axle adjusters, chrome
Incl. 13,14; |
2875300-156 |
— |
