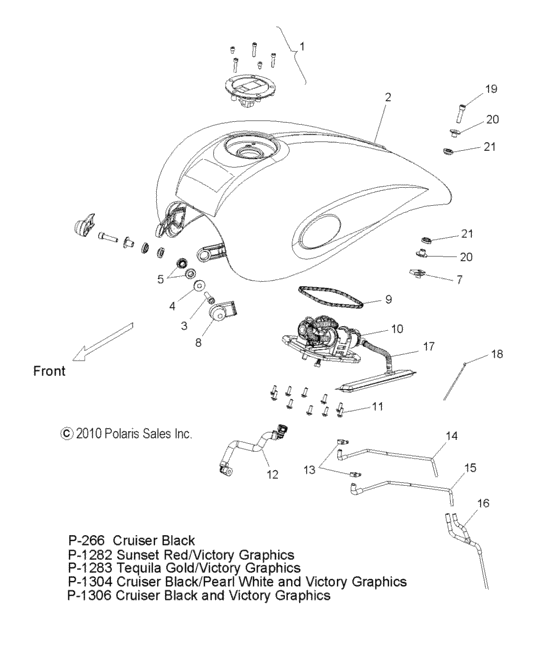

Body, fuel tank (V11XB36 ALL OPTIONS) Diagram Polaris JACKPOT ALL OPTIONS
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517845 Scr-sochd,m5x12 |
7517845 |
US $3.75 |
||
|
1
|
1
7518086 Scr-sochd,m5x25 |
7518086 |
US $3.94 |
||
|
1
|
1
4012376-266 Asm-ign switch/fuel cap,blk |
4012376-266 |
US $271.78 |
||
|
1
|
1
7517515 Screw,sochd,m5x8 |
7517515 |
US $5.18 |
||
|
1
|
1
4012377-266 Asm., ignition/fuel cap, silverInt`l; |
4012377-266 |
from US $409.66 |
||
|
2
|
2
1018003-266 Wld-tank,fuel,spine,blk |
1018003-266 |
US $2,348.68 |
||
|
2
|
2
1018003-1283 Wld-tank,fuel,spine,t gold/gfx |
1018003-1283 |
US $4,057.29 |
||
|
2
|
2
1018003-1304 Wld-tank,fuel,spine,blk/wht/gx |
1018003-1304 |
US $3,899.74 |
||
|
2
|
2
1018003-1306 Wld-tank,fuel,spine,blk/r gfx |
1018003-1306 |
US $3,899.74 |
||
|
2
|
2
1018003-1282 Wld-tank,fuel,spine,s red/gfx |
1018003-1282 |
US $3,899.74 |
||
|
3
|
3
7517525 Screw,sochd,m10x40 |
7517525 |
US $1.93 |
||
|
4
|
4
5136665 Bshg-flg,10,2x14x19,5 |
5136665 |
US $8.17 |
||
|
5
|
5
5412480 Bshg-flg,14x20,6x9,25,rbr |
5412480 |
US $1.77 |
||
|
7
|
7
7547233 Nut-u,m10x1,5,long |
7547233 |
US $8.66 |
||
|
8
|
8
5412414 Cover-fuel tank mnt,lh |
5412414 |
US $17.24 |
||
|
8
|
8
5412415 Cover-fuel tank mnt,rh |
5412415 |
US $35.12 |
||
|
9
|
9
5413346 Seal-fuel,molded |
5413346 |
US $27.58 |
||
|
10
|
10
2520811
Pump-fuel
Incl. 17; |
2520811 |
— | ||
|
11
|
11
7518923 Scr-flghd,m5x16,06000086 |
7518923 |
US $1 |
||
|
12
|
12
5413413 Line-fuel,tank to fuel rail |
5413413 |
US $76.81 |
||
|
13
|
13
7081151 Clamp-hose,9-14 mm clamp dia |
7081151 |
US $5.22 |
||
|
14
|
14
5435764 Line-water drain |
5435764 |
US $65.99 |
||
|
15
|
15
5437376
Line-fuel vent,low perm
|
5437376 |
— | ||
|
16
|
16
5435771 Line-water/fuel to ground |
5435771 |
US $67.34 |
||
|
17
|
17
2520909 Asm-filter,fuel |
2520909 |
US $140.32 |
||
|
18
|
18
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
19
|
19
7517946 Scr-hexhd,m10x50,0600088 |
7517946 |
US $4.73 |
||
|
20
|
20
5137570 Bshg-flg,10.0x12x19.5 |
5137570 |
US $34.16 |
||
|
21
|
21
5413491 Isolator, tank, rear |
5413491 |
from US $0.79 |
