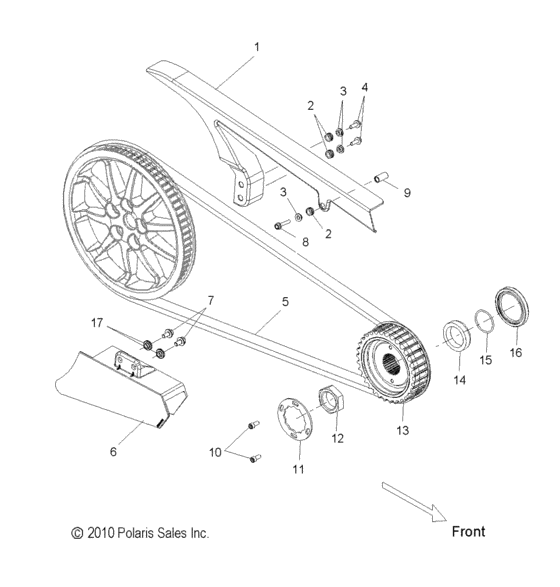

Drive train, drive sprocket and belt and guards (V11XB36 ALL OPTIONS) Diagram Polaris JACKPOT ALL OPTIONS
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5247719-156 Guard-belt,upper,250 tire,chr |
5247719-156 |
US $299.15 |
||
|
2
|
2
5412265
Grommet-,38"idx,62"odx,28"thk
|
5412265 |
— | ||
|
3
|
3
5134082
Sleeve-shouldered,m6
|
5134082 |
— | ||
|
4
|
4
7518141 Scr-hxflghd,m6x20,zpc |
7518141 |
US $12.79 |
||
|
5
|
5
3211102 Belt-victory drive,28mm,htd |
3211102 |
US $319.90 |
||
|
6
|
6
5438684 Guard-belt |
5438684 |
US $24.61 |
||
|
7
|
7
7518591 Scr-hxflghd,m6x16,0600086 |
7518591 |
US $1.49 |
||
|
8
|
8
7518591 Scr-hxflghd,m6x16,0600086 |
7518591 |
US $1.49 |
||
|
9
|
9
5135339 Spcr-belt guard |
5135339 |
US $7.09 |
||
|
10
|
10
7517272
Screw,sochd,m6x15
|
7517272 |
— | ||
|
11
|
11
5244114 Washer-lock plate m36 |
5244114 |
US $24.61 |
||
|
12
|
12
7547311 Nut-hex, thin m36 |
7547311 |
US $70.86 |
||
|
13
|
13
1332392 Asm-drive sprocket,33t,widewld |
1332392 |
US $304.27 |
||
|
14
|
14
5136989 Spacer-drive sprocket |
5136989 |
US $36.24 |
||
|
15
|
15
5413767 O-ring,39.34 x 2.62,0600083 |
5413767 |
US $3.26 |
||
|
16
|
16
3610118 Seal-lip |
3610118 |
US $39.38 |
||
|
17
|
17
5134083 Sleeve-turnsignal mount |
5134083 |
US $1.77 |
