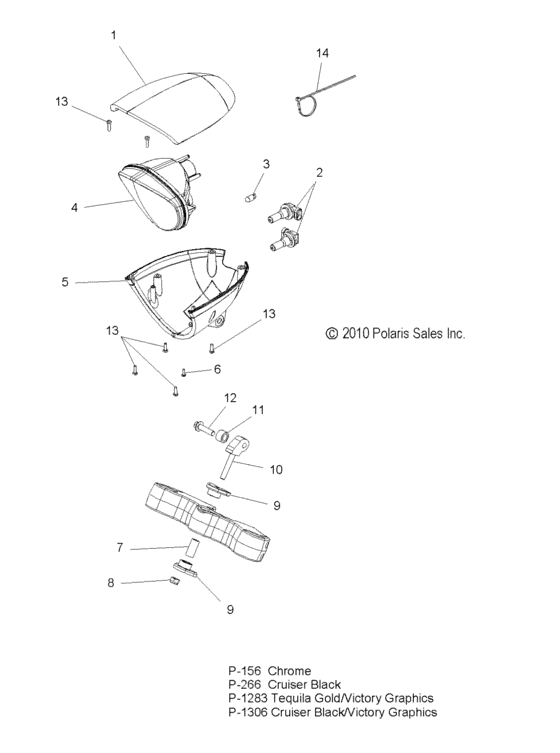

Electrical, headlight (V11XB36 ALL OPTIONS) Diagram Polaris JACKPOT ALL OPTIONS
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5135752-156 Cvr-headlight bucket,chr |
5135752-156 |
US $291.87 |
||
|
2
|
2
4010804 Bulb-halogen,h11 |
4010804 |
US $40.95 |
||
|
3
|
3
4012265
Bulb-eu marker, w5w
|
4012265 |
— | ||
|
4
|
4
2411133
Asm-housing,dual halogen
|
2411133 |
— | ||
|
4
|
4
2411134 Asm-housing,dual halogen,euInt`l; |
2411134 |
US $185.61 |
||
|
5
|
5
5135751-266 Bucket-headlight lwr,blk |
5135751-266 |
US $419.51 |
||
|
5
|
5
5135751-1283 Bucket-headlight lwr,t gld/gfx |
5135751-1283 |
US $466.78 |
||
|
5
|
5
5135751-1306 Bucket-headlight lwr,blk/r gfx |
5135751-1306 |
US $478.59 |
||
|
6
|
6
7518550 Scr-phpnh,m4,2x13,sms,0600202 |
7518550 |
US $0.79 |
||
|
7
|
7
5134434 Sleeve-,41"idx,62"odx37 mml |
5134434 |
US $6.20 |
||
|
8
|
8
7547268 Nut-nyloc m10x1,5,ref |
7547268 |
US $1.49 |
||
|
9
|
9
5412273 Isolator-hlight |
5412273 |
US $13.30 |
||
|
10
|
10
1013850 Asm-headlight mount |
1013850 |
US $61.06 |
||
|
11
|
11
5413404 Isolator-headlight |
5413404 |
US $2.28 |
||
|
12
|
12
7518153 Scr-schxhd,m10x40,0600084 |
7518153 |
US $3.94 |
||
|
13
|
13
7516610
Screw,sochd,m5x16
|
7516610 |
— | ||
|
14
|
14
7080792 Strap-cable tie,4",blk |
7080792 |
US $1.93 |
