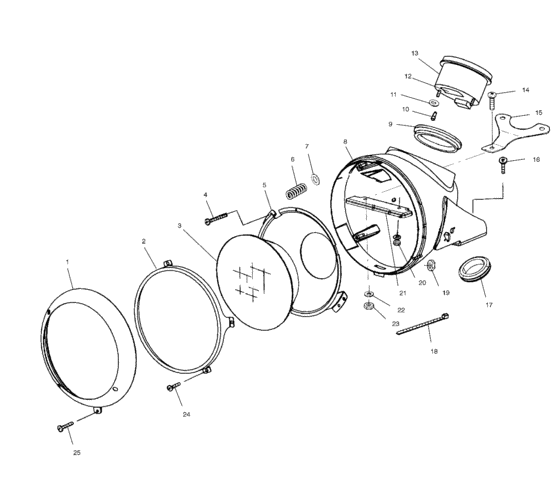

Electrical, headlight (V99CB15DB) Diagram Polaris STANDARD CRUISER
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1080019
Bezel,headlamp
|
1080019 |
— | ||
|
2
|
2
5241850
Ring,h/l,retaining
|
5241850 |
— | ||
|
3
|
3
4010160
Headlight,sealedbeam,7 1/4"
|
4010160 |
— | ||
|
4
|
4
7517623 Screw (10)10; |
7517623 |
US $3.75 |
||
|
5
|
5
5241849
Mt,inner h/l hsg.
|
5241849 |
— | ||
| replacement | |||||
|
5
|
5
5244505 Mnt,housing,inner,hd,lamp |
5244505 |
US $146.51 |
||
|
6
|
6
7041644
Spring,adj,h/l,
|
7041644 |
— | ||
|
7
|
7
7517272 Screw,sochd,m6x15 |
7517272 |
US $10.82 |
||
|
7
|
7
7556093 Washer10; |
7556093 |
US $2.70 |
||
|
8
|
8
1012911
Headlight housing
|
1012911 |
— | ||
| replacement | |||||
|
8
|
8
2201649
New Genuine Part
|
2201649 |
— | ||
|
8
|
8
2201526
Housing,headlight,kit
Incl. 19; |
2201526 |
— | ||
| replacement | |||||
|
8
|
8
2201649
New Genuine Part
Incl. 19; |
2201649 |
— | ||
|
9
|
9
5811529 Gasket,speedo |
5811529 |
US $22.26 |
||
|
10
|
10
2410102
Lamp indicator,speedo
|
2410102 |
— | ||
|
11
|
11
5432695
Cover,speedometer
|
5432695 |
— | ||
|
11
|
11
7556064 Washer10; |
7556064 |
US $8.12 |
||
|
12
|
12
3280261
Speedo/tach gauge asm.
|
3280261 |
— | ||
| replacements | |||||
|
12
|
12
3280381
New Genuine Part
|
3280381 |
— | ||
|
12
|
12
2201964
New Genuine Part
|
2201964 |
— | ||
|
12
|
12
5432695
Cover,speedometer
|
5432695 |
— | ||
|
13
|
13
7517523 Scr-sochd,m8x16 |
7517523 |
US $4.46 |
||
|
13
|
13
3280261
Speedo/tach gauge asm.
|
3280261 |
— | ||
| replacements | |||||
|
13
|
13
3280381
New Genuine Part
|
3280381 |
— | ||
|
13
|
13
2201964
New Genuine Part
|
2201964 |
— | ||
|
14
|
14
5411350 Grommet,h/l hsg/wire |
5411350 |
US $5.43 |
||
|
14
|
14
7517494 Screw10; |
7517494 |
US $4.73 |
||
|
15
|
15
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
15
|
15
5243286 Brkt,headlight stiffening |
5243286 |
US $34.67 |
||
|
16
|
16
7547041 Nut |
7547041 |
US $7.51 |
||
| replacement | |||||
|
16
|
16
7547120 Nut |
7547120 |
US $8.12 |
||
|
16
|
16
7517523 Scr-sochd,m8x16 |
7517523 |
US $4.46 |
||
|
17
|
17
5211872-067 Retainer,speedo,blk, |
5211872-067 |
US $72.38 |
||
|
17
|
17
5411350 Grommet,h/l hsg/wire |
5411350 |
US $5.43 |
||
|
18
|
18
7517567 Scr-m4,2x13,din7981,type f,ss |
7517567 |
US $1.93 |
||
|
18
|
18
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
19
|
19
7517368 Screw,ss, |
7517368 |
US $1.61 |
||
|
19
|
19
7547126 Nut (10)10; |
7547126 |
US $1.89 |
||
|
20
|
20
7547041 Nut |
7547041 |
US $7.51 |
||
| replacement | |||||
|
20
|
20
7547120 Nut |
7547120 |
US $8.12 |
||
|
21
|
21
5211872-067 Retainer,speedo,blk, |
5211872-067 |
US $72.38 |
||
|
22
|
22
7556088 Washer,flat10; |
7556088 |
US $2.45 |
||
|
23
|
23
7547079
Nut,flexloc,m6
|
7547079 |
— | ||
| replacement | |||||
|
23
|
23
7547120 Nut |
7547120 |
US $8.12 |
||
|
24
|
24
7517567 Scr-m4,2x13,din7981,type f,ss |
7517567 |
US $1.93 |
||
|
25
|
25
7517368 Screw,ss, |
7517368 |
US $1.61 |
||
