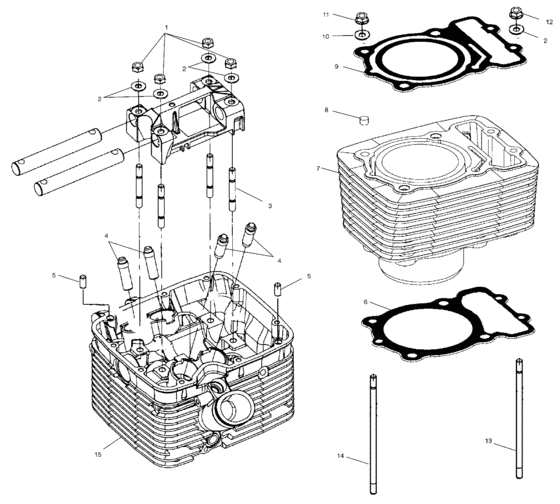

Engine, cylinder & head (V99CB15DB) Diagram Polaris STANDARD CRUISER
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547080 Nut-hexhd,m8x1,25 |
7547080 |
US $5.43 |
||
|
2
|
2
7556043 Washer,fl,8,4x1,610; |
7556043 |
US $3.75 |
||
|
3
|
3
5131743 Stud,carrier mt, |
5131743 |
US $13.09 |
||
|
4
|
4
3022041
Valve,intake guide
|
3022041 |
— | ||
|
4
|
4
3021077 Valve,guide |
3021077 |
US $18.94 |
||
| replacement | |||||
|
4
|
4
3022041
Valve,intake guide
|
3022041 |
— | ||
|
5
|
5
7663007 Dowel,hol,m9x10(10)10; |
7663007 |
US $3.75 |
||
|
6
|
6
5211769
Gasket,base
|
5211769 |
— | ||
| replacement | |||||
|
6
|
6
2201645 Gasket,head,kit,cyl v92 front |
2201645 |
US $284.01 |
||
|
7
|
7
5131491 Cylinder,mach |
5131491 |
US $1,018.20 |
||
|
8
|
8
7663008 Dowl,hol,m13x10 |
7663008 |
US $3.24 |
||
|
9
|
9
5211901
Gasket,head,rear
|
5211901 |
— | ||
| replacement | |||||
|
9
|
9
2201646
Gasket,head,kit,cyl, v92 rear
|
2201646 |
— | ||
|
9
|
9
5211768
Gasket,head
|
5211768 |
— | ||
| replacement | |||||
|
9
|
9
2201645 Gasket,head,kit,cyl v92 front |
2201645 |
US $284.01 |
||
|
10
|
10
7555986 Washer,fl10; |
7555986 |
US $12.11 |
||
|
11
|
11
7547017 Nut10; |
7547017 |
US $9.19 |
||
|
12
|
12
7547014 Nut,hxflghd,m810; |
7547014 |
US $5.95 |
||
|
13
|
13
5131476
Stud,cyl.mt.
|
5131476 |
— | ||
| replacement | |||||
|
13
|
13
5132633
Stud, cylinder mounting
|
5132633 |
— | ||
|
14
|
14
5131475 Stud,cyl,mt, |
5131475 |
US $22.89 |
||
|
15
|
15
3023022 Head,cyl,frontSee Footnote; |
3023022 |
US $1,433.83 |
||
|
15
|
15
3023024 Head,cylinder,rearSee Footnote; |
3023024 |
US $1,433.83 |
||
|
16
|
16
3022056
Valve,exhaust
|
3022056 |
— | ||
| replacement | |||||
|
16
|
16
3022041
Valve,intake guide
|
3022041 |
— | ||
