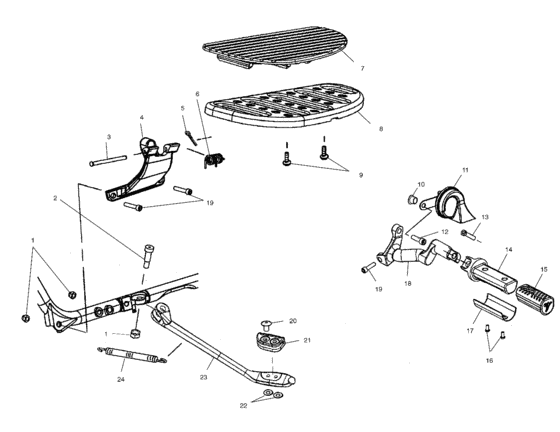

Chassis, floor board and side stand (V02CB16/ALL OPTIONS) Diagram Polaris STANDARD CRUISER ALL OPTIONS
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547039 Nut |
7547039 |
US $3.75 |
||
|
2
|
2
7517404
Screw
|
7517404 |
— | ||
|
3
|
3
7661095 Pin-floorboard support (10) |
7661095 |
US $5.64 |
||
|
4
|
4
5132430-067 Support-floorboard,rh,mach,blk |
5132430-067 |
US $299.15 |
||
|
4
|
4
5132429-067 Support,flrbrd,lh,mach,blk |
5132429-067 |
US $312.94 |
||
|
5
|
5
7661094 Pin-cotter,3/32"x5/8" |
7661094 |
US $3.75 |
||
|
6
|
6
7041623 Spring,f'board support |
7041623 |
US $13.20 |
||
|
7
|
7
5412025 Pad-floorboard,lh |
5412025 |
US $45.69 |
||
|
7
|
7
5412026 Pad-floorboard,rh |
5412026 |
US $45.69 |
||
|
8
|
8
5132228
Floorboard-lh,driver
|
5132228 |
— | ||
|
8
|
8
5132229
Floorboard-rh,driver
|
5132229 |
— | ||
|
9
|
9
7517694 Screw(10) |
7517694 |
US $10.82 |
||
|
10
|
10
5132658 Spacer |
5132658 |
US $4.85 |
||
|
11
|
11
4010688 Horn-trumpet,3 piece brkt |
4010688 |
US $107.36 |
||
|
12
|
12
7517554 ScrewLH Side Only; |
7517554 |
US $10.73 |
||
|
13
|
13
7517525 Screw,sochd,m10x40 |
7517525 |
US $1.93 |
||
|
14
|
14
5132303 Footpeg-pass,lh |
5132303 |
US $30.54 |
||
|
14
|
14
5132304 Footpeg-pass,rh |
5132304 |
US $61.06 |
||
|
15
|
15
5411333 Pad,footpeg,pass, |
5411333 |
US $15.26 |
||
|
15
|
15
5411334 Pad,rh,footpeg,pass, |
5411334 |
US $13.20 |
||
|
16
|
16
7517767 Scr,btnhd,m8x16 |
7517767 |
US $4.32 |
||
|
17
|
17
5243767-067 Cover-footpeg,black |
5243767-067 |
US $19.30 |
||
|
18
|
18
5244041-067 Support,ftrest,pas,lh,blk |
5244041-067 |
US $207.97 |
||
|
18
|
18
5244042-067 Support,ftrest,pas,rh,blk |
5244042-067 |
US $162.51 |
||
|
19
|
19
7517989 Scr-sochd,m10x50 0600084 |
7517989 |
US $6.69 |
||
|
20
|
20
7661064 Rivet,truss,hd,ss (50) |
7661064 |
US $1.89 |
||
|
21
|
21
5411745
Pad, side stand
|
5411745 |
— | ||
|
22
|
22
7556121 Washer-fl,6,0x0,8(10) |
7556121 |
US $10.50 |
||
|
23
|
23
1013062
Side stand,asm,
Incl. 20,21,22; |
1013062 |
— | ||
|
24
|
24
7042063
Spring-sidestand,2000 & 2001
|
7042063 |
— |
