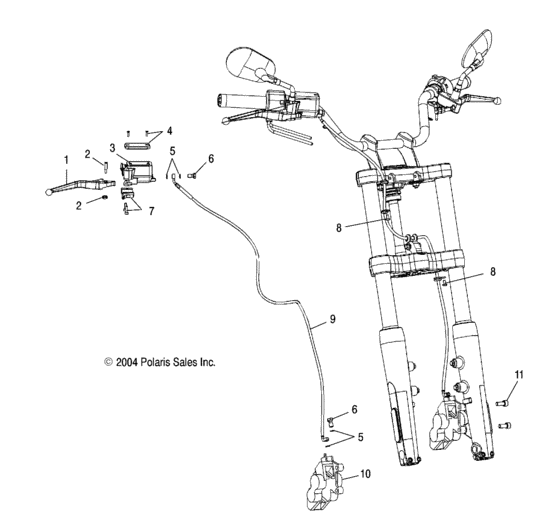

Brakes, front (V05AB16/EC16/GB16ALL OPTIONS) Diagram Polaris VICTORY VEGAS ALL OPTIONS
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5131657 Lever-hand,front brake |
5131657 |
US $127.05 |
||
|
2
|
2
2201215 Kit,hdwe,frt,m/c leverIncl. Pin and Nut; |
2201215 |
US $26.85 |
||
|
3
|
3
2050079 M,cyl asm,f,brake,14mmEB; |
2050079 |
US $384.07 |
||
|
3
|
3
2201182 Kit,hdwe,frt,m/c sightIncl. O-Ring, Sight and Clip; |
2201182 |
US $14.51 |
||
|
3
|
3
4110242 Sw,stop,micro,front |
4110242 |
US $85.33 |
||
|
3
|
3
2201218
Kit,hdwe,frt,m/c pushrod
Incl. Pushrod and Boot; |
2201218 |
— | ||
| replacement | |||||
|
3
|
3
2050079 M,cyl asm,f,brake,14mmIncl. Pushrod and Boot; |
2050079 |
US $384.07 |
||
|
3
|
3
2010217
Asm-mstr cyl,frt brk,14mm slvr
|
2010217 |
— | ||
|
4
|
4
2202309
Kit-hardware,cap,frt,mc,sil
Incl. Membrane, Screws, Cap and Diaphragm; |
2202309 |
— | ||
|
5
|
5
7556028
Washer, copper
|
7556028 |
— | ||
|
6
|
6
1930848
Bolt, banjo
|
1930848 |
— | ||
|
7
|
7
2202310 Kit-hardware,clamp,frt,mc,silIncl. Clamp and Screws; |
2202310 |
US $42.35 |
||
|
7
|
7
2201217 Kit,hdwe,frt,m/c clampEB; |
2201217 |
US $49.18 |
||
|
8
|
8
7518330 Scr-torx btnhd,m6x12 |
7518330 |
US $2.45 |
||
|
9
|
9
1910731 Hose-frt brake,pull backEB; |
1910731 |
US $127.05 |
||
|
9
|
9
1910725
Hose-front brake
Std.; |
1910725 |
— | ||
|
10
|
10
1910726 Front caliper asm,4 pist,lh |
1910726 |
US $537.67 |
||
|
10
|
10
1910818 Asm-frt caliper,4 pist,lh,blkEB; |
1910818 |
US $499.26 |
||
|
10
|
10
2201173 Kit,bleeder screw,boot |
2201173 |
US $17.90 |
||
|
10
|
10
2201176 Kit,pins,clips-front brake |
2201176 |
US $23.36 |
||
|
10
|
10
2202492 Kit-brake pad,front caliper2 Per; |
2202492 |
US $68.93 |
||
|
11
|
11
7517990 Scr-sochd,m10x25 0600084 |
7517990 |
US $3.94 |
||
