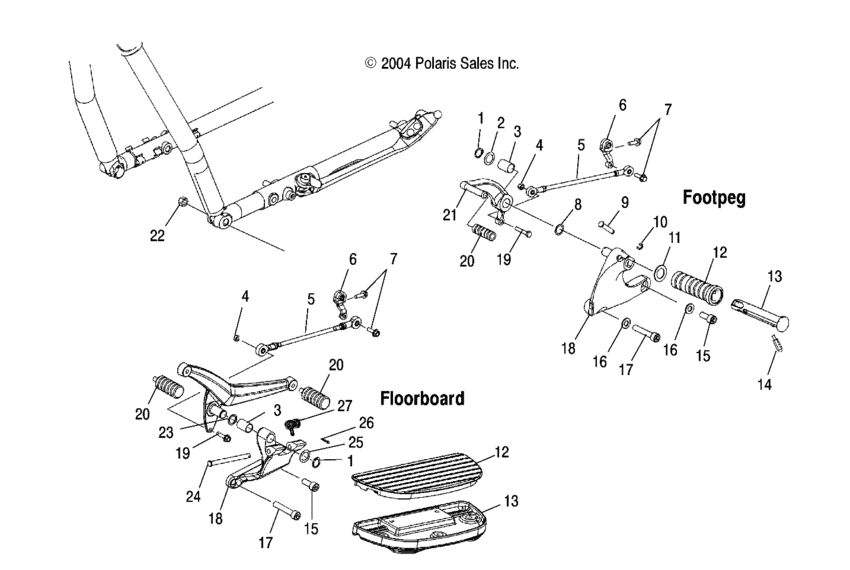

Chassis, l.h. footpeg/floorboard/shift (V05AB16/EC16/GB16ALL OPTIONS) Diagram Polaris VICTORY VEGAS ALL OPTIONS
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7710499 Ring,rtng,ext,14,7x1 |
7710499 |
US $4.73 |
||
|
2
|
2
7556075 Wshr-shim,25,4x,46x16,7 |
7556075 |
US $8.42 |
||
|
3
|
3
3514335 Bearing-shift pedal |
3514335 |
US $15.14 |
||
|
4
|
4
7547230 Nut-hexhd,m6,din980v |
7547230 |
US $7.68 |
||
|
5
|
5
1013957 Asm-linkage,shifterFootpeg; |
1013957 |
US $86.68 |
||
|
5
|
5
1014246 Linkage asm,shifterFloorboard; |
1014246 |
US $91.60 |
||
|
6
|
6
5133530 Lever-shifter,machined,03 |
5133530 |
US $76.81 |
||
|
7
|
7
7518141 Scr-hxflghd,m6x20,zpc |
7518141 |
US $12.79 |
||
|
8
|
8
7556273 Washer-wave,m19 (10) |
7556273 |
US $3.75 |
||
|
9
|
9
7661167 Pin-pivot,e-clip |
7661167 |
US $9.85 |
||
|
10
|
10
7710545 Ring-rtng,ext,m8 |
7710545 |
US $3.75 |
||
|
11
|
11
7556241 Wshr-fl,,781x1,25x,06 |
7556241 |
US $4.73 |
||
|
12
|
12
5412256 Pad-footpeg |
5412256 |
US $15.26 |
||
|
12
|
12
5412456 Pad-floorboard,driver |
5412456 |
US $45.69 |
||
|
13
|
13
5134061-156
Floorboard-driver,chr
NSS; |
5134061-156 |
— | ||
|
13
|
13
5133540-411
Footpeg, cc, lh
|
5133540-411 |
— | ||
|
13
|
13
5133540-156
Footpeg, chrome, lh
|
5133540-156 |
— | ||
|
13
|
13
5134061-425
Floorboard, driver
|
5134061-425 |
— | ||
|
14
|
14
5133539
Feeler-footpeg
|
5133539 |
— | ||
|
15
|
15
7518101 Scr-sochd,m10x25 |
7518101 |
US $6.69 |
||
|
16
|
16
7556234 Wshr-fl,10x2 |
7556234 |
US $3.75 |
||
|
17
|
17
7518146 Scr-sochd,m10x55 |
7518146 |
US $8.66 |
||
|
18
|
18
5133527-385
Support-footpeg,mach,lh,slv
|
5133527-385 |
— | ||
|
18
|
18
5133527-156 Support-footpeg,mach,lh,chr |
5133527-156 |
US $530.78 |
||
|
18
|
18
5133527-067
Support-footpeg,mach,lh,blk
EB; |
5133527-067 |
— | ||
|
18
|
18
5133863-067
Support-floorboard,lh,mach,blk
|
5133863-067 |
— | ||
|
19
|
19
7518147
Scr-hxflghd,m6x30
Footpeg; |
7518147 |
— | ||
|
19
|
19
7517751 Scr-hxflghd,m6x25,0600086Floorboard; |
7517751 |
US $5.95 |
||
|
20
|
20
5411364 Pad,shift pedalFootpeg; |
5411364 |
US $24.61 |
||
|
20
|
20
5412493 Pad-shifterFloorboard; |
5412493 |
US $20.28 |
||
|
21
|
21
5133528-385 Pedal-shiftlev,machined,slvFootpeg; |
5133528-385 |
US $183.17 |
||
|
21
|
21
5133528-156
Pedal-shiftlev,machined,chr
Footpeg; |
5133528-156 |
— | ||
|
21
|
21
5133528-067
Pedal-shiftlev,machined,blk
Footpeg;EB; |
5133528-067 |
— | ||
|
21
|
21
5134179-410 Pedal,shifter,lever,mach,polFloorboard; |
5134179-410 |
US $263.94 |
||
|
22
|
22
7547039 Nut |
7547039 |
US $3.75 |
||
|
23
|
23
7556149 Washer,wave,m16 (10) |
7556149 |
US $2.45 |
||
|
24
|
24
7661095 Pin-floorboard support (10) |
7661095 |
US $5.64 |
||
|
25
|
25
7556075 Wshr-shim,25,4x,46x16,7 |
7556075 |
US $8.42 |
||
|
26
|
26
7661094 Pin-cotter,3/32"x5/8" |
7661094 |
US $3.75 |
||
|
27
|
27
7041623 Spring,f'board support |
7041623 |
US $13.20 |
