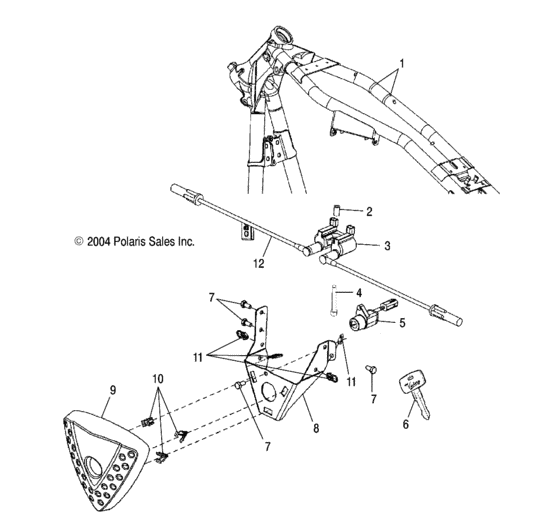

Electrical, ignition asm (V05AB16/EC16/GB16ALL OPTIONS) Diagram Polaris VICTORY VEGAS ALL OPTIONS
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7081033 Strap-panduit,double loop |
7081033 |
US $3.26 |
||
|
2
|
2
5132791
Spacer
|
5132791 |
— | ||
|
3
|
3
2410266
Asm-ignition coil
Incl. Coil and Spark Plug Wires; |
2410266 |
— | ||
|
3
|
3
4010530
Coil, ignition
|
4010530 |
— | ||
|
4
|
4
7517973
Scr-hexhd,m6x45,0600088
|
7517973 |
— | ||
|
5
|
5
4010685 Asm-ignition switch/fuel capNon-vented/Calif.; |
4010685 |
US $248.15 |
||
|
5
|
5
4010978
Asm-ign sw/fuel,chr,vegas
NSS;Non-vented/Calif.; |
4010978 |
— | ||
|
5
|
5
4011133 Asm-ign sw/fuel cap,vent,blk |
4011133 |
US $144.74 |
||
|
5
|
5
4011083 Asm-ign sw/fuelcap,no vent,blkNon-vented; |
4011083 |
US $236.34 |
||
|
5
|
5
4011023 Switch-ign,fuel cap 49 stVented, 49 St/Can; |
4011023 |
US $200.88 |
||
|
5
|
5
4011048 Asm-ign sw/fuel cap,chr,vent49 St/Can; NOTE: Fuel Cap also shown on Fuel System Pg. A13, Ref. 29]; |
4011048 |
US $224.51 |
||
|
6
|
6
4110239 Key,ignition(10)blank |
4110239 |
US $23.43 |
||
|
7
|
7
7517704
Screw
|
7517704 |
— | ||
|
8
|
8
5245658-067 Brkt-ignition/coil mnt,blk |
5245658-067 |
US $40.58 |
||
|
9
|
9
5245659 Cover-ignition/coil |
5245659 |
US $65.99 |
||
|
10
|
10
7670136
Clip-tinnerman,d98640-051m
|
7670136 |
— | ||
|
11
|
11
7080756 Clip,snap-in |
7080756 |
US $3.26 |
||
|
12
|
12
4010531 Lead-spark plug wire |
4010531 |
US $76.81 |
