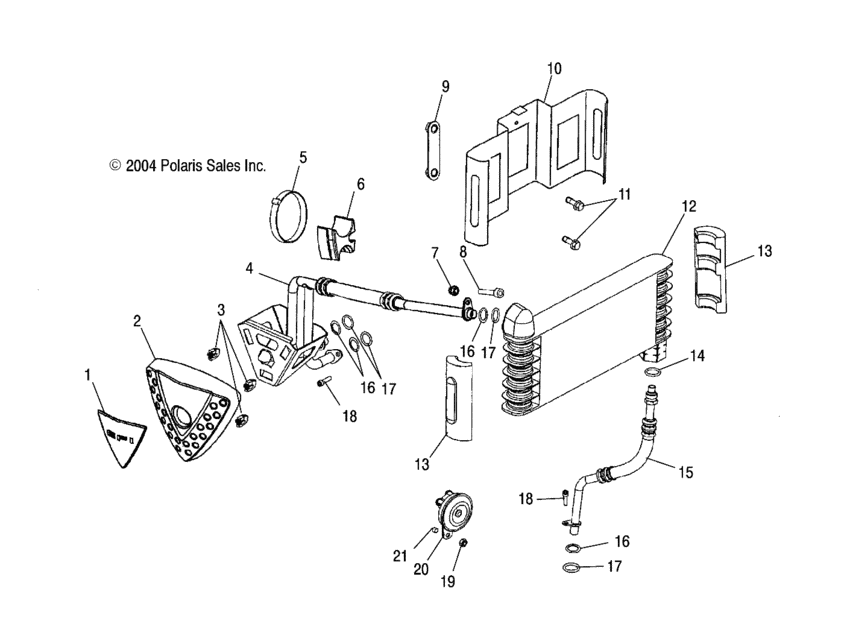

Engine, oil cooling (V05AB16/EC16/GB16ALL OPTIONS) Diagram Polaris VICTORY VEGAS ALL OPTIONS
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7170617
Badge-oil line cover
|
7170617 |
— | ||
|
1
|
1
7171549 Badge-oil line cvr,ness logo |
7171549 |
US $61.06 |
||
|
2
|
2
5245659 Cover-ignition/coil |
5245659 |
US $65.99 |
||
|
3
|
3
5412364 Isolator,cover mount |
5412364 |
US $4.43 |
||
|
4
|
4
5334192 Line-inlet,oil cooler |
5334192 |
US $294.46 |
||
|
4
|
4
5334526 Line-inlet,oil coolerEB; |
5334526 |
US $263.94 |
||
|
5
|
5
7080906 Cable tie,hvy duty8-7/8" |
7080906 |
US $8.42 |
||
|
6
|
6
5412188 Mount-rubber,oil manifold |
5412188 |
US $38.61 |
||
|
7
|
7
7547115 Nut-acron,m6,ss,din 1587 |
7547115 |
US $9.85 |
||
|
8
|
8
7517384 Screw,sochd,m6x20 |
7517384 |
US $7.68 |
||
|
9
|
9
1013984 Weld-nut plate |
1013984 |
US $13.20 |
||
|
10
|
10
1240142-385 Brkt,oil cooler,slv |
1240142-385 |
US $46.69 |
||
|
10
|
10
1240142-067 Brkt,oil cooler,blk |
1240142-067 |
US $47.67 |
||
|
11
|
11
7517839 Scr-hexflghd,m8 x 25 (10) |
7517839 |
US $4.10 |
||
|
12
|
12
1240145-385
Cooler-oil,slv
|
1240145-385 |
— | ||
|
12
|
12
1240145-067
Cooler-oil,blk
|
1240145-067 |
— | ||
|
13
|
13
5412105 Grommet-cooler,single |
5412105 |
US $8.17 |
||
|
14
|
14
5412027 O-ring,10,90x1,78 (10) |
5412027 |
US $2.28 |
||
|
15
|
15
5334191 Line-outlet,oil cooler |
5334191 |
US $127.05 |
||
|
16
|
16
7556113 Washer |
7556113 |
US $2.45 |
||
|
17
|
17
5411356 O-ring |
5411356 |
US $3.06 |
||
|
18
|
18
7517405 Screw |
7517405 |
US $6.69 |
||
|
19
|
19
7547076
Nut,hexhd,m8
|
7547076 |
— | ||
|
20
|
20
4010739 Horn-disk,335hz,77mm dia |
4010739 |
US $51.21 |
||
|
21
|
21
5133647 Spacer-horn (10) |
5133647 |
US $5.43 |
