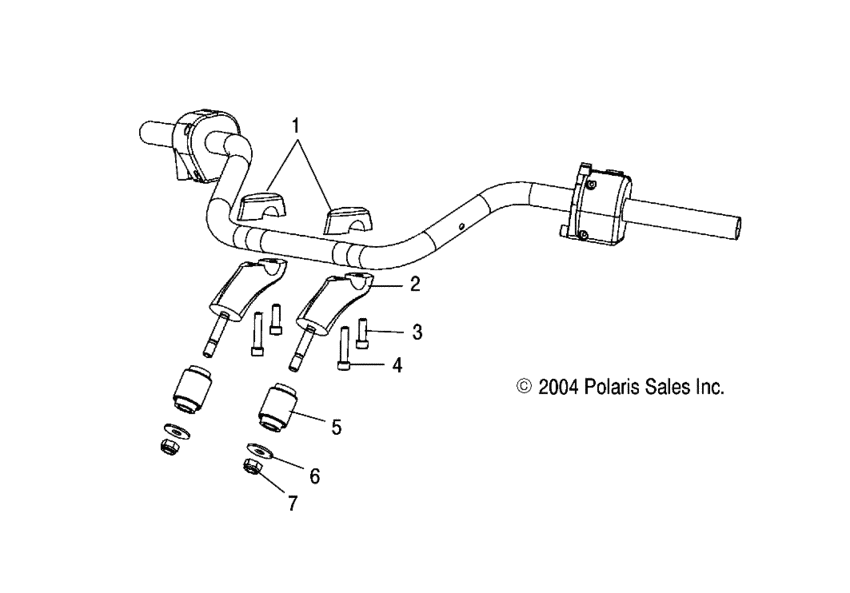

Steering, handlebar mounting (V05AB16DA/LA/GB16CA/CG/CH/CJ/CK/CR/DA/DG/DH/DJ/DK/DR/LA/LG/LH/LJ/LK/LR) Diagram Polaris VICTORY VEGAS ALL OPTIONS
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5133512-411
Riser, cap
|
5133512-411 |
— | ||
|
1
|
1
5133512-156
Riser-cap,mach,chr
|
5133512-156 |
— | ||
|
1
|
1
5133512-067
Riser, cap, black
|
5133512-067 |
— | ||
|
2
|
2
1822592-411
Asm., riser, handlebar
|
1822592-411 |
— | ||
|
2
|
2
1822592-156
Asm., riser, handlebar, chrome
|
1822592-156 |
— | ||
|
2
|
2
1822592-067
Asm., riser, handlebar, black
Eight Ball; |
1822592-067 |
— | ||
|
3
|
3
7518142 Scr-hxsoc,m8x25,zpc |
7518142 |
US $7.68 |
||
|
4
|
4
7518143 Scr-hxsoc,m8x40,zpc |
7518143 |
US $15.26 |
||
|
5
|
5
5412581
Isolator-hbar,bonded
|
5412581 |
— | ||
|
6
|
6
7550000 Wshr-fl,12,5x36x2,0,0600090 |
7550000 |
US $11.81 |
||
|
7
|
7
7540000 Nut-nylok,m12x1,5,0600110 |
7540000 |
US $5.25 |
