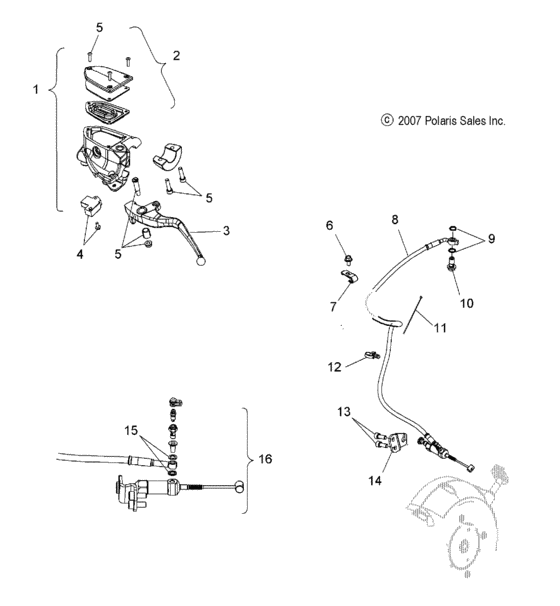

Steering, hydraulic clutch lever and hose (V08SB36/SD36 ALL OPTIONS) Diagram Polaris VISION ALL OPTIONS
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
1910937-385 Mcyl-clutch,no mir,12,7mm,slvIncl. 2-5; |
1910937-385 |
US $354.53 |
||
2
|
2
2203658-385 Kit-cap set,clutch m/c,silIncl. Diaphragn, Plate, Cover, Screws; |
2203658-385 |
US $56.14 |
||
3
|
3
2203659 Kit-lever,clutch,hydraulic |
2203659 |
US $152.58 |
||
4
|
4
2203660 Kit-switch set,clutch m/cIncl. Screws; |
2203660 |
US $37.43 |
||
5
|
5
2203661-385 Kit-hardware,clutch m/c,sil |
2203661-385 |
US $38.61 |
||
6
|
6
7517704
Screw
|
7517704 |
— | ||
7
|
7
7080998 Clamp-vinyl coated |
7080998 |
US $1.49 |
||
8
|
8
1910964 Hose-clutch,v07s |
1910964 |
US $134.70 |
||
9
|
9
7556372 Washer-copper sealing |
7556372 |
US $1.58 |
||
10
|
10
1910958
Bolt-banjo, 10mm x 1,25-6g
|
1910958 |
— | ||
11
|
11
7081033 Strap-panduit,double loop |
7081033 |
US $3.26 |
||
12
|
12
7081334 Strap-tree mount cable tie |
7081334 |
US $2.28 |
||
13
|
13
7517272
Screw,sochd,m6x15
|
7517272 |
— | ||
14
|
14
5251713 Brkt-clutch cable |
5251713 |
US $10.83 |
||
15
|
15
7556382 Washer-copper banjo,m6,1,00th |
7556382 |
US $2.98 |
||
16
|
16
1910963
Slave, cylinder
|
1910963 |
— |
