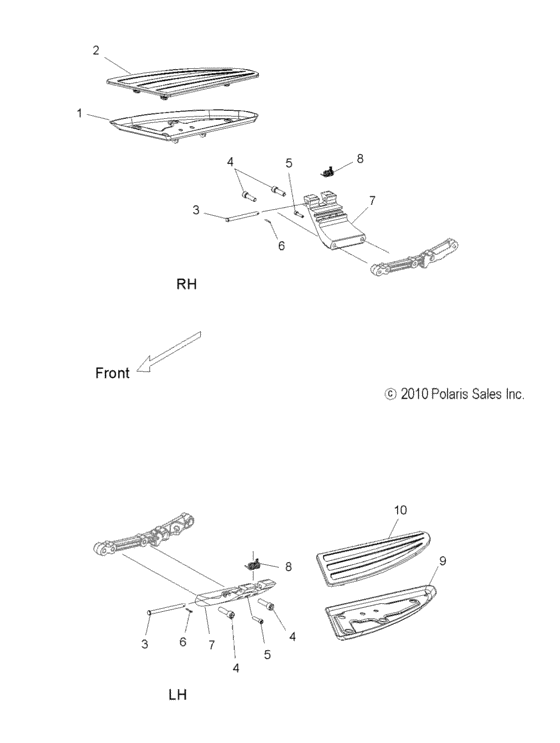

Chassis, floorboard, driver (V11SW36/SA36/AW36 ALL OPTIONS) Diagram Polaris VISION ALL OPTIONS
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1015291-463
Weld-driver floorboard,rh,fblk
|
1015291-463 |
— | ||
|
1
|
1
1015291-156
Weld-driver floorboard,rh,chr
|
1015291-156 |
— | ||
|
2
|
2
5412876 Pad-floorboard,driver,rh |
5412876 |
US $61.06 |
||
|
3
|
3
7661874 Pin-floorboard support |
7661874 |
US $6.69 |
||
|
4
|
4
7517367 Screw |
7517367 |
US $13.77 |
||
|
5
|
5
7518236 Scr-sochd,m6x25 |
7518236 |
US $5.64 |
||
|
6
|
6
7661094 Pin-cotter,3/32"x5/8" |
7661094 |
US $3.75 |
||
|
7
|
7
5135045-468
Support-flrbrd,mach,blk andz
|
5135045-468 |
— | ||
|
8
|
8
7041623 Spring,f'board support |
7041623 |
US $13.20 |
||
|
9
|
9
1015290-156
Weld-driver floorboard,lh,chr
|
1015290-156 |
— | ||
|
9
|
9
1015290-463
Weld-driver floorboard,lh,fbl
|
1015290-463 |
— | ||
|
10
|
10
5412875 Pad-floorboard,driver,lh |
5412875 |
US $68.92 |
