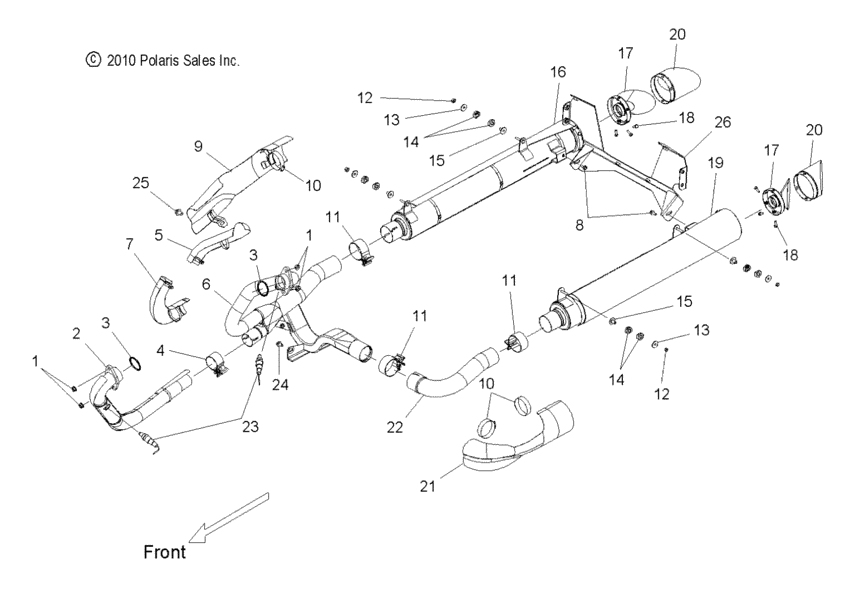

Engine, exhaust (V11SW36/SA36/AW36 ALL OPTIONS) Diagram Polaris VISION ALL OPTIONS
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547403
Nut-hxflghd,m8x1,25
|
7547403 |
— | ||
|
2
|
2
7080774 Clamp,exh,heatshield |
7080774 |
US $9.15 |
||
|
2
|
2
1261981
Headpipe, exhaust, front
|
1261981 |
— | ||
|
2
|
2
1261541 Weld-exh,shield,headpipe,front |
1261541 |
US $323.87 |
||
|
2
|
2
1261984 Asm., exhaust headpipe, front |
1261984 |
US $696.22 |
||
|
3
|
3
5246008 Gasket-exhaust sealing |
5246008 |
US $23.45 |
||
|
4
|
4
7081179 Clamp-exhaust,ss |
7081179 |
US $32.52 |
||
|
5
|
5
1261543 Weld-shield,rear cyl,upr |
1261543 |
US $201.46 |
||
|
5
|
5
7080774 Clamp,exh,heatshield |
7080774 |
US $9.15 |
||
|
6
|
6
1262072 Asm-exhaust,headpipe,rearIncl. 5,7; |
1262072 |
US $1,403.29 |
||
|
7
|
7
1261544 Weld-shield,rear cyl,mid |
1261544 |
US $201.46 |
||
|
7
|
7
7080774 Clamp,exh,heatshield |
7080774 |
US $9.15 |
||
|
8
|
8
7518591 Scr-hxflghd,m6x16,0600086 |
7518591 |
US $1.49 |
||
|
9
|
9
1262220 ShieldTransition, RH 8 Ball; |
1262220 |
US $256.71 |
||
|
9
|
9
1261795 Weld-shield,transition,rh |
1261795 |
US $268.63 |
||
|
10
|
10
7081438 Clamp-worm drive,,56x2,75 dia |
7081438 |
US $7.68 |
||
|
11
|
11
7081340 Clamp-exhaust,2,25" |
7081340 |
US $27.09 |
||
|
12
|
12
7547120
Nut
|
7547120 |
— | ||
|
13
|
13
7556452 Wshr-fl,,27x1,25x,06 |
7556452 |
US $1.49 |
||
|
14
|
14
5413331 Bshg-rubber,muffler/bag mount |
5413331 |
US $2.28 |
||
|
15
|
15
5136091 Bshg-flg,6,2x10x14 |
5136091 |
US $3.75 |
||
|
16
|
16
1261749 Weld-shield,rh muffler |
1261749 |
US $323.87 |
||
|
16
|
16
1262222-489 Weld-muffler,rh,vis,blk |
1262222-489 |
US $412.20 |
||
|
16
|
16
7080813 Clamp-worm drive,,44wx4,25dia |
7080813 |
US $5.64 |
||
|
16
|
16
1262214-489 Weld-muffler,rh,vis,intl,blkInt`l; |
1262214-489 |
US $696.22 |
||
|
16
|
16
1262226 Asm-muffler,rh,visIncl. 17,18; |
1262226 |
US $730.70 |
||
|
16
|
16
1262177 Asm-muffler,rh,vis,intlIncl. 17,18;Int`l; |
1262177 |
US $835.08 |
||
|
17
|
17
1262188 Asm-exhaust tip,inner |
1262188 |
US $185.61 |
||
|
18
|
18
7518767 Scr-hexhd,m6x16 |
7518767 |
US $1.77 |
||
|
19
|
19
1262225
Asm-muffler,lh,vis
Incl. 18,20; |
1262225 |
— | ||
|
19
|
19
1262221-489 Weld-muffler,lh,vis,blk |
1262221-489 |
US $343.07 |
||
|
19
|
19
7081813 Clamp |
7081813 |
US $101.62 |
||
|
19
|
19
1262213-489 Weld-muffler,lh,vis,intl,blkInt`l; |
1262213-489 |
US $668.64 |
||
|
19
|
19
1261800 Weld-shield,muffler,lh |
1261800 |
US $323.87 |
||
|
19
|
19
1262176 Asm-muffler,lh,vis,intlIncl. 18,20;Int`l; |
1262176 |
US $850.83 |
||
|
20
|
20
5336316 Tip-exhaust,tube,shell |
5336316 |
US $152.65 |
||
|
21
|
21
1262219 ShieldTransition, LH Int`l; |
1262219 |
US $256.43 |
||
|
21
|
21
1261794 Weld-shield,transition,lh |
1261794 |
US $268.63 |
||
|
22
|
22
5137036-489 Tube, exhaust crossover, lh, black |
5137036-489 |
US $65.99 |
||
|
23
|
23
4010430 Sensor-oxygen |
4010430 |
US $117.20 |
||
|
24
|
24
7517951 Scr-hexflghd,m10x16,0600086 |
7517951 |
US $3.94 |
||
|
25
|
25
7518140 Scr-hxflghd,m6x10,zpc |
7518140 |
US $7.68 |
||
|
26
|
26
5254017
Brkt-rear muffler support
|
5254017 |
— |
