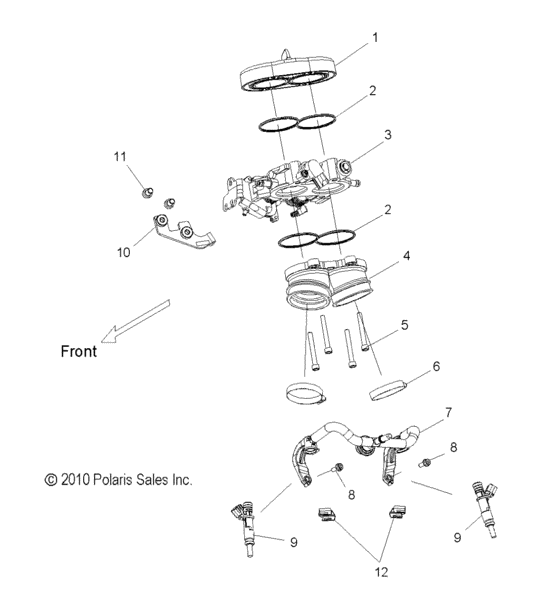

Engine, throttle body asm. (V11SW36/SA36/AW36 ALL OPTIONS) Diagram Polaris VISION ALL OPTIONS
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5135083
Adapter-air box,mach
|
5135083 |
— | ||
|
2
|
2
5412882 Seal-throttle body |
5412882 |
US $7.88 |
||
|
3
|
3
1204321 Asm-tbody,rear cruise,45mm |
1204321 |
US $585.92 |
||
|
4
|
4
1203866 Adapter-throttle body |
1203866 |
US $115.45 |
||
|
5
|
5
7518348 Scr-sochd,m6x50,0600084 |
7518348 |
US $4.53 |
||
|
6
|
6
7080511 Clamp, narrow band |
7080511 |
US $1.75 |
||
|
7
|
7
2520881 Asm-rail,fuel |
2520881 |
US $486.26 |
||
|
8
|
8
7518803 Scr-socflghd,m6x1,0x16 |
7518803 |
US $1.77 |
||
|
9
|
9
2520536 Injector-fuel |
2520536 |
US $280.05 |
||
|
10
|
10
5254542 Bracket-throttle stop |
5254542 |
US $32.52 |
||
|
11
|
11
7517725
Screw,sochd,m5x10,zpb
|
7517725 |
— | ||
|
12
|
12
5250306 Clip-fuel rail |
5250306 |
US $7.21 |
