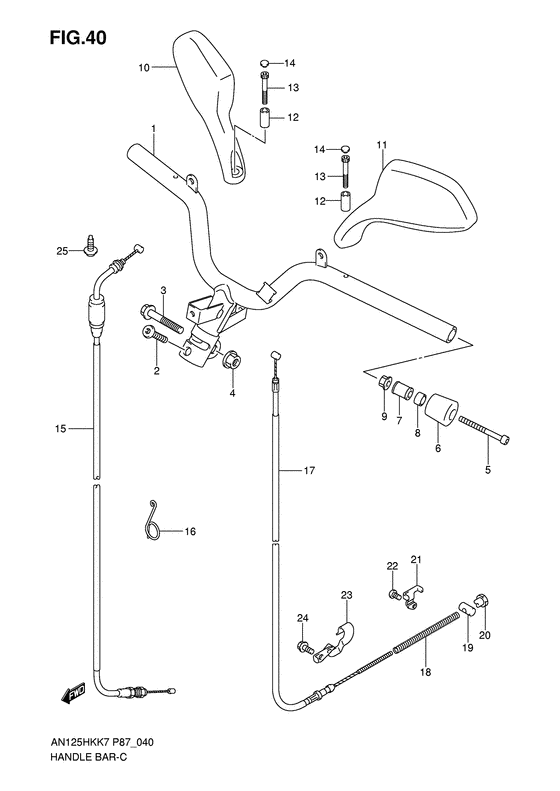

Handlebar Diagram Suzuki AN125 Burgman
- Year
- 2007
- Model code
- AN125HKK7(P87) K7
- Engine Capacity
- 125
- Model
- AN125HK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-37G01-000
Handlebar
|
56110-37G01-000 |
— | ||
| replacement | |||||
|
1
|
1
56110-37G02-000 HANDLEBAR |
56110-37G02-000 |
US $73.97 |
||
|
2
|
2
56123-20E60-000 SCREW,HANDLEBAR SET |
56123-20E60-000 |
US $4.05 |
||
|
3
|
3
09103-10116-000 BOLT(10X43)Bolt, lower Bolt (10x43); |
09103-10116-000 |
from US $9.37 |
||
|
4
|
4
09159-10058-000
Nut
|
09159-10058-000 |
— | ||
| replacement | |||||
|
4
|
4
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
5
|
5
07130-06557-000 BOLT |
07130-06557-000 |
US $9.90 |
||
|
6
|
6
56271-37G00-000 BALANCER,HANDLEBAR |
56271-37G00-000 |
US $33.12 |
||
|
7
|
7
56272-31C00-000 EXPANDER,GRIP ENDExpander, grip end |
56272-31C00-000 |
US $2.94 |
||
|
8
|
8
09180-06069-000 SPACER(6.5X14X7.5)Spacer |
09180-06069-000 |
from US $5.36 |
||
|
9
|
9
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
10
|
10
56500-37G30-000
Mirror, rear view rh
|
56500-37G30-000 |
— | ||
|
11
|
11
56600-37G30-000
Mirror, rear view lh
|
56600-37G30-000 |
— | ||
|
12
|
12
56741-37G00-000 SPACER,RR VIEW MIRROR |
56741-37G00-000 |
from US $3.64 |
||
|
13
|
13
07130-08557-000 BOLT |
07130-08557-000 |
from US $6.49 |
||
|
14
|
14
09250-06011-000 CAP(OD:11) |
09250-06011-000 |
from US $1.82 |
||
|
15
|
15
58300-37G00-000
Cable assy,throttle
|
58300-37G00-000 |
— | ||
|
16
|
16
34938-20E60-000
Guide, throttle cable
|
34938-20E60-000 |
— | ||
| replacement | |||||
|
16
|
16
34938-20E61-000 GUIDE,CABLE |
34938-20E61-000 |
US $3.13 |
||
|
17
|
17
58510-37G00-000 CABLE,RR BRAKE |
58510-37G00-000 |
US $32 |
||
|
18
|
18
09440-07062-000 SPRING |
09440-07062-000 |
US $13.20 |
||
|
19
|
19
09209-10001-000 PIN,10X19 |
09209-10001-000 |
from US $2.13 |
||
|
20
|
20
09150-05101-000 NUT |
09150-05101-000 |
from US $1.98 |
||
|
21
|
21
58575-20E00-000 PLATE,RR BRAKE CABLE |
58575-20E00-000 |
US $3.61 |
||
|
22
|
22
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
23
|
23
58621-20E10-000 GUIDE,RR BRAKE CABLE |
58621-20E10-000 |
US $7.40 |
||
|
24
|
24
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
57128-37G00-000
SCREW,THROTTLE CASE
|
57128-37G00-000 |
— | ||
