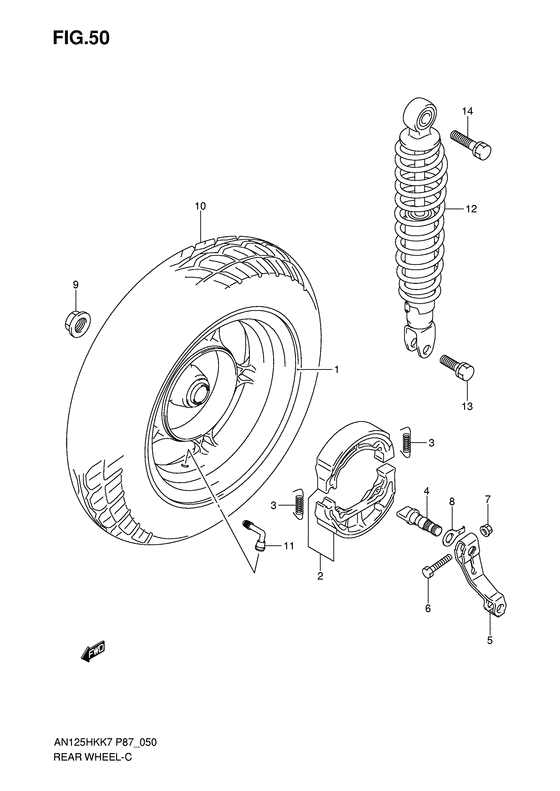

Rear wheel Diagram Suzuki AN125 Burgman
- Year
- 2007
- Model code
- AN125HKK7(P87) K7
- Engine Capacity
- 125
- Model
- AN125HK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64150-20E01-000 WHEEL,RR |
64150-20E01-000 |
US $309.12 |
||
|
2
|
2
54400-03810-000 SHOE SET,BRAKE |
54400-03810-000 |
from US $33.67 |
||
|
3
|
3
55421-45F00-000
SPRING,RR BRAKE SHOE
Spring, brake shoe; |
55421-45F00-000 |
— | ||
| replacement | |||||
|
3
|
3
55421-45F10-000 SPRING,BRAKE SHOESpring, brake shoe; |
55421-45F10-000 |
from US $1.76 |
||
|
4
|
4
64441-11E11-000
CAM,BRAKE
|
64441-11E11-000 |
— | ||
|
5
|
5
64451-20E30-000
Lever, rear brake cam
|
64451-20E30-000 |
— | ||
| replacement | |||||
|
5
|
5
64451-20E00-000 LEVER,RR BRAKE CAM |
64451-20E00-000 |
US $14.65 |
||
|
6
|
6
09100-06139-000 BOLT(6X31) |
09100-06139-000 |
from US $1.94 |
||
|
7
|
7
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
64492-17B02-000
New Genuine Part
|
64492-17B02-000 |
— | ||
| replacement | |||||
|
8
|
8
64492-17BA0-000 PLATE,BRAKE LINING INDICATOR |
64492-17BA0-000 |
US $1.88 |
||
|
9
|
9
64714-37G00-000
NUT,RR AXLE
|
64714-37G00-000 |
— | ||
|
10
|
10
55110-37G00-000
TIRE,FR TUBELESS(3.50 10 51J)
Tire, rear (3.50-10 51j); |
55110-37G00-000 |
— | ||
|
11
|
11
43130-41D00-000
VALVE ASSY,WHEEL RIM(PVR70)
Valve assy, wheel rim (pvr-70); |
43130-41D00-000 |
— | ||
| replacement | |||||
|
11
|
11
ZL360-PVR70-000 VALVE ASSY,WHEEL RIM(PVR70)Valve assy, wheel rim (pvr-70); |
ZL360-PVR70-000 |
US $11.20 |
||
|
12
|
12
62100-37G00-000
ABSORBER ASSY,RR SHOCK
|
62100-37G00-000 |
— | ||
|
13
|
13
01570-1035B-000 BOLT |
01570-1035B-000 |
US $21.70 |
||
|
14
|
14
01570-1040B-000 BOLT |
01570-1040B-000 |
US $21.70 |
||
