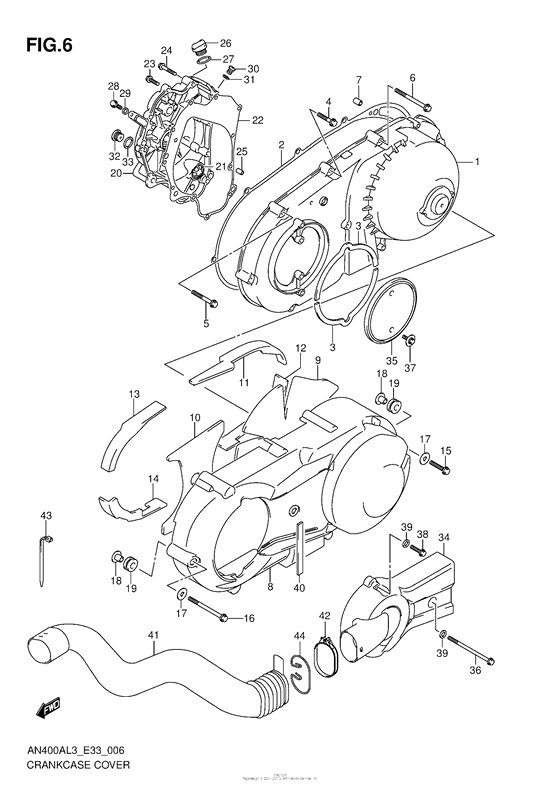

Crankcase Cover Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2013
- Model code
- AN400AL3
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-05H00-000 COVER,CLUTCH INNER |
11341-05H00-000 |
from US $220.80 |
||
|
2
|
2
11482-05H00-000 GASKET,CLUTCH COVER INNERGasket, clutch cover inner |
11482-05H00-000 |
from US $20.30 |
||
|
3
|
3
11485-05H10-000 CUSHION,BELT COOLING DUCT |
11485-05H10-000 |
from US $3.02 |
||
|
4
|
4
01547-0630A-000 BOLT |
01547-0630A-000 |
from US $0.96 |
||
|
5
|
5
01547-0645A-000 Bolt |
01547-0645A-000 |
from US $0.91 |
||
|
6
|
6
01547-0675A-000 BOLTBolt |
01547-0675A-000 |
from US $4.47 |
||
|
7
|
7
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
8
|
8
11371-05H30-000
COVER,CLUTCH OUTER
|
11371-05H30-000 |
— | ||
| replacement | |||||
|
8
|
8
11371-05H31-000 Cover,clutch Outer |
11371-05H31-000 |
US $96.42 |
||
|
9
|
9
11486-05H00-000 CUSHION,CL COVER OUTER NO.1 |
11486-05H00-000 |
from US $32.38 |
||
|
10
|
10
11487-05H00-000 CUSHION,CL COVER OUTER NO.2 |
11487-05H00-000 |
from US $12.70 |
||
|
11
|
11
11488-05H00-000 CUSHION,CL COVER OUTER NO.3 |
11488-05H00-000 |
from US $8.35 |
||
|
12
|
12
11489-05H00-000 CUSHION,CL COVER OUTER NO.4 |
11489-05H00-000 |
from US $6.40 |
||
|
13
|
13
11491-05H00-000 CUSHION,CL COVER OUTER NO.5 |
11491-05H00-000 |
from US $6.15 |
||
|
14
|
14
11492-05H00-000 CUSHION,CL COVER OUTER NO.6 |
11492-05H00-000 |
from US $6.96 |
||
|
15
|
15
01547-0625A-000 BOLTBolt, fr brake hose no.2 |
01547-0625A-000 |
from US $0.91 |
||
|
16
|
16
01547-0660A-000 Bolt |
01547-0660A-000 |
from US $0.91 |
||
|
17
|
17
09160-06028-000 WASHER(6.5X18X1)Washer |
09160-06028-000 |
from US $0.96 |
||
|
18
|
18
09169-06062-000 WASHERWasher |
09169-06062-000 |
from US $1.12 |
||
|
19
|
19
09320-09016-000 CUSHIONCushion, holder |
09320-09016-000 |
from US $1.04 |
||
|
20
|
20
11350-05H00-000 COVER,MAGNETO |
11350-05H00-000 |
from US $228.16 |
||
|
21
|
21
11971-33210-000 LENS,OIL LEVEL CHECKLens, oil check |
11971-33210-000 |
from US $11.97 |
||
|
22
|
22
11483-05H00-000 GASKET,MAGNETO COVERGasket, magneto cover |
11483-05H00-000 |
from US $10.64 |
||
|
23
|
23
01547-0625A-000 BOLTBolt, fr brake hose no.2 |
01547-0625A-000 |
from US $0.91 |
||
|
24
|
24
01547-0640A-000 BOLT |
01547-0640A-000 |
from US $0.91 |
||
|
25
|
25
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
26
|
26
11971-25D00-000 PLUG,ENGINE OIL FILLERPlug, eng oil filler |
11971-25D00-000 |
from US $2.46 |
||
|
27
|
27
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap |
09280-17003-000 |
from US $1.51 |
||
|
28
|
28
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
29
|
29
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
30
|
30
09248-10010-000 PLUG(10X10)Plug, oil gallery |
09248-10010-000 |
from US $1.98 |
||
|
31
|
31
09168-10002-000 GASKET(10X14X3.6)Gasket |
09168-10002-000 |
from US $1.67 |
||
|
32
|
32
09248-16012-000 PLUG(16X8)Plug, t.d.c check |
09248-16012-000 |
from US $2.72 |
||
|
33
|
33
09168-16002-000 GASKET(16X22X2) |
09168-16002-000 |
from US $0.90 |
||
|
34
|
34
11380-05H50-000 DUCT,BELT COOLING |
11380-05H50-000 |
from US $21.53 |
||
|
35
|
35
11388-10G10-000 FILTER,BELT COOLING |
11388-10G10-000 |
from US $23.76 |
||
|
36
|
36
09103-06227-000 BOLT(6X95)Bolt (6x95) |
09103-06227-000 |
from US $5.68 |
||
|
37
|
37
09116-06006-000 BOLT(6X16)Bolt, front |
09116-06006-000 |
from US $0.76 |
||
|
38
|
38
01547-0620A-000 Bolt |
01547-0620A-000 |
from US $0.76 |
||
|
39
|
39
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
40
|
40
11382-05H30-000 CUSHION,BELT COOLING DUCT NO.1 |
11382-05H30-000 |
from US $1.29 |
||
|
41
|
41
11383-05H40-000
HOSE,BELT COOLING
|
11383-05H40-000 |
— | ||
| replacement | |||||
|
41
|
41
11383-05H41-000 Hose,belt Cooling |
11383-05H41-000 |
from US $48.13 |
||
|
42
|
42
11384-05H40-000
CLAMP,BELT COOLING DUCT
|
11384-05H40-000 |
— | ||
| replacement | |||||
|
42
|
42
11384-05H41-000 CLAMP,BELT COOLING DUCT |
11384-05H41-000 |
from US $9.96 |
||
|
43
|
43
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
44
|
44
11385-05H00-000 GUIDE,BELT COOLING HOSE |
11385-05H00-000 |
US $2.56 |
||
