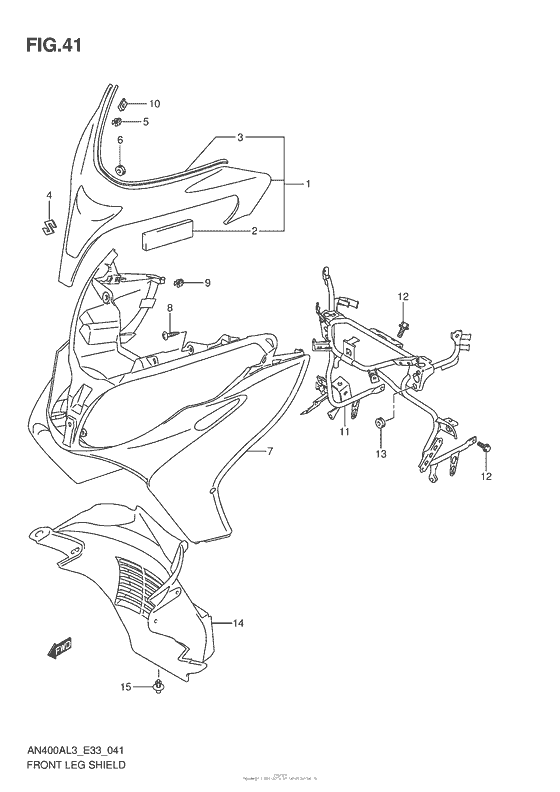

Front Leg Shield (An400Al3 E33) Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2013
- Model code
- AN400AL3
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48130-05H00-YBD COVER,FR LEG SHIELD(WHITE) |
48130-05H00-YBD |
US $250.24 |
||
|
1
|
1
48130-05H00-YKV COVER,FR LEG SHIELD(BLACK) |
48130-05H00-YKV |
from US $207.92 |
||
|
2
|
2
33652-26E00-000 PROTECTOR(20X90)X1.0Protector (20x90x1) |
33652-26E00-000 |
from US $1.91 |
||
|
3
|
3
48132-05H00-000 MOLDING,FR LEG COVER |
48132-05H00-000 |
US $7.62 |
||
|
4
|
4
68641-14G00-000 EMBLEM,S |
68641-14G00-000 |
from US $14.29 |
||
|
5
|
5
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
6
|
6
09320-06026-000 CUSHION |
09320-06026-000 |
from US $1.82 |
||
|
7
|
7
48111-05H00-PGZ SHIELD,LEG FR(GRAY) |
48111-05H00-PGZ |
from US $492.80 |
||
|
7
|
7
48111-05H00-YBD SHIELD,LEG FR(WHITE) |
48111-05H00-YBD |
US $1,362.24 |
||
|
7
|
7
48111-05H00-YKV SHIELD,LEG FR(BLACK) |
48111-05H00-YKV |
from US $492.80 |
||
|
8
|
8
09136-06004-000 SCREW(6X12) |
09136-06004-000 |
from US $0.77 |
||
|
9
|
9
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
10
|
10
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
11
|
11
48150-05HD0-000 BRACE,LEG SHIELD |
48150-05HD0-000 |
from US $364.32 |
||
|
12
|
12
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
13
|
13
09320-08018-000 CUSHIONCushion, lh |
09320-08018-000 |
from US $1.49 |
||
|
14
|
14
48137-05H01-000 SHIELD,LEG LWR |
48137-05H01-000 |
from US $88.69 |
||
|
15
|
15
09409-08308-5ES CLIP(BLACK) |
09409-08308-5ES |
from US $1.15 |
