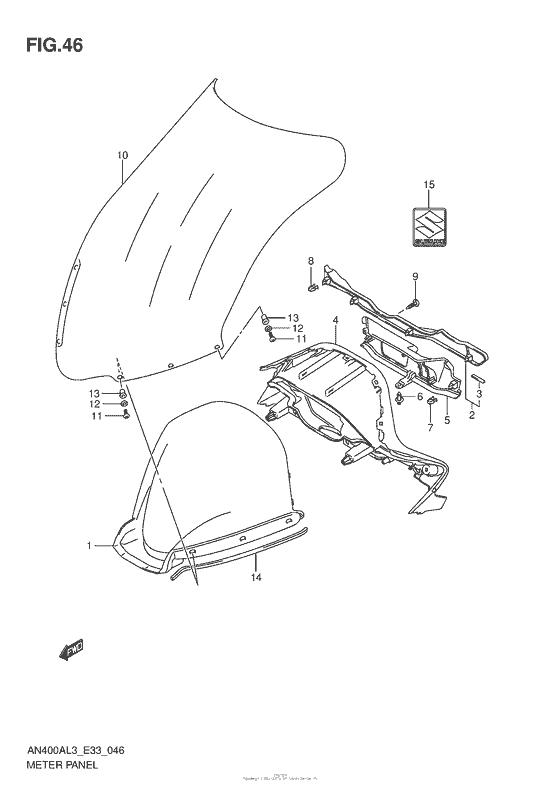

Meter Panel Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2013
- Model code
- AN400AL3
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94421-05H00-291 PANEL,METER FR |
94421-05H00-291 |
US $185.84 |
||
|
2
|
2
94423-05H01-291 PANEL,METER UPR |
94423-05H01-291 |
from US $121.44 |
||
|
3
|
3
94443-06G00-000 TAPE(6X25X0.13)Tape, meter panel |
94443-06G00-000 |
from US $1.76 |
||
|
4
|
4
94422-05H00-291 PANEL,METER RR |
94422-05H00-291 |
from US $189.41 |
||
|
5
|
5
94671-05H01-291 PANEL,FR |
94671-05H01-291 |
from US $91.77 |
||
|
6
|
6
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.58 |
||
|
7
|
7
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
8
|
8
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
9
|
9
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
10
|
10
94611-05H00-000 WINDSCREEN |
94611-05H00-000 |
from US $626.56 |
||
|
11
|
11
02142-0520A-000 SCREWScrew, inner |
02142-0520A-000 |
from US $0.76 |
||
|
12
|
12
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
13
|
13
09159-05045-000 NUT |
09159-05045-000 |
from US $2.89 |
||
|
14
|
14
94424-05H00-000 CUSHIONCushion, front |
94424-05H00-000 |
from US $1.76 |
||
|
15
|
15
68281-35F00-000 EMBLEM,S |
68281-35F00-000 |
from US $7.45 |
