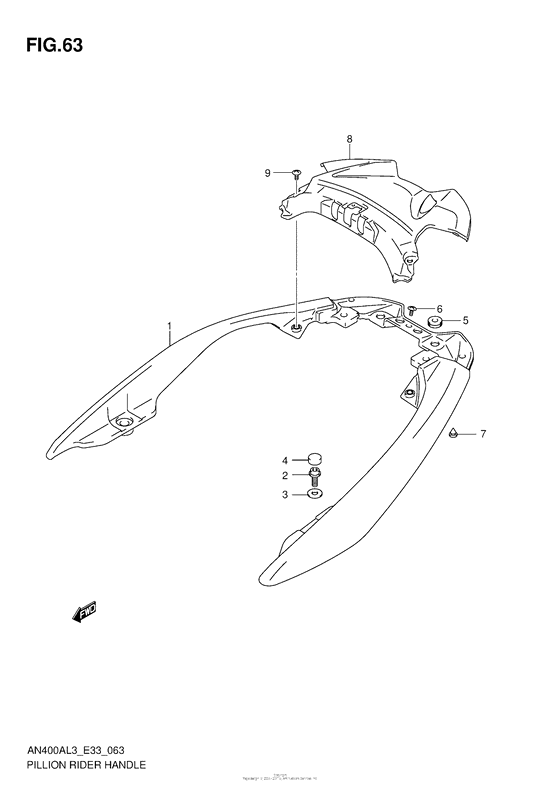

Pillion Rider Handle (An400Al3 E33) Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2013
- Model code
- AN400AL3
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46210-05H03-PGZ HANDLE,PILLION RIDER(GRAY) |
46210-05H03-PGZ |
from US $443.47 |
||
|
1
|
1
46210-05H03-YBD HANDLE,PILLION RIDER(WHITE) |
46210-05H03-YBD |
US $1,424.16 |
||
|
2
|
2
09106-08151-000 BOLT(8X25) |
09106-08151-000 |
from US $1.68 |
||
|
3
|
3
09169-08049-000 WASHER |
09169-08049-000 |
from US $2.58 |
||
|
4
|
4
46271-14G00-000 CAP |
46271-14G00-000 |
from US $2.46 |
||
|
5
|
5
09320-08028-000 CUSHIONGrommet |
09320-08028-000 |
from US $2.13 |
||
|
6
|
6
09139-06168-000 SCREW(6X16)Screw, upper |
09139-06168-000 |
from US $1.82 |
||
|
7
|
7
09250-06012-000
PLUG(OD:10)
|
09250-06012-000 |
— | ||
| replacement | |||||
|
7
|
7
09250-06017-000 Plug(Od:10) |
09250-06017-000 |
from US $4.13 |
||
|
8
|
8
46215-05H00-PGZ COV,PILLION RIDER HNDL FR (GRAY) |
46215-05H00-PGZ |
from US $128.06 |
||
|
8
|
8
46215-05H00-YBD COV,PILLION RIDER HNDL FR (WHITE) |
46215-05H00-YBD |
US $272.32 |
||
|
9
|
9
09139-06168-000 SCREW(6X16)Screw, upper |
09139-06168-000 |
from US $1.82 |
||
