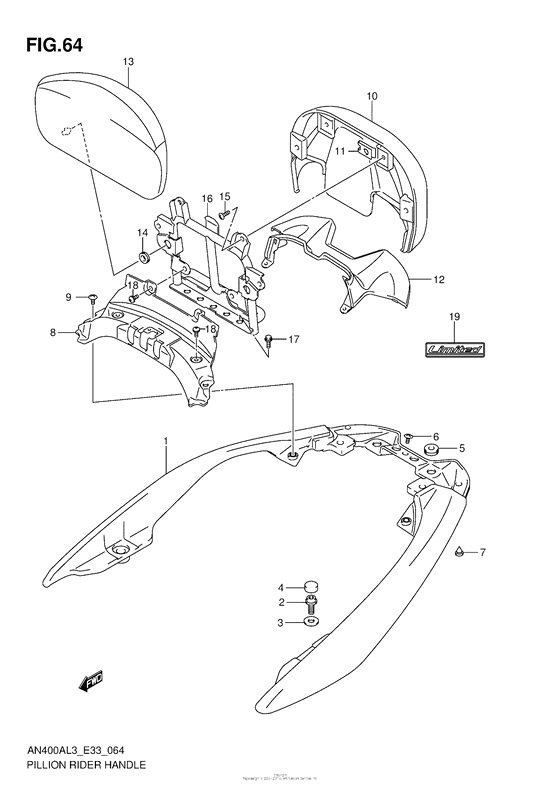

Pillion Rider Handle (An400Zal3 E28) Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2013
- Model code
- AN400AL3
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46210-05H03-YBD HANDLE,PILLION RIDER(WHITE) |
46210-05H03-YBD |
US $1,424.16 |
||
|
1
|
1
46210-05H03-YVB HANDLE,PILLION RIDER(BLACK) |
46210-05H03-YVB |
from US $637.12 |
||
|
2
|
2
09106-08151-000 BOLT(8X25) |
09106-08151-000 |
from US $1.68 |
||
|
3
|
3
09169-08049-000 WASHER |
09169-08049-000 |
from US $2.58 |
||
|
4
|
4
46271-14G00-000 CAP |
46271-14G00-000 |
from US $2.46 |
||
|
5
|
5
09320-08028-000 CUSHIONGrommet |
09320-08028-000 |
from US $2.13 |
||
|
6
|
6
09139-06168-000 SCREW(6X16)Screw, upper |
09139-06168-000 |
from US $1.82 |
||
|
7
|
7
09250-06012-000
PLUG(OD:10)
|
09250-06012-000 |
— | ||
| replacement | |||||
|
7
|
7
09250-06017-000 Plug(Od:10) |
09250-06017-000 |
from US $4.13 |
||
|
8
|
8
46215-05H50-291
COVER,BACKREST FR
|
46215-05H50-291 |
— | ||
|
9
|
9
09139-06168-000 SCREW(6X16)Screw, upper |
09139-06168-000 |
from US $1.82 |
||
|
10
|
10
46216-05H50-291 COVER,BACKREST RR |
46216-05H50-291 |
US $42.32 |
||
|
11
|
11
09148-06018-000 NUTNut, buckrest rear cover |
09148-06018-000 |
from US $1.52 |
||
|
12
|
12
46217-05H50-YBD
COVER,BACKREST RR LWR
|
46217-05H50-YBD |
— | ||
|
12
|
12
46217-05H50-YVB COVER,BACKREST RR LWR |
46217-05H50-YVB |
US $128.06 |
||
|
13
|
13
46220-05H60-AKZ BACKREST ASSY,PILLION RIDER |
46220-05H60-AKZ |
US $165.20 |
||
|
14
|
14
09320-08049-000 CUSHION |
09320-08049-000 |
from US $1.98 |
||
|
15
|
15
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
16
|
16
46250-05H50-000 BRACKET,PILLION BACKREST |
46250-05H50-000 |
US $154.56 |
||
|
17
|
17
09106-08161-000 BOLT(8X20)Bolt, panel (8x18) |
09106-08161-000 |
from US $5.92 |
||
|
18
|
18
09409-06314-5PK CLIP(BLACK) |
09409-06314-5PK |
from US $1.46 |
||
|
19
|
19
68135-14FA0-YCR EMBLEM,LIMITED |
68135-14FA0-YCR |
US $15.68 |
||
